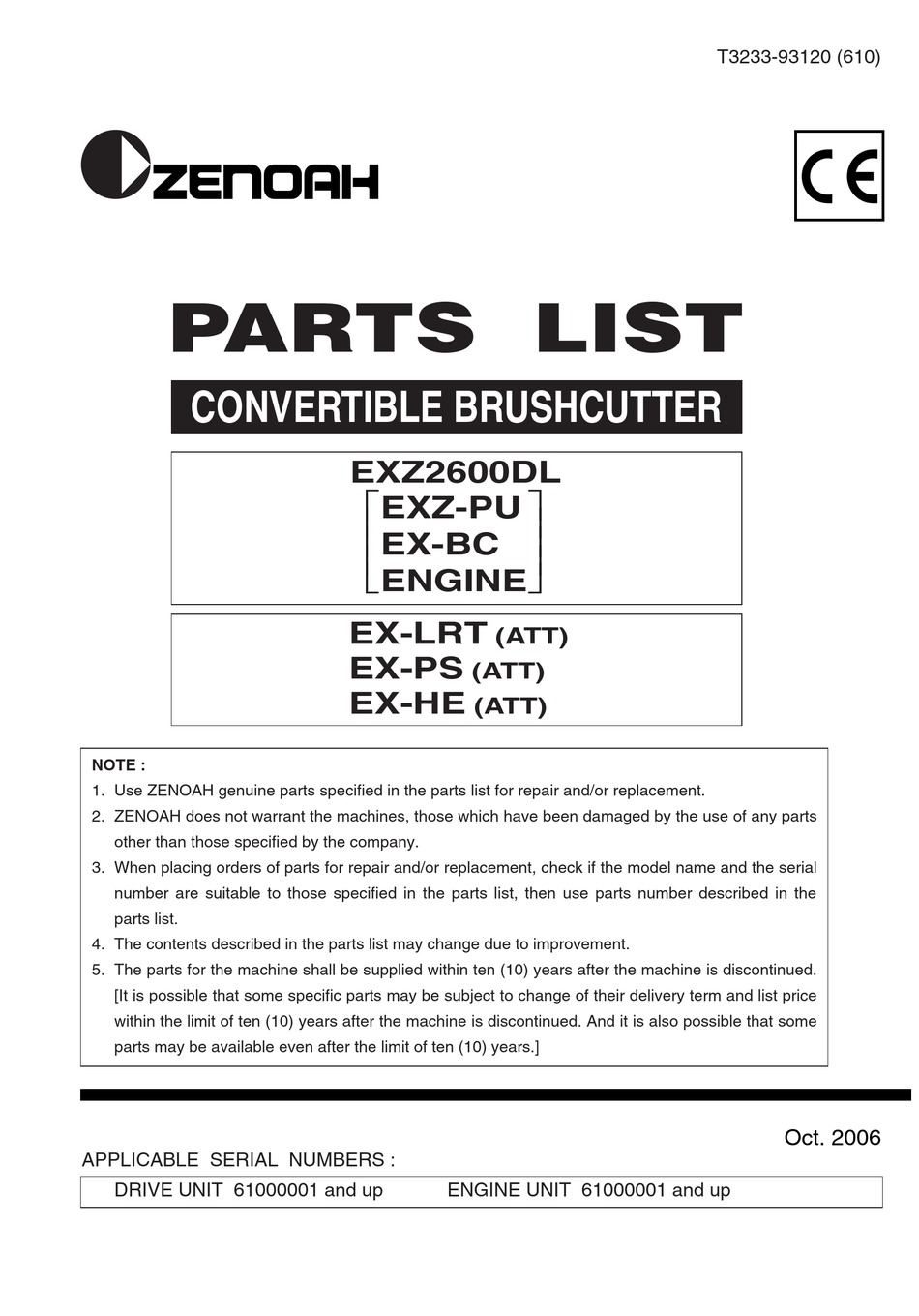

PARTS LIST
CONVERTIBLE BRUSHCUTTER
NOTE :
1. Use ZENOAH genuine parts specified in the parts list for repair and/or replacement.
2. ZENOAH does not warrant the machines, those which have been damaged by the use of any parts
other than those specified by the company.
3. When placing orders of parts for repair and/or replacement, check if the model name and the serial
number are suitable to those specified in the parts list, then use parts number described in the
parts list.
4. The contents described in the parts list may change due to improvement.
5. The parts for the machine shall be supplied within ten (10) years after the machine is discontinued.
[It is possible that some specific parts may be subject to change of their delivery term and list price
within the limit of ten (10) years after the machine is discontinued. And it is also possible that some
parts may be available even after the limit of ten (10) years.]
APPLICABLE SERIAL NUMBERS :
DRIVE UNIT 61000001 and up
EXZ2600DL
EXZ-PU
EX-BC
ENGINE
EX-LRT
(ATT)
EX-PS
(ATT)
EX-HE
(ATT)
ENGINE UNIT 61000001 and up
T3233-93120 (610)
Oct. 2006
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Zenoah EX-HE (ATT)
Summary of Contents for Zenoah EX-HE (ATT)
-
Page 1: Parts List
NOTE : 1. Use ZENOAH genuine parts specified in the parts list for repair and/or replacement. 2. ZENOAH does not warrant the machines, those which have been damaged by the use of any parts other than those specified by the company. - Page 2 EXZ2600 Fig.1 EXZ-PU...
- Page 3 Fig.1 EXZ-PU Key# PART NUMBER DESCRIPTION T3075-12100 PIPE COMP. T3075-12210 SHAFT 6036-12250 SPACER T3087-12400 JOINT, PIPE ASS’Y T3087-12600 • STOPPER COMP. T3087-12410 • JOINT 6036-12420 • KNOBBOLT 01643-30823 • WASHER 01252-30510 • BOLT 3540-13260 • BOLT T3227-11330 GRIP ASSY 6464-12210 • GRIP(R) 6464-12220 •...
- Page 4 EXZ2600 Fig.2 EX-BC...
- Page 5 Fig.2 EX-BC Key# PART NUMBER DESCRIPTION T3002-13001 GEARCASE-ASSY 6489-13110 • GEARCASE T3300-13521 • BEARING T3403-13510 • BEARING 04065-02612 • RING 3565-13130 • SEAL T3002-13210 • SHAFT 6440-13220 • GEAR T3002-13260 • NUT, M10 T3002-13310 • PINION T3300-13531 • BEARING T3403-13530 • BEARING T3300-13330 •...
- Page 6 EXZ2600 Fig.3 ENGINE UNIT...
- Page 7 Fig.3 ENGINE UNIT Key# PART NUMBER DESCRIPTION 848F3012A2 CYLINDER 4810-12210 GASKET, base 1850-12130 BOLT 4810-13162 INSULATOR 4810-13120 GASKET, insulator 4810-13130 GASKET, carburetor 0263-90520 SCREW 848F301602 REEDVALVE (S) ASS’Y 848F3016A2 • VALVECASE (S) 4810-16120 • REEDVALVE 4810-16130 • STOPPER 4810-16170 • SCREW 4810-16150 PIRE AIR (S) 848F301612 REEDVALVE (F) ASS’Y 848F3016B2 •...
- Page 8 EXZ2600 Fig.4 EX-LRT...
- Page 9 Fig.4 EX-LRT Key# PART NUMBER DESCRIPTION 6598-13110 LEVER, clamp 0290-20615 WASHER 6782-13650 WASHER 6782-13141 ANGLE ADJUSTER 0225-10612 BOLT 6782-13200 CASING A SET ––––––––– • CASING A 6782-13220 • PLATE 3199-13350 GREESE FITTING 6782-13250 LABEL 0263-10408 SCREW 6598-13320 COVER 6598-13330 SNAP RING 6782-13340 BEBEL GEAR 04065-02612 SNAP RING 06004-06000 BEARING...
- Page 10 EXZ2600 Fig.5 EX-PS...
- Page 11 Fig.5 EX-PS Key# PART NUMBER DESCRIPTION T3073-13200 GEAR CASE (R) COMP. 06002-00627 • BEARING 01252-30512 BOLT 3199-13350 FITTING T3073-13310 SCREW, tensioner T3073-13320 NUT, tensioner 01252-30630 BOLT T3073-13250 SHIM 3245-11350 BOLT T3073-13510 CHAIN COVER T3073-13520 NUT T3073-13560 WORM GEAR T3073-13550 OIL PUMP ASS’Y 0263-30410 SCREW T3073-13580 GASKET T3073-13700 OIL PIPE ASS’Y...
- Page 12 EXZ2600 Fig.6 EX-HE...
- Page 13 Fig.6 EX-HE Key# PART NUMBER DESCRIPTION 6367-13000 GEARCASE ASS’Y 6367-13110 • GEARCASE 6367-13150 • O-RING 06000-06201 • BEARING 3180-13141 • SEAL 04065-03212 • RING 3541-13212 • SHAFT 6367-13130 • GEAR 6367-13140 • PINION 06000-00609 • BEARING 06001-00609 • BEARING 04065-02412 • RING 3210-13330 •...
- Page 14 EXZ2600 Fig.7 SPECIAL TOOLS Key# PART NUMBER DESCRIPTION 3304-97611 HEXAGON WRENCH 2890-96100 PULLER ASS'Y 4810-96220 STOPPER 3350-96240 GAUGE 4500-96100 PULLER 1101-96220 ROD ASS'Y 5500-96110 PLIERS 5500-96120 ROD 5500-96130 GUIDE, ring 5500-96140 GUIDE, push Q’TY /UNIT 1 suitable for M4, M5, M6 BOLT 1 for remove ROTOR 1 for look the moving of PISTON 1 for adjust AIR-GAP...
