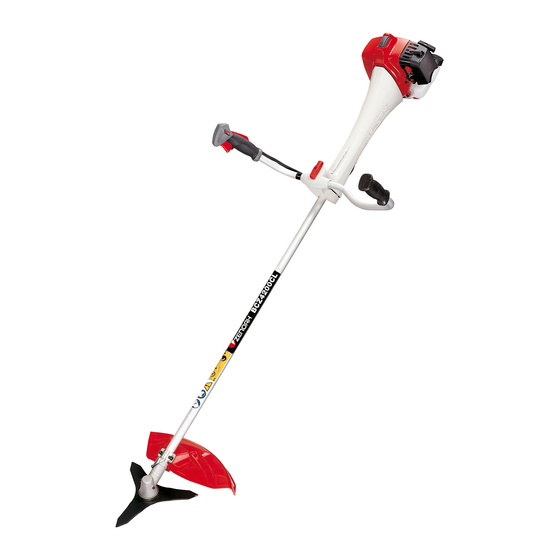

Zenoah BCZ4000DL Owner's Manual
Zenoah brush cutter owner's manual
Hide thumbs
Also See for BCZ4000DL:
- Owner's manual (16 pages) ,
- Parts list (10 pages) ,
- Owner's manual (18 pages)
Related Manuals for Zenoah BCZ4000DL
Summary of Contents for Zenoah BCZ4000DL
- Page 1 BCZ4000DL BCZ4000DW BCZ4200CL BCZ4000DL / BCZ4000DW / BCZ4200CL 848JG093A1 (712) OWNER’S MANUAL BRUSHCUTTERS GB-1...
-
Page 2: Blade
BCZ4000DL / BCZ4000DW / BCZ4200CL declare in sole responsibility that the following products referred to in this declaration conform with The products referred to are: DESIGNATION MODELS SERIAL NUMBERS The company named above will keep on file the following technical docu- mentation for any inspection purpose. -
Page 3: Table Of Contents
6. Set up ... 8 7. Fuel ... 9 8. Operation ... 10 9. Maintenance ... 13 10. Storage ... 15 11. Disposal ... 15 12. Troubleshooting guide ... 16 DW TYPE with blade BCZ4000DL / BCZ4000DW / BCZ4200CL CL TYPE with blade GB-3... -
Page 4: Specifications
GB-4 BCZ4000DL 1890 x 392 x 291 1890 x 660 x 496 Mixture (Gasoline 50 : Oil 1)(when using ZENOAH genuine oil) Diaphragm type Flywheel magneto (C.D.I.) Centrifugal type Counter-clockwise (Operator view) Never modify your machine. -
Page 5: For Safe Operation
2. Never use the product, a. when the ground is slippery or when you can’t maintain a steady posture. BCZ4000DL / BCZ4000DW / BCZ4200CL b. At night, at times of heavy fog, or at any other times when your field of vision might be... - Page 6 BCZ4000DL / BCZ4000DW / BCZ4200CL 5. For safe operation BEFORE STARTING THE ENGINE 1. The area within a perimeter of 15 m (50 ft) of the person using the product should be considered a hazardous area into which no one should enter. If necessary,...
- Page 7 BCZ4000DL / BCZ4000DW / BCZ4200CL HANDLING FUEL 1. The engine of the ZENOAH prod- uct is designed to run on a mixed fuel, which contains highly flam- mable gasoline. Never store cans...
-
Page 8: Set Up
BCZ4000DL / BCZ4000DW / BCZ4200CL 6. Set up INSTALLING HANDLE (BCZ4000DL) • Tighten the grip firmly. If the grip becomes loose, it might move while you are working, causing danger. • Do not loosen or twist the grip while you are working. -
Page 9: Fuel
3 m (10 ft) away from the fueling point before starting the engine. • The Zenoah engines are lubricated by oil specially formulated for air-cooled 2-cycle gasoline engine use. If Zenoah oil is not available, use an anti-oxidant... -
Page 10: Operation
BCZ4000DL / BCZ4000DW / BCZ4200CL 8. Operation STARTING ENGINE WARNING • The cutting head will start rotating upon the en- gine starts. 1. Feed fuel into the fuel tank and tighten the cap se- curely. 2. Rest the unit on a flat, firm place. Keep the cutting head off the ground and clear of surrounding objects, as it will start rotating upon starting of the engine. - Page 11 • BCZ4000DL, BCZ4000DW, BCZ4200CL : Be sure to use genuine parts made of Zenoah for blades. In par- ticular, never use special blades such as shredder blades. If you use a special blade, the unit may fail.
- Page 12 BCZ4000DL / BCZ4000DW / BCZ4200CL 8. Operation CUTTING METHOD (a)Use the front left side cutting. (b) Guide the blade from your right to left with it tilted slightly to your left. (c) When mowing a wide area, start working from your left end to avoid interference of cut grass.
-
Page 13: Maintenance
• Make the right and left lines the same length when using the nylon line head. (Be sure to install the genuine Zenoah debris guard when using the nylon line head.) • If the lengths of the right and left lines are different, the balance of the nylon line head will be disrupted, resulting in increased vibration and product damage. - Page 14 BCZ4000DL / BCZ4000DW / BCZ4200CL 9. Maintenance 9. Maintenance REFILLING TRIMMING LINE 1. For replacement line, use a diameter of 2.4mm(.095in). The spool is capable for a line upto 6m(20ft) on the 10cm(4”) head. Avoid using a larger line as it may cut down the trimming performance.
-
Page 15: Storage
Store the unit indoor taking necessary measures for rust prevention. 11. Disposal When disposing your machine, fuel or oil for the machine, be sure to allow your local regulations. BCZ4000DL / BCZ4000DW / BCZ4200CL (1) Cylinder (2) Intake air cooling vent GB-15... -
Page 16: Troubleshooting Guide
(exhaust port) → carbon is built-up air cleaner cylinder fin, fan cover When your unit seems to need further service, please consult with our ZENOAH service shop in your area. Limited warranty Should any failure occur on the product under normal oper-...
