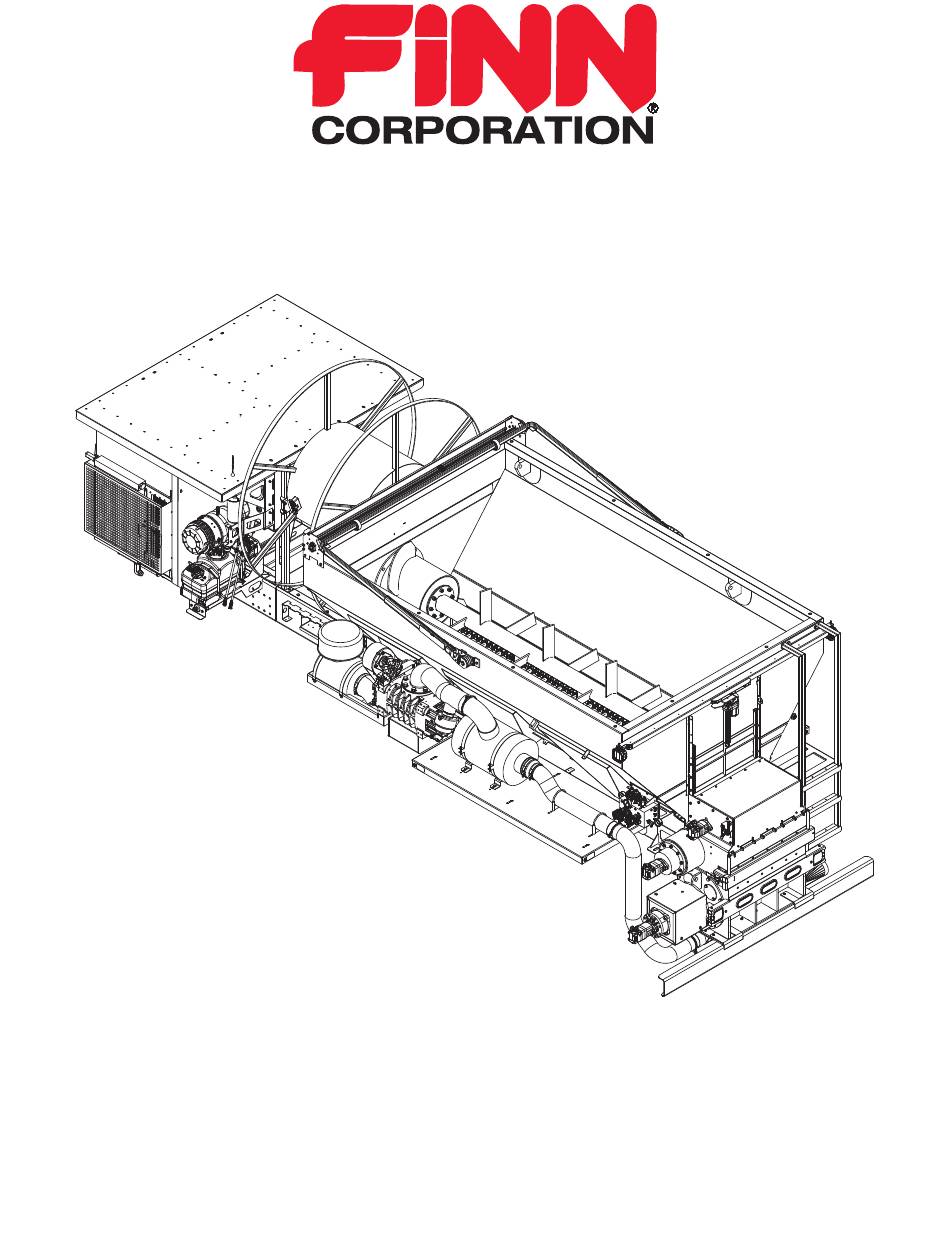

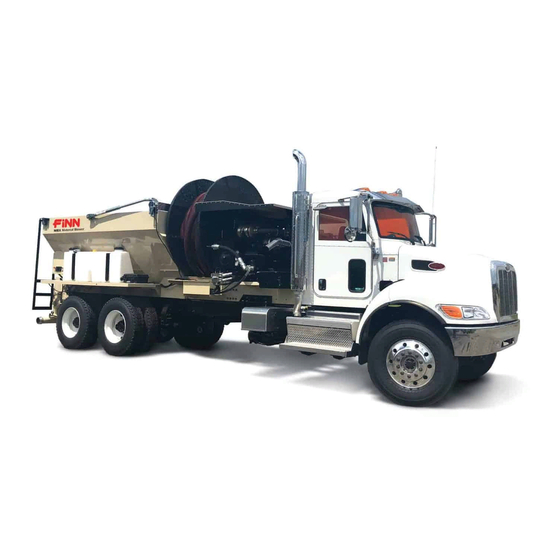

- Page 1 9281 LeSaint Drive • Fairfield, Ohio 45014 Phone (513) 874-2818 • Fax (513) 874-2914 Sales: 1-800-543-7166 Mounting Instructions Guide MBX MIG0912...
- Page 2 FOR OFFICE USE ONLY DATE UPDATE DESCRIPTION CODE 09/12/19 Initial release MR0912...
-
Page 3: Safety First
With any piece of equipment, new or used, the most important part of its operation is SAFETY! FINN Corporation encourages you and your employees to familiarize yourselves with your new equipment and stresses safe operation. Consult the operations manual and the truck manual. - Page 4 TRUCK MOUNTING / LOADING INFORMATION FRONT REAR < > CHASSIS CENTER LINE CG Y CG X USA: 101.5 EU: 99.5 AUS: 97.5 13 MIN. CG Z TRUCK MOUNT CLEARANCE ZONES ( 10 ) NOTE: MBX10 shown. MBX16 / MBX22 models not shown (mounting / loading info provided).
- Page 5 TRUCK MOUNTING / LOADING INFORMATION (CONTINUED) DESCRIPTION CG X CG Y CG Z WEIGHT MAX CAPACITY MBX10 (No Material) 146.5 in. 1.4 in. 30.0 in. 13,230 lbs. MBX10 (Full, 10 yard)* 152.5 in. 1.9 in. 29.5 in. 21,740 lbs. 8,510 lbs. MBX16 (No Material) 148.8 in.
- Page 6 TRUCK MOUNTING / LOADING INFORMATION (CONTINUED) < FRONT POSITION TRUCK MOUNTING BRACKETS IN ANY AVAILABLE KEYSLOT CONFIGURATION TO AVOID INTERFERENCE WITH TRUCK FRAME AND COMPONENTS 0.38 [ 9.5 mm ] TOP OF FRAME RAIL 3.38 [ 85.7 mm ] MATCH THROUGH HOLES: DRILL 11/16 in.
-
Page 7: Fixed Mount
TRUCK MOUNTING / LOADING INFORMATION (CONTINUED) REAR > TOP OF FRAME RAIL 3.00 [ 76.2 mm ] MATCH THROUGH HOLES: DRILL 11/16 in. [ 17.5 mm ] THROUGH 3X, BOTH SIDES --------------- 2.50 [ 63.5 mm ] FLANGED BOBTAIL FASTENERS RECOMMENDED: 16 mm -OR- 5/8 in. - Page 8 TRUCK MOUNTING / LOADING INFORMATION (CONTINUED) The front spring mount and side shift mount can be located in any available configuration to avoid interference with the truck frame and components. Some example configurations are shown below.
- Page 9 THIS PAGE LEFT BLANK INTENTIONALLY...
- Page 10 TRUCK MOUNTING / LOADING INFORMATION (CONTINUED) TORQUE ALL FASTENERS TO 357 ft./lb. ( 484 N-m )
- Page 11 TRUCK MOUNTING / LOADING INFORMATION (CONTINUED) TRUCK MOUNTING KIT Ref. Part Number Description Req’d A3450-001 Bracket Assembly, Lower Truck Mount A3447-001 Bracket Assembly, Upper Truck Mount A3462-001 Bracket Assembly, Truck Mount Stop 011563 Spring - Compression, Truck Mount A3448-001 Square Washer, Truck Mount A3453-001 Tube, Spring Spacer ...
- Page 12 MBX MIG0912...
