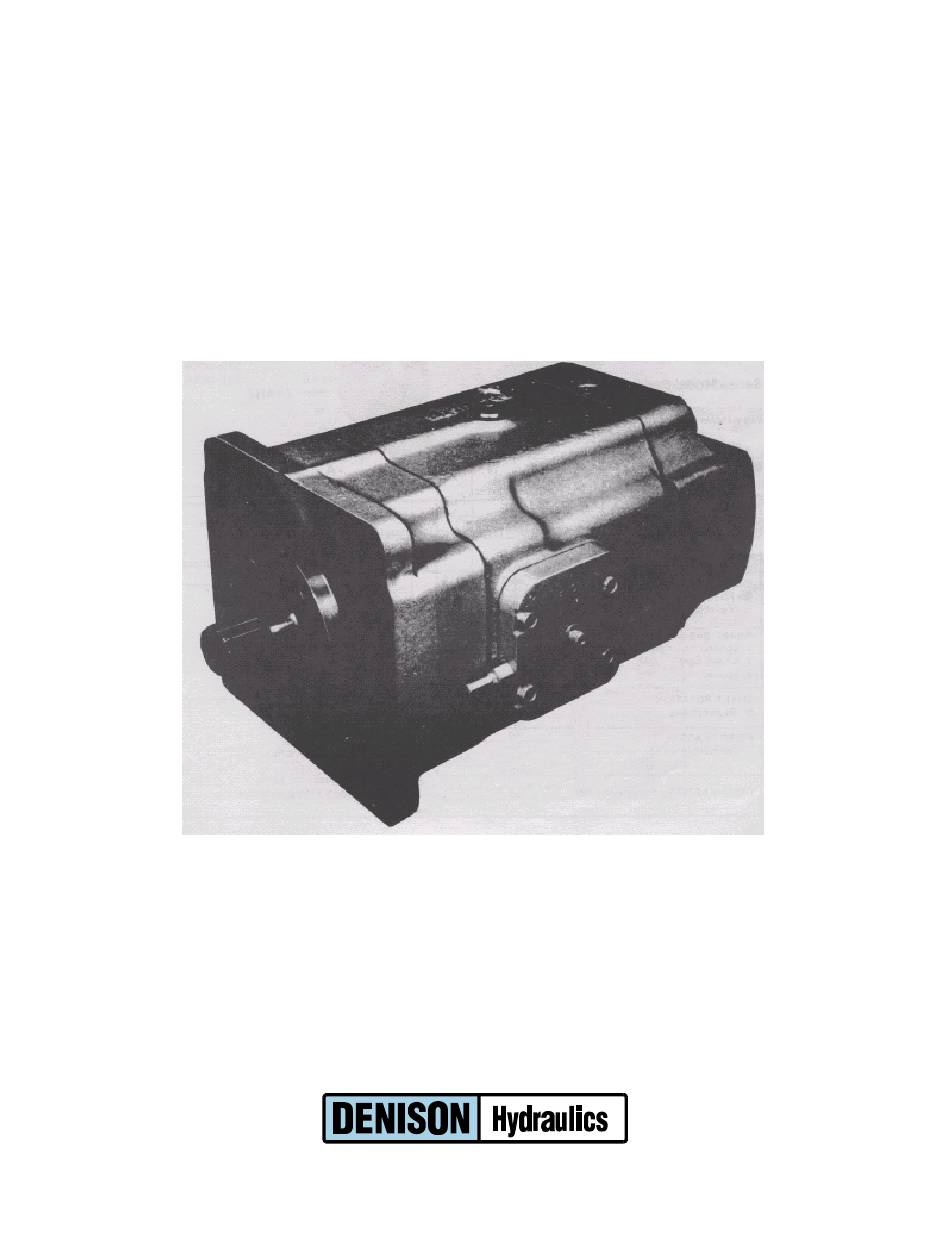

- Page 1 DENISON HYDRAULICS Axial Piston Motor Variable Displacement Installation and Overhaul Instructions Goldcup Series M11 Goldcup Series M14 SVM-M11/M14-D Revised 7/03 www.comoso.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE Introduction----------------------------------------------------------------------------------------------------------------------------------- 3 Installation Mounting--------------------------------------------------------------------------------------------------------------------------------------- 4 Piping------------------------------------------------------------------------------------------------------------------------------------------- 4 Fluid recommendation & maintenance------------------------------------------------------------------------------------------------- 4 Start-Up Procedures------------------------------------------------------------------------------------------------------------------------ 4 Table II: Troubleshooting------------------------------------------------------------------------------------------------------------------ 6 Rework limits--------------------------------------------------------------------------------------------------------------------------------- 7 Disassembly Controls---------------------------------------------------------------------------------------------------------------------------------------- 8 Barrel holddown------------------------------------------------------------------------------------------------------------------------------ 8 Port block-------------------------------------------------------------------------------------------------------------------------------------- 8 Barrel and holddown shaft---------------------------------------------------------------------------------------------------------------- 8 Drive shaft------------------------------------------------------------------------------------------------------------------------------------- 8 Housing---------------------------------------------------------------------------------------------------------------------------------------- 8 Rocker cam and control stroking assembly------------------------------------------------------------------------------------------- 9... -
Page 3: Introduction
INTRODUCTION GENERAL The Denison Goldcup series 11 and 14 axial piston motors feature advanced design concepts which are time proven and aid in providing smooth controlled power in a compact package. The instructions contained in this manual cover installation, maintenance and repair of the Goldcup series motors. Before proceeding with the disassembly or reassembly of any unit, study this manual to become familiar with the basic fit and function of the internal parts. -
Page 4: Installation
INSTALLATION MOUNTING The mounting hub and four bolt mounting flange conform to SAE-E configuration. The motor must be mounted on a base or bracket of sufficient strength to support the unit without flexing or movement. It is recommended that a dial indicator be used when checking alignment. The concentricity of the pump shaft and driven load shaft must not exceed .010”... - Page 5 INSTALLATION (continued) Cycle unloaded equipment at low speed and pressure. Observe for proper function of all components. Bleed system of any trapped air. Re-check fluid level and fill as necessary. Gradually increase speed and pressure settings. Be alert for leaks, particularly in pump and motor inlet lines, as these may cause cavitation and eventual pump failure.
- Page 6 TABLE II TROUBLESHOOTING CHART TROUBLE SHOOTING Component problems and circuit problems are often inter-related. An improper circuit may operate with apparent success but will cause failure of a particular component within it. The component failure is the effect, not the cause of the problem. This general guide is offered to help in locating and eliminating the cause of problems by studying their effects.
-
Page 7: Rework Limits
TABLE II TROUBLESHOOTING CHART (continued) EFFECT OF TROUBLE POSSIBLE CAUSE FAULT WHICH NEEDS REMEDY Pressure shocks Cogging load Mechanical considerations Worn relief valve Needed repairs Servo pressure too low to maintain firm Increase pressure and check pressure control drop through servo filter Excessive line capacitance (line volume, Reduce line size or lengths. -
Page 8: Controls
UNIT DISASSEMBLY The instructions contained in this section cover complete disassembly of the Denison Goldcup 11 and 14 motors. Disassemble only as far as necessary to replace or repair any worn parts. A clean bench or similar surface capable of supporting unit should be used. After disassembly, internal parts should be coated with a film of clean oil and protected from dirt and moisture. -
Page 9: Rocker Cam And Control Stroking Assembly
UNIT DISASSEMBLY (continued) ROCKER CAM AND CONTROL STROKING ASSEMBLY (Figure 4) Remove pressure feed tubes (5 and 6) from the cradle. DO NOT BEND THESE LINES. Remove the assembly from the mounting flange and position on a clean surface with the override tubes (2) in a horizontal position and located at the top. -
Page 10: Drive Shaft Assembly
ASSEMBLY PROCEDURES DRIVE SHAFT ASSEMBLY Figure 1 Pass one retaining ring (3) over the internal end of drive shaft (1) and install in the groove near the shaft seal surface. DO NOT PASS THE RING OVER THE SEAL SURFACE. Slide the bearing (2) over the same end of the shaft and seat against the ring. Support only the inner race of the bearing and press on the coupling end of the shaft. -
Page 11: Rocker Cam And Stroking Assembly
ASSEMBLY PROCEDURES ROCKER CAM ASSEMBLY (Figure 2 Position the rocker cradle (19) on a clean surface with the large flat side down. Lightly oil curved surface of cradle. Position the rocker cam (22) on the cradle. Note the marks made during disassembly indicating the top of the rocker cam and cradle. VANE SEAL CARTRIDGES (Figure 2) Install O-ring (25c) on spacer (25d) and insert in the vane seal (25b). -
Page 12: Servo Assembly
ASSEMBLY PROCEDURES SERVO ASSEMBLY (Figure 2) Install two #10-32 differential screws (9) in the servo plate (10) from the inside. Allow the screws to extend 11/64” through the plate. Install two orifice screws (7) in the servo stem (6). Install servo stem on rocker cam using #10-32 screws (8). Torque to 70 in. lbs. Install servo plate with the long end of the differential screws through the servo stem. - Page 13 ASSEMBLY PROCEDURES PARTS LIST FOR FIGURE 2 Qty. Part No. Description Retaining ring – use one only 033-71556 107 – 108 thick w/yellow dot 033-71557 105-106 thick w/green dot 033-71558 103-104 thick w/red dot 033-71559 101-102 thick w/blue doe 033-71565 Thrust washer 033-71563 Bearing...
- Page 14 ASSEMBLY PROCEDURES www.comoso.com...
-
Page 15: Barrel And Holddown Shaft Assembly
ASSEMBLY PROCEDURES BARREL AND HOLD-DOWN SHAFT ASSEMBLY (Figure 3) Position the barrel (1) with the bores facing down on a clean surface. Install hold-down spring (3) into barrel counter-bore. Install spring retainer (5) into counter-bore and seat against spring. Install retaining ring (6) into barrel counter- bore groove. -
Page 16: Barrel And Stroking Assembly To Mounting Flange
ASSEMBLY PROCEDURES BARREL AND STROKING ASSEMBLY TO MOUNTING FLANGE (Figure 4) Install straight thread connectors (3) and O-rings (4) into threaded holes in cradle. Install right and left hand pressure feed tubes (5 and 6) to connectors (3). Tighten connectors until snug. -
Page 17: Housing Assembly
ASSEMBLY PROCEDURES S13-43962 HOUSING ASSEMBLY (Figure 5) Position housing (1) on a flat surface with the large open end up. Press the bearing (2) into the housing bore until seated. DO NOT HAMMER OR BEAT BEARING INTO PLACE. Position housing on side and install roll pin (3) through hole in control cover pad. Roll pin must be installed 3/8”... -
Page 18: Housing Assembly Installation
ASSEMBLY PROCEDURES HOUSING ASSEMBLY INSTALLATION (Figure 6) Install face plate pins (1) in the holes provided in the barrel face. Apply heavy grease to the surface of the barrel and install the face plate (2) over the face plate pins. CAUTION: The face plate must be fully seated on the barrel face and pins with the steel side towards the barrel. -
Page 19: Port Block Installation
ASSEMBLY PROCEDURES PORT BLOCK INSTALLATION (Figure 7) Position the motor with the unplugged hole in the housing assembly (6) facing up. Install gasket (5) on the housing. Install two dowel pins (3) in the face of the port block assembly (2). Apply heavy grease to the rear of the port plate (4) and install over the dowel pins. - Page 20 ASSEMBLY PROCEDURES www.comoso.com...
- Page 21 ASSEMBLY PROCEDURES www.comoso.com...
-
Page 22: Shaft Assembly
ASSEMBLY PROCEDURES SHAFT ASSEMBLY INSTALLATION (Figure 9) Position motor in horizontal position. Remove the two screws that were temporarily used to hold the cradle in the mounting flange. Install the shaft and bearing assembly (1) in the mounting flange. For a rigid shaft application use the shim (2) that results in the least clearance around the shaft bearing. -
Page 23: Control Cover Assemblies
ASSEMBLY PROCEDURES PARTS LIST FOR FIGURE 9 Qty. Part No. Description 513-43968 Splined shaft assy. See fig. 1 513-43696 Keyed shaft assy. See fig. 1 033-53983 Or 033-53984 Shim (use only one) 356-65013 Retaining ring 623-00008 Shaft seal 033-71567 Seal retainer gasket 033-71574 Seal retainer 631-45007... - Page 24 ASSEMBLY PROCEDURES www.comoso.com...
-
Page 25: Shuttle Valve Assembly
ASSEMBLY PROCEDURES SHUTTLE VALVE ASSEMBLY Internal Drain Place valve assembly (20) in a horizontal position with the O-ring groove up. Press seat (11) in the .500” diameter bore until it is flush with the body surface. Install spool (5) in body bore. Lubricate parts with hydraulic fluid. Install spring centering washer (4) over each end of spool. - Page 26 ASSEMBLY PROCEDURES S13-48273 ASSEMBLY, SHUTTLE VALVE Item Qty. Part No. Description 488-35002 Plug 691-00908 O-ring 033-70515 Spring 033-70495 Washer, Spring Centered 033-70529 Spool 033-53117 Body 033-72129 Plug 691-00906 O-ring 033-71923 Spring, Relief Valve 033-71925 Spool, Relief Valve 033-53154 Seat Not Shown Not Shown 345-20004 Shim Washer...
-
Page 27: Ordering Code
ORDERING CODE Gold Cup motors Model number sheet Example mod el code: M 11 Motor Displacement 6.00 cu.in./rev. (98 cc/rev.) 7.25 cu .in./rev. (119 cc/rev.) 8.00 cu .in./rev. (131 cc/rev.) 11.0 cu .in./rev. (180 cc/rev.) 14.0 cu .in./rev. (229 cc/rev.) 24.6 cu .in./rev. - Page 28 ORDERING CODE Gold Cup motors Model number sheet Example model cod e: M 11 -9 A Control l ocation None (for fixed displacement units only) omit Primary control on port A side Primary control on port B side Control and di s placement features 2M control 4D01 valve, 110VAC/60Hz with Hirschmann connector 4D01 valve, 12VDC with Hirschmann connector...
- Page 29 Tel : +1 (305) 362-2246 Taipei, Taiwan, ROC Fax : +44 (1924) 826 146 Fax : +1 (305) 362-6220 Tel : +886-2-23645101 Fax : +886-2-23639025 For more information, please contact: © Copyright 2002 Denison Hydraulics Inc. All rights reserved. 4-30-02 www.comoso.com...
