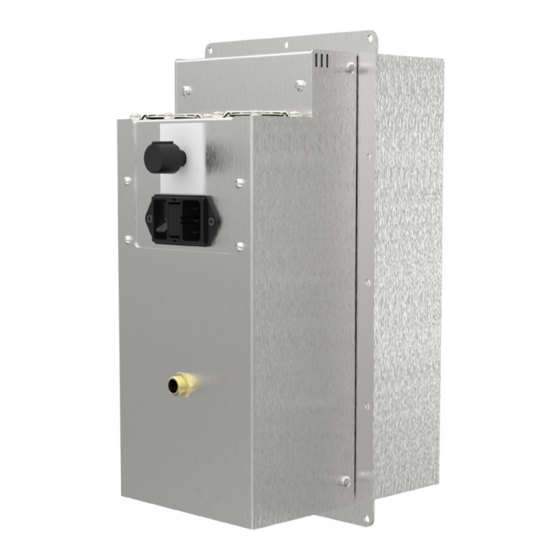

- Page 1 EIC SOLUTIONS, INC Thermoelectric Air conditioner installation and operation manual FOR 400 Btu MODEL #’S AAC-140C-4XT AAC-140C-4XT-HC AAC-140C-4XT-XXXXX Cooling Solutions for Mission-Critical Electronics -800-497-4524 WWW.EICSOLUTIONS.COM 215-443-5190...
-
Page 2: Table Of Contents
INSTALL THE DRIP PAN ..............................APPLY POWER ..................................3. OPERATION THERMOSTAT SET POINTS AND HEATING COOLING UNITS ............... MAINTENANCE ..................................4. APPENDIX ......................................10 EIC SOLUTIONS INC. 700 VETERANS WAY, SUITE 200 WARMINSTER, PA 18974 PHONE 1-215-443-5190 or 1-800-497-4524 FAX 215-443-9564 EMAIL info@eicsolutions.com VISIT US ON THE WEB AT www.eicsolutions.com. -
Page 3: General Information
Your EIC Solutions Thermoelectric Air Conditioner operates on this principle so there is no compressor and no expensive, ozone depleting CFC’s. EIC’s air conditioners use Thermoelectric “modules”... -
Page 4: Installation
2. INSTALLATION 2.1 CHOOSING A LOCATION ON YOUR ENCLOSURE When choosing a mounting location for your unit, be sure to keep air flows of both the interior and exterior heatsinks and fans in mind. Adequate clearance between the fans/heatsinks and nearby surfaces is required for unrestricted air flows which will ensure optimal performance and long, trouble free operation. - Page 5 FIGURE 2.1 FIGURE 2.2 -800-497-4524 WWW.EICSOLUTIONS.COM 215-443-5190...
-
Page 6: Preparing The Enclosure
2.3 PREPARING THE ENCLOSURE To mount the 400 Btu unit you will need to cut an opening in your enclosure and drill mounting holes. Cut out drawings showing the cut-out size, hole locations, and hole sizes have been included in this manual (see Appendix). The instructions for installing the air conditioner are printed below. -
Page 7: Installing The Air Conditioner
6. Remove the two starter screws and place a nylon washer on each and reinstall. 7. Tighten all screws. INSTALL THE DRIP PAN 1. Two hose fittings were provided with the drip pan, a right angle and a straight fitting. Choose one and install it on the drip pan. -
Page 8: Operation
3. OPERATION 3.1 THERMOSTAT SET POINTS AND HEATING/COOLING UNITS SETTING THE THERMOSTAT Your EIC air conditioner is equipped with an adjustable thermostat. The set point you choose should be based on the desired internal temperature of the enclosure in degrees Fahrenheit. - Page 9 Keeping the hot side heat sink fins free from any insulating build-up of dirt or dust will ensure long, trouble-free operation of your air conditioner. NEVER EXPOSE THE COLD SIDE OF THE AIR CONDITIONER (INSIDE THE ENCLOSURE) TO WATER. If you have any questions about any aspect of your EIC air conditioner, don’t hesitate to call us at the numbers listed below.
-
Page 10: Appendix
Appendix A 0.175 0.175 5.250 2.800 3.000 11.250 3.000 2.800 2.800 2.800 Enclosure Cutout for 400 BTU Air Conditioner STANDARD FRAME HOLES TO BE 8-32 TAP -800-497-4524 WWW.EICSOLUTIONS.COM 215-443-5190... - Page 11 Appendix B Enclosure cutout for 400 BTU air conditioner WITH EXTENSION FRAME OPTION. HOLES TO BE .203” -800-497-4524 WWW.EICSOLUTIONS.COM 215-443-5190...
