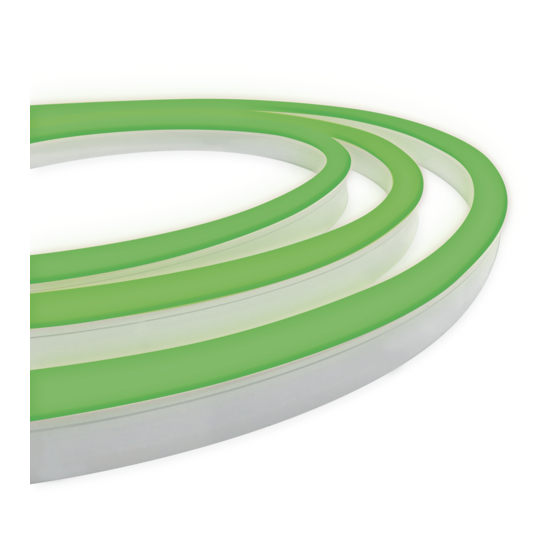

For Installation of NEON ARC Continuous LED Solution IP67 (24VDC)
NEON ARC │ELECTRICAL AND PHYSICAL INSTALLTION GUIDE
Please note drawings are an installation guide only. Each LED tape application may have variable factors. Cable size may need to be specified to limit the voltage drop throughout the circuit.
Actual product characteristics may vary. Ligman Lighting reserves the right to improve, modify or update the product designs without prior notice.
17
16
COLOUR
NEON SERIES
WARM WHITE
NEON 1
3000K
+/- 175K
NATURAL WHITE
NEON 1
4000K
+/- 275K
2500 - 5000K
NEON 2
TUNEABLE WHITE
RGB
NEON 3
RGBW
NEON 4
RGB DYNAMIC
NEON 18
ELECTRICAL & OPTICAL DATA VARIANCE +/- 10%
SOLD BY THE METRE
IES FILES AVAILABLE
24VDC
M ITNO1230001067-VB/16/12/19/REV.0
MINIMUM
BEND RADIUS
150mm
VERTICAL BENDING
VARIANT CODE
ITNO1230001067-VB
ITNO1240001067-VB
ITNO12TUW01067-VB
ITNO12RGB00567-VB
ITNO15RGBW0567-VB
ITNO16RGB00567-HB
ALWAYS UNCOIL BEFORE USE
IP67
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LIGMAN NEON Series
Summary of Contents for LIGMAN NEON Series

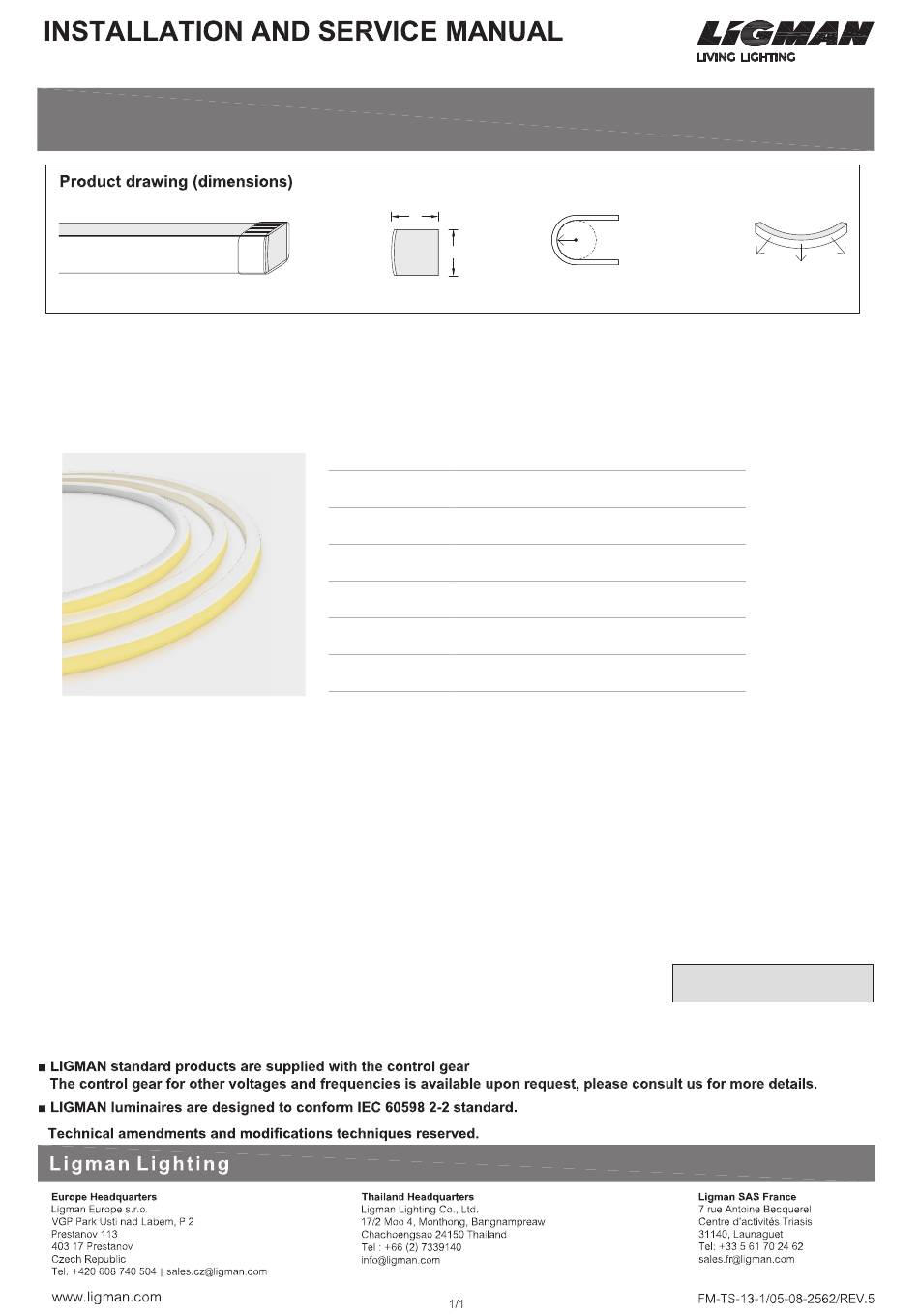

- Page 1 Please note drawings are an installation guide only. Each LED tape application may have variable factors. Cable size may need to be specified to limit the voltage drop throughout the circuit. ALWAYS UNCOIL BEFORE USE Actual product characteristics may vary. Ligman Lighting reserves the right to improve, modify or update the product designs without prior notice. 24VDC...
- Page 2 BENDING PARAMETERS DO NOT TWIST THE LIGHT OR BEND NEON ARC CAN BE CURVED AGAINST THE LIGHT SURFACE AS SHOWN BELOW LIGHT SURFACE LIGHT SURFACE - Avoid bending LED Neon within the first unit (units are - LED Neon can be bent upto the defined clearly marked with dashed lines on the sides of the product) “minimum bend radius”...
-
Page 3: Wiring Diagrams
WIRING DIAGRAMS WHITE red wire: + POWER SUPPLY DIMMER 24V DC optional black wire: - TUNEABLE WHITE red wire: + yellow wire: Warm White connection (-) 2-CHANNEL POWER SUPPLY CONTROL 24V DC black wire: Cool White connection (-) yellow wire: + red wire: “R”... - Page 4 PROFILE INSTALLATION REQUIREMENTS Ensure the supply cord is not subject to mechanical stress – – – Avoid placing mechanical stress on the front connector cable – Do not curl or bend the front connector cable with excessive force – PULL –...
- Page 5 NEON ARC | CONNECTIONS SNAP CONNECTIONS - IP67 SUITABLE FOR OUTDOOR APPLICATIONS MUST BE FITTED CORRECTLY FOR IP67 RATING FEED CONNECTORS SUPPLIED AS 1M CABLE STANDARD, CHECK WITH BRIGHT LIGHT FOR ALTERNATE LENGTHS TOP END FEED END CAP FLEXIBLE CONNECTOR WHITE TUNEABLE RGB CHASING...
- Page 6 NEON ARC | CONNECTIONS SLIMLINE INJECTION MOULDING CONNECTIONS - IP67 REQUIRES FITTING AT FACTORY. LEAD TIMES APPLY SUITABLE FOR OUTDOOR APPLICATIONS FEED CONNECTORS SUPPLIED AS 1M CABLE STANDARD, CHECK WITH BRIGHT LIGHT FOR ALTERNATE LENGTHS SIDE FEED BOTTOM TOP END MIDDLE FEED END CAP FLEXIBLE...
-
Page 7: Bottom Feed
NEON ARC | CONNECTIONS CAPPED DUAL INJECTION MOULDING - IP68 REQUIRES FITTING AT FACTORY. LEAD TIMES APPLY SUITABLE FOR OUTDOOR APPLICATIONS FEED CONNECTORS SUPPLIED AS 1M CABLE STANDARD, CHECK WITH BRIGHT LIGHT FOR ALTERNATE LENGTHS SIDE FEED BOTTOM FEED TOP END FEED END CAP FLEXIBLE CONNECTOR... - Page 8 NEON ARC | MOUNTING ACCESSORIES HOLE HOLE ACCESSORY DIMENSIONS NUMBER SELF-LOCKING ALUMINIUM PROFILE 2m 100mm 200mm Ø3.5mm SELF-LOCKING ALUMINIUM V2 MOUNTING CLIP 35mm 25mm Ø3.5mm PLASTIC PROFILE 2m 100mm 200mm Ø3.5mm PLASTIC PROFILE 1m 100mm 200mm Ø3.5mm 20.5 20.7 SELF-LOCKING ALUMINIUM SELF-LOCKING ALUMINIUM PLASTIC PROFILE 2M PROFILE...
