Zebra MIX05120 Installating And Operation Manual

FM60-2105 Operator's Manual
Zebra Skimmers Corp.

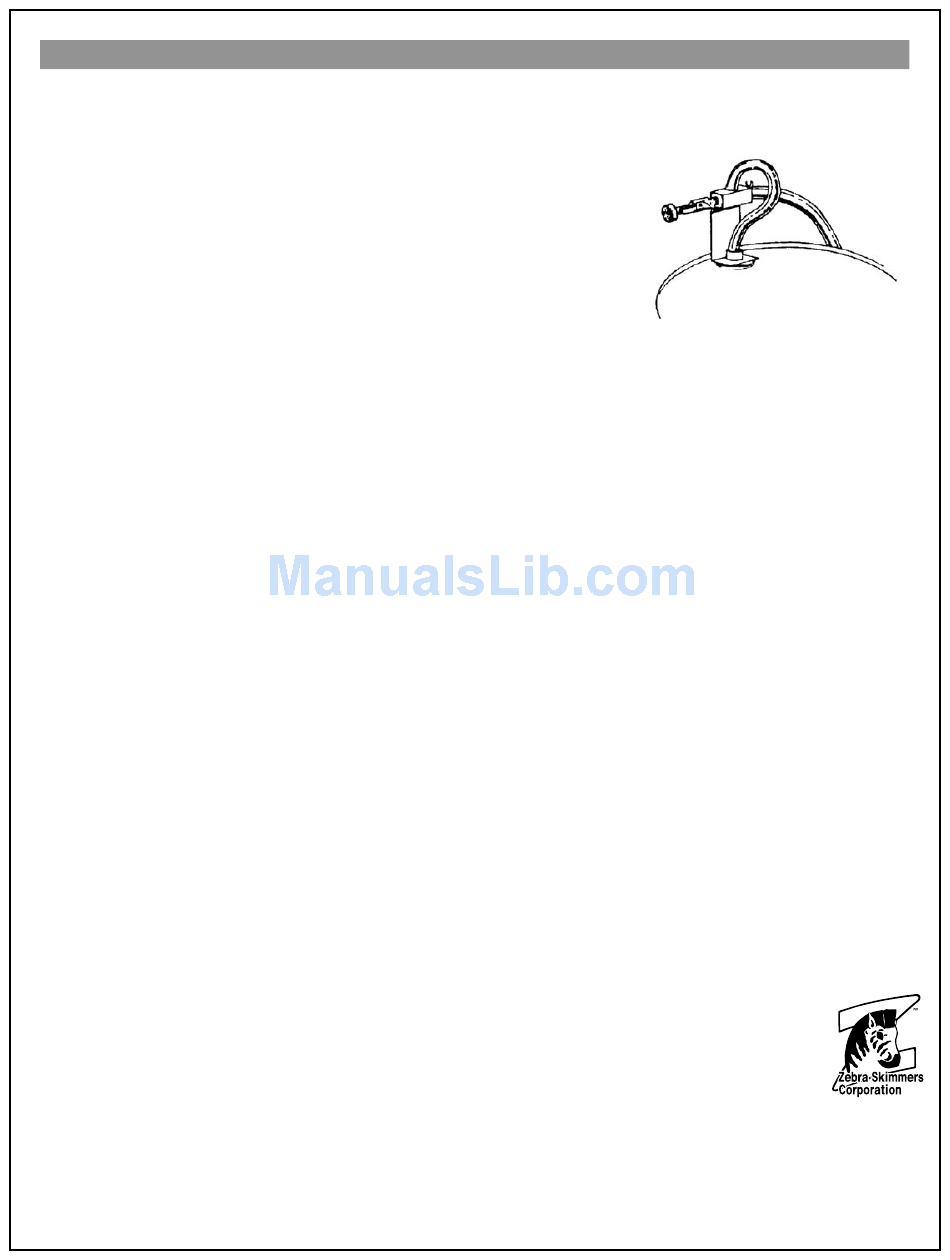

Zebra Economy Mixer Manual

Package Contains:

1. Drum proportioner
2. Suction tube (4 ft.) with foot valve
3. Discharge tube (4 ft.) max length
for delivery
THANK YOU FOR YOUR SUPPORT OF OUR PRODUCTS
Please use this equipment carefully and observe all warnings and cautions.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - NOTE - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
WEAR
protective clothing and eyewear when dispensing chemicals or other materials.
ALWAYS
observe safety and handling instructions of the chemical manufacturers.
ALWAYS
direct discharge away from you or other persons or into approved containers.
ALWAYS
dispense cleaners and chemicals in accordance with manufacturer's instructions. Exercise CAUTION when maintaining your equipment.
CLEAN
equipment after each use in accordance with instruction sheet.
WEAR
protective clothing and eyewear when working in the vicinity of all chemicals, filling or emptying equipment or changing metering tips.
ALWAYS
re-assemble equipment according to instruction procedures. Be sure all components are firmly screwed or latched into position.
ATTACH
only to tap water outlets (75 PSI maximum).

Installation and Operation:

1. Select a metering tip (see next section), and insert it into the suction stub. Slide the open end of the suction tube through the
bung adaptor, then over the suction stub.
2. Slide end of discharge tube over the eductor discharge outlet.
3. Remove either the 3/4 or 2-inch bung from an upright drum.
4. Insert the foot valve end of the suction tube into the drum.
5. Swivel the drum adapter several turns in the bung opening until the bracket is secure.
6. Install minimum 1/2-inch ID water hose between the inlet swivel and water supply spigot. (Minimum 25 PSI flowing water
pressure is required to operate the unit.)
7. Turn on water supply. To begin dispensing solution, open ball valve at inlet to unit. Do not keep discharge hose in liquid! The
concentrate will siphon from the container.

Metering Tip Selection:

The final concentration of the dispensed liquid is related to both the size of the metering tip opening (orifice) and the
viscosity of the liquid being siphoned. If product viscosity is noticeably greater than that of water, consult the procedure for
Measurement Of Concentration on the next page to achieve your desired water-to-product ratio. For waterthin products, use
the chart below as a guideline. Because such factors as inlet water pressure and temperature can affect dilution ratios, the
figures listed below are only approximate. Test the actual dilution you are achieving using the Measurement of Concentration
procedure for best results. Two undrilled, clear tips are supplied for drilling sizes not listed.
Tip Color Drill Size
No tip
Gray 30
Black 40
Beige 50
Red 55
White 57
Blue 60
Tan 65
Green 70
Orange 72
Brown 74
Yellow 76
Purple 80
Pink 87
888-249-4855 • www.ZebraSkimmers.com • Zebra Skimmers Corporation
®
4. Metering tip kit (14 tips)
5. Product information sheet
Decimal Approximate Dilution Ratio at
Equivellent 40 PSI, water-thin viscosity (1.0 cp)
4.5:1
.1285 5:1
.0980 6:1
.0700 9:1
.0520 20:1
.0430 24:1
.0400 26:1
.0350 31:1
.0280 50:1
.0250 70:1
.0225 90:1
.0200 100:1
.0135 200:1
.0100 400:1
or 22.2%
20.0
16.6
11.1
5.0
4.16
3.84
3.23
2.0
1.43
1.11
1.0
.50
.25
Registration Information
MIX05120
Copyright 2008
Zebra Skimmers Corp.
PO Box 833
Chagrin Falls, OH 44022
888-249-4855
www.ZebraSkimmers.com
Printed in the USA • Revised February 2008
Page 1
