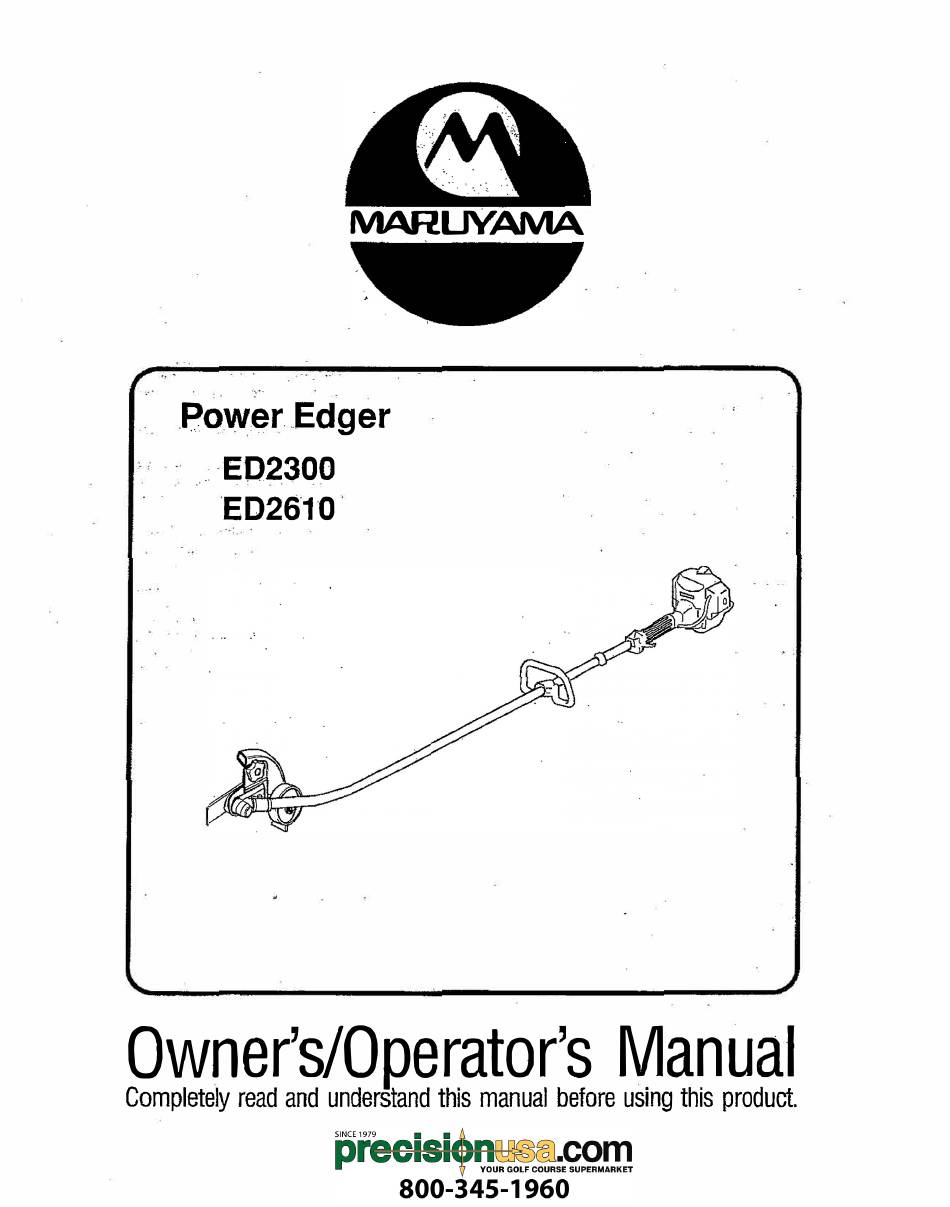

Summary of Contents for Maruyama ED2300
-
Page 2: Limited Warranty Statement
Any warranted part which is scheduled for replacement as required maintenance .�hall be warranted for the period of time up to the first scheduled replacement point for that part.• Maruyama 'lylfg. Co., Inc. is liable for damages to other engine components caused by the failure of warranted part still under warranty. - Page 3 PIN 221771 Multi-Cutter MC2300, MC2610, MC3210 (Page 24: MC-E) P/N 221946 Power Edger ED2300,ED261D (Page Lubricate drive shaft each 30 Add--+- hours of use • . ONSHAFT (Part No. 223926) PIN 221771 Multi-Cutter MC2300, MC2610, MC3210 (Page 26: MC-HT) P/N 222224 Power Hedge Trimmer EHT23D0D, EHT2600D (Page...
-
Page 4: California Emission Control Warranty Statement Your Warranty Rights And Obligations
U.S. EPA standards for the first two years of eng ine use from the date of sale to the ulti m ate purchaser. Maruyama Manufacturing Company, Inc. must warrant the emission cont r ol system on your utility/lawn/garden equi p ment engine for the period of time l isted above provided there has been no abuse, neglect or improper maintenance of your utility/lawn/garden equipment engine. - Page 5 Maruyama Manufacturing Company, Inc. is liable for damages to other engine components caused by the failure of a warranted part still under warranty.
- Page 6 This Emission Control System Warranty shall not cover any of the following: (a) repair or replacement required because of misuse or neglect, lack of required maintenance, repairs improperly performed or repl a cements not conforming to Maruyama Manufacturing Company, Inc. specifications that adversely affect performance and/or durability, and alter...
-
Page 10: Safety And Instruction Decals
11. Use the right tool for the job. Do not use the other protective safety devices in place. Edger for any job that is not recommended by Maruyama. Do not put hands or feet near or under any rotating parts. Keep clear at times. -
Page 12: Assembling Engine And Drive Shaft Assembly
The drive shaft, clutch drum housing and gearcase are assembled. Attach the clutch drum housing to the engine using the four M5 x 20 screws supplied with the unit. Slip the rubber sleeve arou nd the sliaft approxi mately 9 inches (22.8 cm) from the md of the stop switch/throttle trigger assembly for an initial han... -
Page 13: Connecting Stop Switch Wires
Install the plastic tube (packed with the drive shaft assembly) around the throttle cable . a nd stop switch wires. With the air cleaner cover removed, insert the Loosen the knob and remove the air cleaner cover throttle cable through the cable adjuster sleeve on to access the stop switch wires. -
Page 16: Mixing Gasoline And Oil
Only nse a two-cycle engine oil formulated for use in SUCH AS MARUYAMA'S STABILIZER/ high-performance, air-cooled two-cycle engines. CONDITIONER OR A SIMILAR PRODUCT. Maruyama brand 2-cycle oil is formulated for use in MARUYAMA'S STABILIZER/CONDITION high-performance, air-cooled two-cycle engines. ER IS A PETROLEUM DISTILLATE BASED CONDITIONER/STABILIZER. -
Page 17: Starting And Stopping
Fill the tank only to within l/4-1/2inch (6 mm-13 mm) from the top of the tank. Avoid filling to the top of the tank filler neck. eugine and can cause damage. Fill the fuel tank as instructed in the Before Operation section of this manual. -
Page 19: Operation
Edger irmnediately! • When engine is running, Edger blade is rotating and other parts are moving. Contact your . l ocal authorized Maruyama Dealer for • Contact with rotating Edger blade or assistance and servicing. other.moving parts could cause serious personal injury or death. -
Page 21: Setting Depth Of Cut
Setting Depth of Cut Air Filter Cleaning IMPORTANT: Set the depth of cut before you start the engine. Loosen the knob holding the shield to the plate. Rotate the shield as necessar y to set the depth of cut. Note that: •... -
Page 22: Spark Plug
Reinstall the air filter cover and ti g hten the knob. • The s p ark p lu g should be removed from the engine and checked after e a ch 25 hours of o p era tion. The fuel filter should be r ep laced after every 100 hours •... - Page 23 Clean all dirt and debris from the· cooling fins and from around the cylinder base. Reinstall the cylinder and air cleaner covers. The cy Under cooling fins should be cleaned after every 25 hours of operation, or once a week, whichever comes first.
-
Page 24: Maintenance Interval
Exhaust Muffler (Model: ED2610) [Model: ED2300] Maintenance Interval The muffler should be inspected and cleaned after each 100 honrs of use. Muffler Maintenance Tail With the engine at ambient (room) temperature, loosen the knob and remove the air cleaner cover. -
Page 25: Flexible Drive Shaft Maintenance
The Edger uses a flexible drive shaft inside the drive The gearcase should be checked for lubrication after shaft tube. The flexible drive shaft should be lubricated each 30 hours of use. after each 30 hours of use. Loosen the two Phillips hex head screws holding the gearcase to the drive shaft tube and carefully remove the gearcase from the drive shaft tube. - Page 26 WHAT CAN HAPPEN • Oil can cause eye injuries. The Maruyama Edger will provide maximum perfor HOW TO AVOID THE HAZARD mance for many, many hours if it is maintained proper • Protect your eyes and keep your face ly.
-
Page 27: Troubleshooting
Engine Lacks Power or Stalls When Thro1tle wire has come loose lighten throttle wire Cutting Dirty air filter Clean or replace air filter If further assistance is required, contact your local authorized Maruyama service dealer. Specifications ED2300 ED2610 Weight 14.1 lbs. (6.4 kg) 15.1 lbs.
