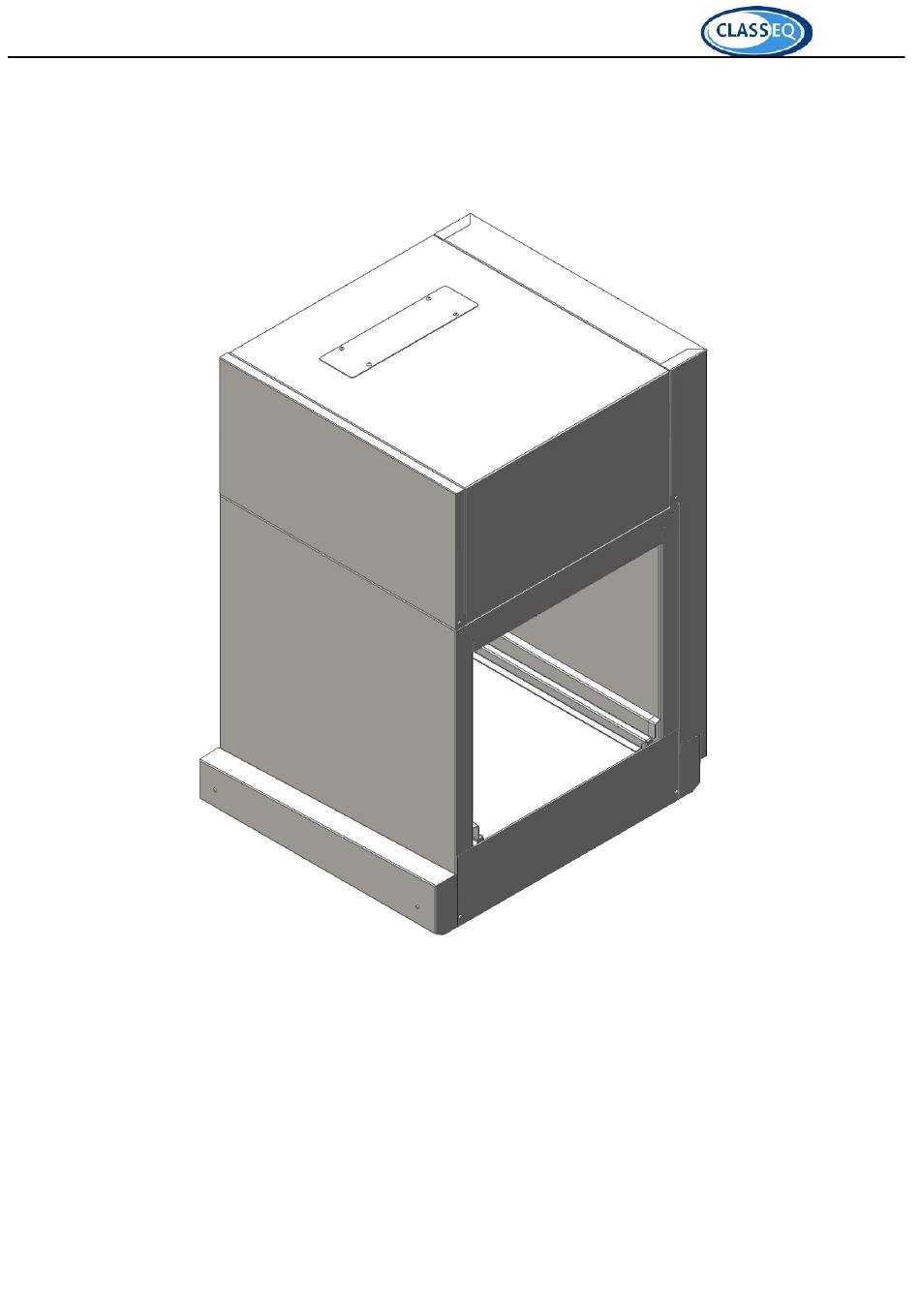

- Page 1 FITTING INSTRUCTIONS DRYER UNIT Fitting dryer unit to CST unit Drawn up: 07/09/2015 Document number : 30011288 Page 1 of 21 Revision: A...
- Page 2 FITTING INSTRUCTIONS DRYER UNIT Drawn up: 07/09/2015 Document number : 30011288 Page 2 of 21 Revision: A...
-
Page 3: Table Of Contents
FITTING INSTRUCTIONS DRYER UNIT Contents Introduction ..........................4 Recommended Tool Kit ......................5 In this kit ............................6 Before fitting..........................7 Warning and safety information ....................7 Changing direction of unit ......................8 Installing dyer controls to machine ................... 10 Preparing the machine...................... -
Page 4: Introduction
The appliance must only be repaired by a Classeq approved technician, using genuine Classeq spare parts, failure to do so could invalidate any warranty and relieve the manufacture of all liability. Modification: Classeq reserves the right to modify either the appliance or the contents of these instructions without notice. Drawn up: 07/09/2015... -
Page 5: Recommended Tool Kit
FITTING INSTRUCTIONS DRYER UNIT 2. Recommended Tool Kit Recommended hand tools Specification 8.0mm - Spanner & nut runner / socket 10.0mm - Spanner / nut runner / socket 10mm to 18mm - Adjustable spanner 3mm Hex key No. 2 - Pozi screw driver Electric screw driver (small) Med flat screwdriver Silicone gun with sealant (MS930 preferred) -
Page 6: In This Kit
FITTING INSTRUCTIONS DRYER UNIT 3. In this kit Picture Description Dryer unit Side brace plate (3 holes) Top brace plate (5 holes) Cassette Cassette link plate Clamping plate (on unit) Seal (on unit) Offset Drawn up: 07/09/2015 Document number : 30011288 Page 6 of 21 Revision: A... -
Page 7: Before Fitting
FITTING INSTRUCTIONS DRYER UNIT M5x16mm screws M5x12mm socket button head scerws M5 flange nut M3 flange nut M5x10mm socket counter sunk head screw M5 prevailing torque nut M6 Washer Dryer harness lower section Edge protection (**mm) 120x2.5mm cable ties 4. Before fitting. Before fitting the dryer unit to the machine ensure that: ... -
Page 8: Changing Direction Of Unit
FITTING INSTRUCTIONS DRYER UNIT 6. Changing direction of unit Images show changing a unit for a left hand entry machine to a right hand entry unit. Step Description Picture Remove the front and back covers on the unit Open the blower termimal block case Remove the blower terminal block case, adjustable thermostat and stud mounted cable tie. - Page 9 FITTING INSTRUCTIONS DRYER UNIT Fit the blower terminal block case to the side of the top panel. Fit the cable tie with the trunk of the harness to the top panel opposite the blower terminal block case. Close blower terminal block case. Remove 2x M5x12mm socket button head screws from the skirt currently at the front of the unit.
-
Page 10: Installing Dyer Controls To Machine
FITTING INSTRUCTIONS DRYER UNIT Refit 2x M5x12mm socket button head screws to the skirt now at the front of the unit (without the rear panel). 7. Installing dyer controls to machine N.B. Always ensure the machine is isolated from the mains electrical supply before attempting to fit these components. - Page 11 FITTING INSTRUCTIONS DRYER UNIT Fit the dryer unit control panel to the back using the 2x M5 flange nuts provided Insert the cables with the bootlace terminals into the open terminal in the main terminal block Brown to L1 ...
- Page 12 FITTING INSTRUCTIONS DRYER UNIT Locate RL5 (drive motor relay) Remove the wires with the green insulators from the coil and replace them with the new wires. Fit the wires from the machine harness in the male terminals Fit the dryer harness terminal block to the front of the wash tank and fasten using the 2x M3 flange nuts provided Route dryer harness along the...
-
Page 13: Preparing The Machine
FITTING INSTRUCTIONS DRYER UNIT 8. Preparing the machine The following steps should be carried out on the exit side of the machine in order to prepare it for the installation of the dryer unit. Images shown are of a machine with a left hand exit. Step Description Picture... - Page 14 FITTING INSTRUCTIONS DRYER UNIT Refit the top rear panel Remove the side skirt and hex head screws from the machine on the side that will have the dryer fitted. Remove the cover plate and seals from the drain holes in the tank of the machine on the side that will have the dryer fitted.
-
Page 15: Preparing The Dryer Unit
FITTING INSTRUCTIONS DRYER UNIT Remove and retain 11x M5x12mm socket button head screws and flange nuts on the side that will have the dryer fitted. These will be used later to fasten the unit in place. 9. Preparing the dryer unit Step Description Picture... -
Page 16: Fitting The Dryer Unit
FITTING INSTRUCTIONS DRYER UNIT Fitting the dryer unit Images shown are of a machine with a left hand exit unless stated otherwise. Step Description Picture Using a lifting trolley bring the unit to the exit of the machine so that the tunnels allign. - Page 17 FITTING INSTRUCTIONS DRYER UNIT Bring the dryer unit towards the machine and hook the lip on the sump of the dryer onto the edge of the machine. Lift the dryer unit into place so that both units meet, the dryer unit should lock into place in the machine.
- Page 18 FITTING INSTRUCTIONS DRYER UNIT Fit one of the side brace plates to either side of the mated faces toward the front of the unit and fasten into place with the M5x12mm socket button head screws and flange nuts removed in 8.7 Repeat step 7 on the rear mated faces.
-
Page 19: Wiring The Dryer Unit
FITTING INSTRUCTIONS DRYER UNIT Align the dryer cassette and link brackets with the machine cassette and fasten in place with M5x10mm socket counter sunk head screw and M5 prevailing torque nut. Pull the harness through to the front of the machine using the route shown. -
Page 20: Testing The Unit
FITTING INSTRUCTIONS DRYER UNIT Testing the unit Step Description Picture Follow commisioning instructions for the machine as outlined in the installation and operation manual supplied. Allow machine to fill and heat. Isolate the machine and open the control panel Turn on the dryer unit breaker (CB6) Close the control panel Refit the bottom front panel to the machine. - Page 21 FITTING INSTRUCTIONS DRYER UNIT Activate the basket arm and check that the blower unit blows air into the dryer Insert a basket into the machine and allow this to feed through completely. Check that the air being blown into the dryer is warming. Drawn up: 07/09/2015 Document number : 30011288 Page 21 of 21...
