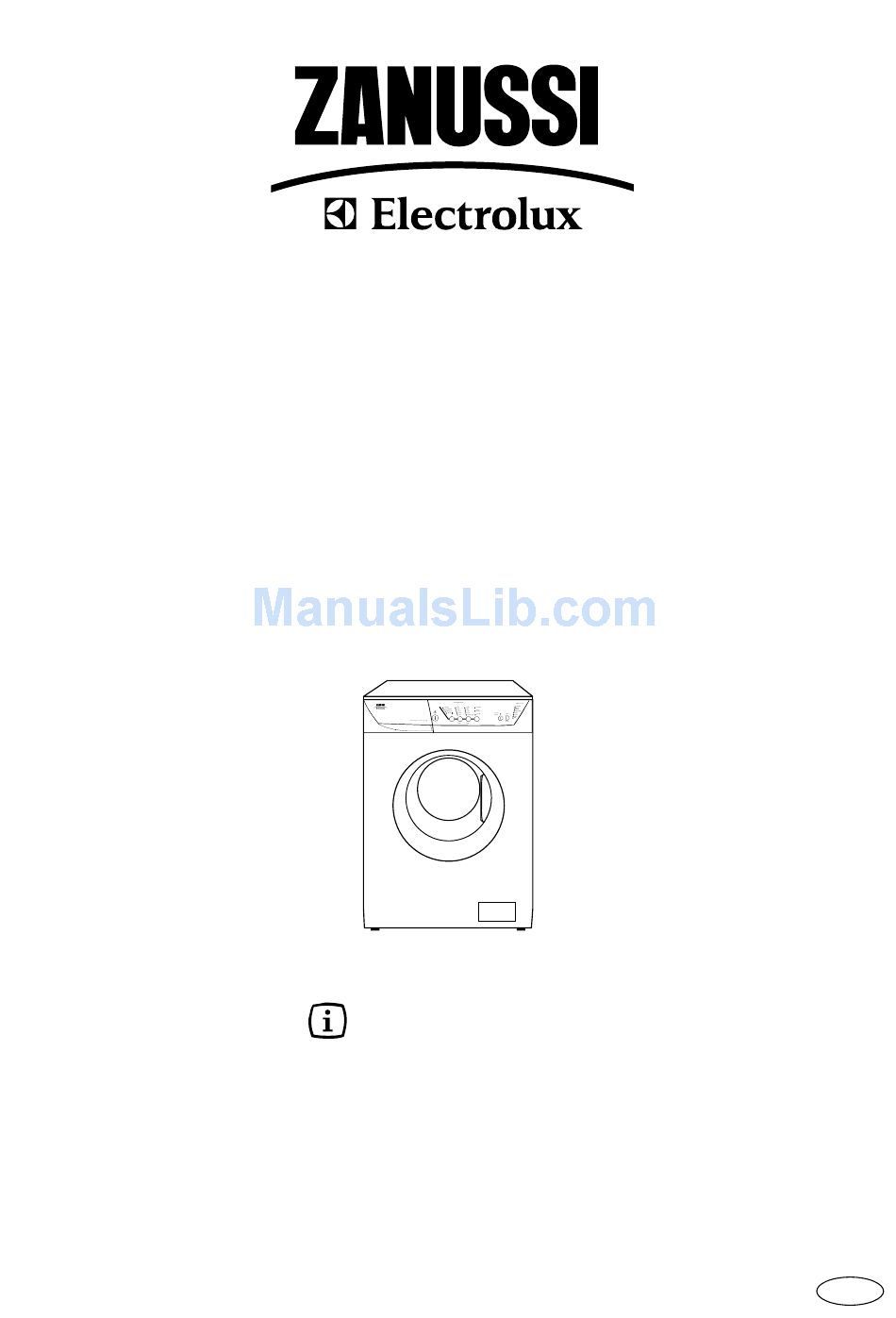

Page 1: Washing Machine
WASHING MACHINE ZWX 1506 W ZWX 1606 W Quick Installation Guide: visit our WEB SITE to view an install video www.video.uk.electrolux.com INSTRUCTION BOOKLET 132987030... -
Page 2: Important Safety Information
Important Safety Information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings. -
Page 3: Table Of Contents
Contents For the User Important Safety Information Your New Washing Machine Description of the Appliance Detergent dispenser drawer Child safety feature The Control Panel Operating Sequence Load the laundry Measure out the detergent Measure out the fabric softener Switch the machine on Select the desired programme/fabric Select the temperature Select the spin speed or the Rinse Hold option... -
Page 4: Your New Washing Machine
Your New Washing Machine Your new washing machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. Even small loads are washed “economically” because the amount of water used is regulated automatically according to the load and type of fabric. Automatic cooling of the wash water to 60°C before draining, with the 95°C programme. -
Page 5: Description Of The Appliance
Description of the Appliance This new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. • The possibility of selecting the temperature and all the options offered by this washing machine gives you truly “customised”... -
Page 6: The Control Panel
The Control Panel ZWX 1606 W 1 “On/Off” button Press this button to switch the washing machine on. Press the ON/OFF button again to switch the machine off. 2 MAINS-ON light This light is connected to the ON/OFF button. It lights up when you press the button, and goes out when you press it again. -
Page 7: Options Button
• Drain and Spin: - Choose the previously selected programme by means of the FABRICS button, afterwards change the spin speed if needed, by means of the “Spin” button and then press “Skip/Reset” button twice until only the “Spin” light illuminates and then depress “Start/Pause”... - Page 8 •Drain Depress “Skip/Reset” three times, the pilot lights “Wash”, “Rinse”and “Spin” go out. Example: In this case the machine will perform the rinses and spin. • If the machine is switched off: - depress “On/Off” button to switch it on; - select the type of fabric by means of the relevant button: - select the special programme as previously...
-
Page 9: Operating Sequence
Operating Sequence Before the first wash we recommend that you pour 2 litres of water into the main wash compartment the detergent drawer in order to activate the ECO valve. Then run a cotton cycle at 95°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. -
Page 10: Select The Spin Speed Or The Rinse Hold Option
ZWX 1606 W ZWX 1506 W 8. Select the desired options If your laundry is very dirty, it may be advisable to select the Prewash option. -
Page 11: End Of Programme
Pay attention to the level and temperature of the water in the washing machine! When you close the door and press the “On/Off”button again, the washing machine will resume the programme from the point where it had been interrupted. 13. End of programme At the end of the programme, the washing machine stops automatically and gives an audible signal. -
Page 12: Washing Hints
Washing Hints Do NOT overload the machine. Weigh the laundry the first few times you use the appliance. The average weights of the most common items are listed below as a guide: 1000g = 1 kg Sheet Pillow case Tablecloth Serviette Tea towel Linen hand towel... -
Page 13: Which Detergent
Which detergent?... To ensure you obtain the best wash results from your appliance, it is important to use the right detergent in your everyday wash, and only detergents recommended for use in automatic machines. To maintain the appearance of your clothes and household textiles and to make them last longer you should use different types of detergent for different washes, whether for whites, colours or delicates. -
Page 14: Wash Care Symbols
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 15: Washing Programmes
Washing programmes Type of laundry and Programme/ Load symbols on temperature labels 6 kg White cotton: e.g. sheets, tablecloths, household linen 6 kg 60°-50°-40°- Coloured cotton: e.g. shirts, blouses, underwear, towels, house- hold linen 6 kg 60°C + 40°AA White and coloured cotton: e.g. -
Page 16: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. -
Page 17: Cleaning The Water Inlet Filter
• Place a container close to the pump to collect any spillage. • Pull out the emergency emptying hose, place it in the container and remove its cap. • When no more water comes out, unscrew the pump cover and remove it. Always keep a rag nearby to dry up spillage of water when removing the cover. -
Page 18: Emergency Emptying Out
Important! Every time you drain the water through the emergency emptying hose you must pour 2 litres of water into the main wash compartment of the detergent drawer and then run the special programme “Drain”. To do this : depress the “On/Off” button to switch the machine •... -
Page 19: Something Not Working
Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 20: Something Not Working
For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk. For Customer Service in Ireland please contact us at the address below: Zanussi Electrolux Electrolux Group (Irl) Ltd Long Mile Road Dublin 12 Republic of Ireland Tel: +353 (0)1 4090751 Email: service.eid@electrolux.ie... -
Page 21: Customer Care Department
Guarantee Conditions Standard guarantee conditions We, Zanussi Electrolux, undertake that if, within 12 months of the date of the purchase, this ZANUSSI ELECTROLUX appliance or any part thereof is proved to be defective by reason only of faulty workmanship or... -
Page 22: Installation Instructions
Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 23: Unpacking
Unpacking All transit bolts and packing must be removed before using the appliance. You are advised to keep all the packaging for re-use in case the machine is to be transported again. Using a spanner unscrew and remove the two rear bottom screws. -
Page 24: Water Inlet
Water inlet Connect the hose to a tap with a 3/4” thread. Always use the hose supplied with the appliance to connect to the water supply. Installation should comply with local water authority and building regulations’ requirements. The appliance must be connected to a cold water supply. -
Page 25: Levelling
2. Onto a sink outlet spigot. If the outlet spigot has not been used before, remove any blanking plug that may be in place. Push the drain hose onto the spigot and secure with a clip if required, ensure a loop is formed in the drain hose (see diagram) to prevent waste from the sink entering the washing machine. -
Page 26: In The Interest Of The Environment
In the interest of the environment Washing machines and dishwashers should be connected to the FOUL drainage system, the water will then be taken to a sewage works for treatment before being discharged safely into a river. It is essential that these appliances are not connected to the surface water drainage system as this water is discharged directly into a river or stream and may cause pollution. -
Page 27: Permanent Connection
The wire coloured blue must be connected to the terminal marked «N» or coloured black. The wire coloured brown must be connected to the terminal marked «L» or coloured red. Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath. - Page 28 From the Electrolux Group. The world’s No. 1 choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
