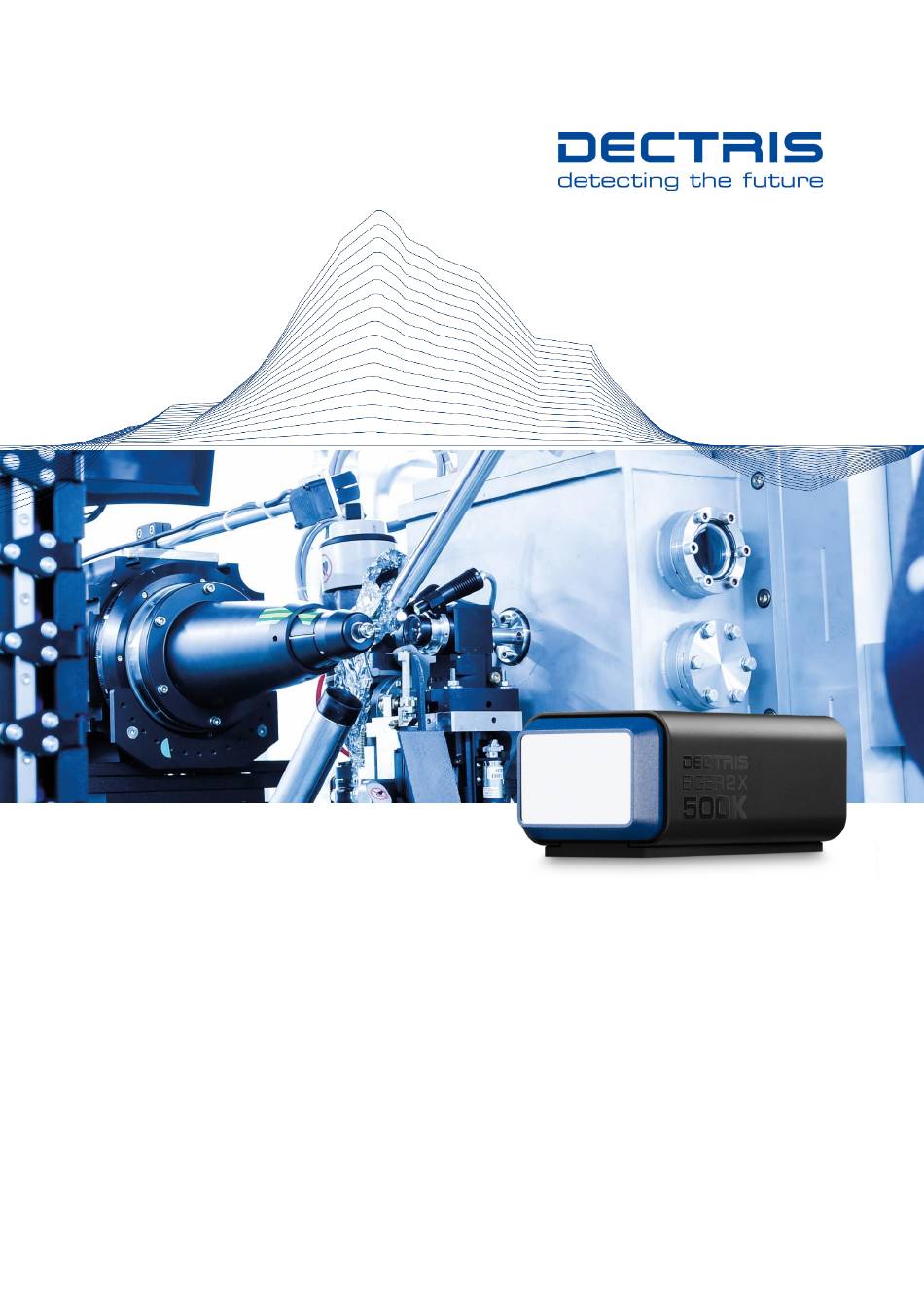

- Page 1 Technical Specifications EIGER2 X 500K Document Version v1.5.0 DECTRIS Ltd. 5405 Baden-Daettwil Switzerland www.dectris.com...
- Page 2 Document Version v1.5.0 © Copyright 2020 DECTRIS Ltd.
-
Page 3: Table Of Contents
EIGER2 X 500K Detector ........ - Page 4 Cleaning and Maintenance ......... . 23 TROUBLESHOOTING EIGER2 X 500K Technical Specifications v1.5.0...
-
Page 5: Document History
EIGER2 R 500K integration. v1.3.2 2017-09-04 PILATUS3 and EIGER2 R 500K API documentation integration. v1.4.0 2018-06-19 EIGER2 Si detector series integration v1.5.0 2020-03-02 New layout and rework of the technical specifications. EIGER2 X 500K Technical Specifications v1.5.0 iii | 24... -
Page 6: General Information
Warning blocks are used to indicate danger or risk to personnel or equipment. Caution Caution blocks are used to indicate danger or risk to equipment. Information Information blocks are used to highlight important information. EIGER2 X 500K Technical Specifications v1.5.0 1 | 24... -
Page 7: Warranty Information
DECTRIS is the sole owner of all user rights related to the contents of the manual (in particular information, images or ma- terials), unless otherwise indicated. Without the written permission of DECTRIS it is prohibited to integrate the protected contents in this publication into other programs or other websites or to use them by any other means. -
Page 8: Use Of The Eiger2 X 500K

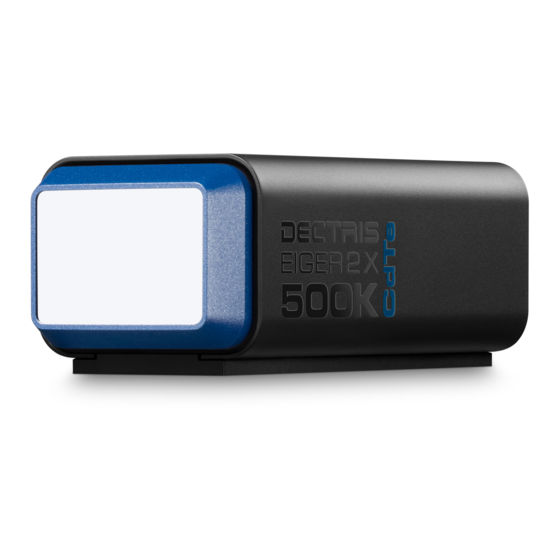

2. USE OF THE EIGER2 X 500K The EIGER2 X 500K detector system has been designed for the detection of X-rays produced by synchrotrons or laboratory sources. It is intended for indoor use only. For other applications, please contact DECTRIS technical support for additional information. -
Page 9: Technical Specifications
114 mm x 92 mm x 241.5 mm Weight 3.7 kg Overvoltage category Means of protection I (power supply) Pollution degree Maximum operating altitude 2000 m a.s.l. 3.2. Ratings One frame per exposure, i.e. single-threshold or difference image EIGER2 X 500K Technical Specifications v1.5.0 4 | 24... -
Page 10: Detector
Information Please consult the user documentation of the Mean Well GST160A12 power supply unit for details. Caution Only use the power supply delivered with the EIGER2 X 500K. Table 3.3: Power Supply Unit Ratings Input Power supply unit power input... -
Page 11: Detector Control Unit
±10 %, 50/60 Hz, 8 A (100 VAC) to 3 A (240 VAC) Dimensions (W x H x D) 270 mm x 393 mm x 436 mm Weight 17.5 kg Typical flow 3 L min Maximum operation pressure 3 bar EIGER2 X 500K Technical Specifications v1.5.0 6 | 24... -
Page 12: Ambient Conditions
The EIGER2 X 500K detector is designed for indoor use only. The ambient conditions shown in table 3.6 must be satisfied. The stated values are for the ambient conditions. -
Page 13: Detector Dimensions And Connectors
4.1.1. Technical Drawing Information 3D step files of the EIGER2 X 500K detector are available on request. Please contact DECTRIS technical support for more information. Figure 4.1: Drawing of the EIGER2 X 500K Detector (also printed separately in the user documentation folder) EIGER2 X 500K Technical Specifications... -
Page 14: Front Side Of The Detector
The sensors are behind a 12 µm thick Mylar (PET) foil coated with aluminum to protect them from humidity, dust and from being touched. Figure 4.2: The EIGER2 X 500K Detector with the Cover Removed (front view) EIGER2 X 500K Technical Specifications v1.5.0... -
Page 15: Back Side Of The Detector
4.1.3. Back Side of the Detector Figure 4.3: The EIGER2 X 500K Detector (back view) EIGER2 X 500K Technical Specifications v1.5.0 10 | 24... -
Page 16: Status Leds
Detector and detector control unit are equipped with 10GBASE- LR Single Mode SFP+ optical transceivers. Do not replace the optical receivers, as proper function of the detector system cannot be guaranteed otherwise. Please contact support@dectris.com if you need replacement transceivers. Caution... -
Page 17: Detector Control Unit
Using the web front end, it is possible to restart the EIGER2 control service, trigger an update, and to shut down and to reboot the detector control unit. Any further control of the detector is carried out via the SIMPLON API (see separate documentation). EIGER2 X 500K Technical Specifications v1.5.0 12 | 24... - Page 18 Briefly pushing the power button on the front panel will shut down the detector control unit. May take up to 1 min. Figure 4.5: Back view of detector control unit with labeled network interfaces. EIGER2 X 500K Technical Specifications v1.5.0 13 | 24...
-
Page 19: Connectors
See DELL owner’s manual for further details. 4.3. Thermal Stabilization Unit A thermal stabilization unit is required for the operation of the EIGER2 X 500K detector system. The hoses and the detector are equipped with self-sealing valves to avoid dripping when connecting or disconnecting the tubes. -
Page 20: In-Vacuum Operation
Vacuum compatibility can be provided as an option. For in-vacuum operation unscrew the self-sealing valves from the detector and use vacuum-compatible fittings and o-rings. The water connectors use an 1/8 inch ISO parallel thread. Before opening the cooling circuit always remove the coolant to avoid dripping. EIGER2 X 500K Technical Specifications v1.5.0 15 | 24... - Page 21 30 min. Prior to powering up and operating the detector in-vacuum the thermal stabilization unit has to be set to a temperature of 17 C for at least 30 min. ◦ EIGER2 X 500K Technical Specifications v1.5.0 16 | 24...
-
Page 22: Installing The Detector System Transport Considerations
(see section 3.3). The EIGER2 X 500K detector has to be connected to a dry air (or nitrogen) source to avoid humidity and condensation damage when it is outside of the storage box. For information on system connections, refer to the section 4.1.5 and for storage of the detector system refer to the section 7.5. -
Page 23: In-Vacuum Use
• Use only the supplied hose couplings. The EIGER2 X 500K detector is water-cooled and must be connected to a dedicated thermal stabilization unit. The detector is supplied with quick coupling connectors to connect the cooling tubes to the thermal stabilization unit. An optional 90°... -
Page 24: Mounting The Detector Control Unit
5.6. Mounting the Detector Control Unit Caution Make sure that the detector control unit has adequate ventilation. The detector control unit can be mounted in a standard 19 inch rack, which has to be properly grounded. EIGER2 X 500K Technical Specifications v1.5.0 19 | 24... -
Page 25: Temperature And Humidity Control
6. TEMPERATURE AND HUMIDITY CONTROL The EIGER2 X 500K detector has a combined temperature and humidity sensor. The temperature and humidity control shuts down the detector when the humidity or the temperature of the sensor exceeds the following limits: Table 6.1: Temperature and Humidity Limits... -
Page 26: Operation Procedure
• Do not remove the nitrogen/dry air connection. It is a requirement that it is left at the recommended flow rate according to section 5.4. Warning As long as the detector power cable is connected, the detector has to be considered under power. EIGER2 X 500K Technical Specifications v1.5.0 21 | 24... -
Page 27: Vacuum Operation
7.4. Vacuum Operation DECTRIS detectors can be provided for vacuum operation. The typical reachable vacuum is 10 mbar (read-out elec- tronics in vacuum) or 10 mbar (only detector head in vacuum). The outgassing rate and content are not specified. The vacuum compatibility option guarantees that the detector will operate in the mentioned vacuum range. - Page 28 7.6. Cleaning and Maintenance Caution ® The Mylar foil must not be touched or cleaned. If it is damaged, please contact DECTRIS technical support. The housing can be cleaned with a soft tissue. The EIGER2 X 500K detector does not require any maintenance.
- Page 29 8.1 provides an overview of possible problems with the detector system and instructions in order to solve the problems. If the problem you are experiencing is not listed below or if the instructions do not help, please contact support@dectris.com.
