Summary of Contents for JR Home Paramount FPT1879

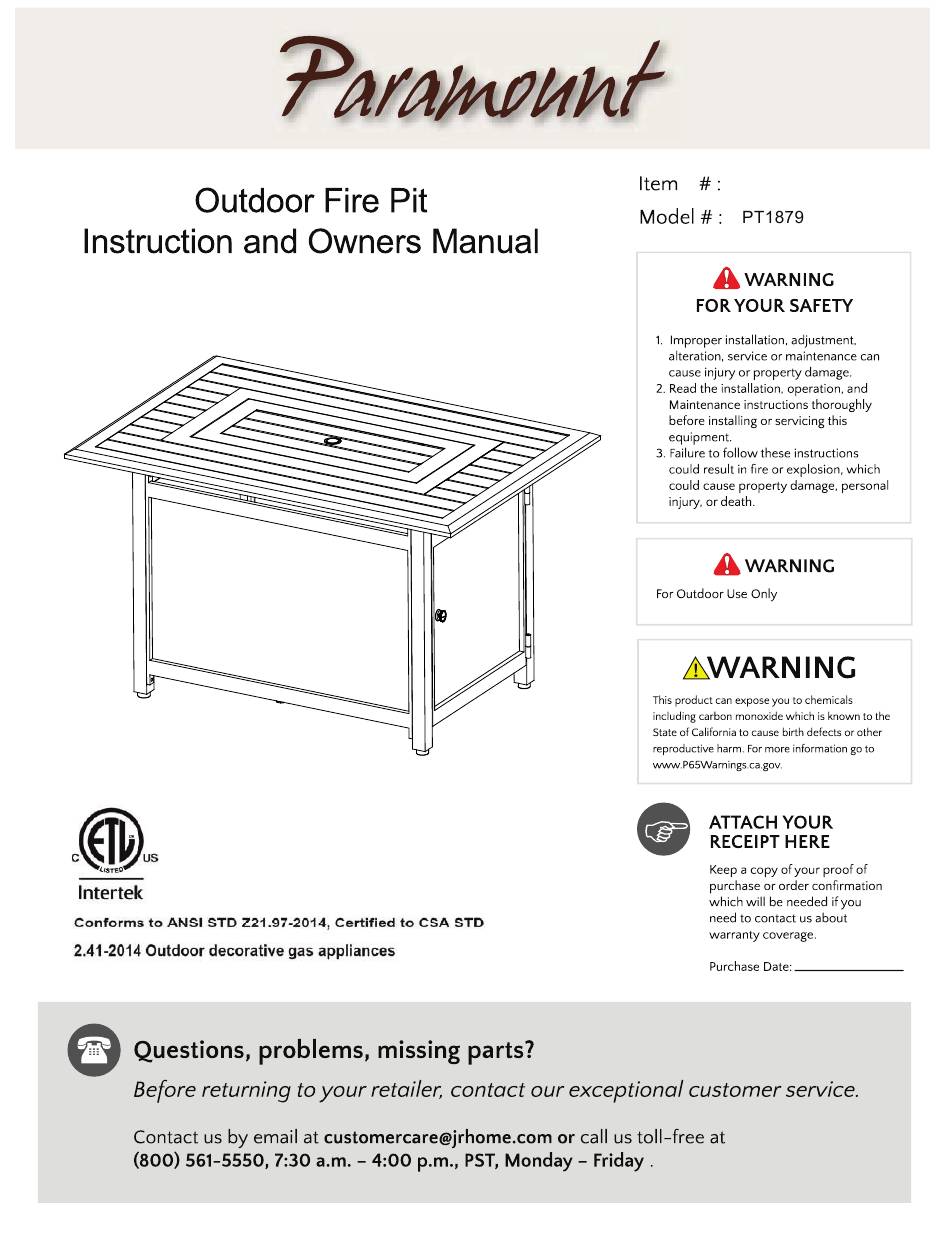

- Page 1 FP-341-GY Version B...
- Page 3 (4 for assembly +1 extra) (4 for assembly +1 extra) (8 for assembly +1 extra) (11 for assembly +1 extra) (3 for assembly +1 extra)
- Page 5 （ ） （ ）...
- Page 6 （ ） （ ）...
- Page 9 Note: In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal. Frequently check for corroded areas and repair them promptly. Caution: before attempting service.
-
Page 10: Warranty
If you have any questions regarding the warranty or service, please contact us at customercare@jrhome.com Customer Service: JR Home Products JR Home Products Unit 306 - 19100 Airport Way, Pitt Meadows, BC V3Y 0E2 Unit 306 - 19100 Airport Way, Pitt Meadows BC V3Y 0E2 Toll Free: 1-800-561-5550 E-mail: customercare@jrhome.com... - Page 11 Convertible Burner Model # : Item # : WARNING FPB-RECT-002 ULC-PC75-H-E FOR YOUR SAFETY FPB-SQ-002 ULC-PZ48-C-E FPB-RD-002 ULC-PY54-C-E 1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. 2. Read the installation, operation, and Maintenance instructions thoroughly before installing or servicing this equipment.
-
Page 12: Before You Begin
TABLE OF CONTENTS Safety Information Page Page -8 Page - Operating Instructions Page Care and Maintenance Page Converting from Propane Natural Gas Page 1 - BEFORE YOU BEGIN Please read and understand this entire manual before attempting to assemble, operate or install this appliance. -
Page 13: Safety Information
SAFETY INFORMATION SAFETY INFORMATION DANGER DANGER This appliance has been tested to and FOR YOUR SAFETY EXPLOSION—FIRE HAZARD • Keep solid combustibles, such as building complies with the ANS Z 21. 7-201 , Outdoor If you smell gas: materials, paper, or cardboard a safe Decorative Gas Appliances 1. - Page 14 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department. Contact us for assistance: customercare@jrhome.com | (800) 561-5550...
- Page 15 Contact us for assistance: customercare@jrhome.com | (800) 561-5550...
- Page 16 Burner pan Guard Contact us for assistance: customercare@jrhome.com | (800) 561-5550...
- Page 17 Model no.:ULC-PZ48-C-E Guard Contact us for assistance: customercare@jrhome.com | (800) 561-5550...
- Page 18 Burner pan Guard Contact us for assistance: customercare@jrhome.com | (800) 561-5550...
- Page 19 INSTALLATION GUIDELINES A. Carefully inspect the carton for shipping damage. If any parts are missing or damaged, call your customer assistance. Do not attempt to install the appliance unless all parts are in good condition. B. Correct installation is crucial to safe performance of your Outdoor Fire Pit. C.
- Page 20 REQUIREMENTS 1. Only non-combustible materials should come in direct contact with any part of the Fire Pit. Underneath area should be non-combustible as well. be used to ensure a proper installation. 4. Y 5. Follow the local code requirements for the gas type being used. This Fire Pit should be installed in accordance with local codes and ordinances or in the absence of local codes, with the latest National Fuel Gas Code, ANSI Z223.1 NFPA54 or CSA B149.1, Natural and Propane Installation Code in Canada.
- Page 21 WARNING *Do not use this fire pit for cooking. *Do not burn any other materials than are supplied with and intended for use in this fire pit. *Do not pour water into fire pit. *The installation of this product must conform with local codes. *Do not use this fire pit if any part has been under water.
-
Page 22: Operation
OPERATING INSTRUCTIONS FOR LIQUID PROPANE GAS UNITS *Do not attempt to disconnect the gas regulator or any gas fitting while your fire pit is in operation. *A dented or rusty liquid propane cylinder may be hazardous and should be checked by your gas supplier prior to use. *Do not use a liquid propane cylinder with a damaged valve and any other worn out parts. -
Page 23: Leak Check
OPERATING INSTRUCTIONS LEAK CHECK WARNING! • Perform all leak tests outdoors. • • NEVER leak test when smoking. • Do not use the appliance until all connections have been leak tested and do not leak Hose / Regulator Regulator / Cylinder Connection Connection 1. -
Page 24: Before Lighting
OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS CAUTION WARNING DANGER! Do not attempt to operate until you FOR OUTDOOR USE ONLY have read and understand all General Very hot while in operation! Safety Information in this manual and CARBON MONOXIDE HAZARD Do not touch Table Top or Burner all assembly is complete and leak Never use this inside a house, or other test has been performed. -
Page 25: Operation Checklist
OPERATING INSTRUCTIONS OPERATION CHECKLIST: WARNING For a safe and pleasurable heating experience, perform this check FOR YOUR SAFETY before each use: Be careful when attempting to manually ignite this appliance. Holding in the control knob for more than 10 seconds before BEFORE OPERATING: I am familiar with entire owner’s manual and understand all upon ignition. -
Page 26: Care And Maintenance
CARE & MAINTENANCE STORAGE: To enjoy years of outstanding performance from your burner, make sure you Between uses: perform the following maintenance activities on a regular basis: • Turn control knob OFF. • Disconnect LP source. cleaning agents. from direct contact with 2. -
Page 27: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Wait until the propane cylinder warms up and becomes Propane cylinder is frosted over unfrosted Burner will not light Clear blockage Control knob is not in ON position Turn control knob to ON Gas pressure is low Turn cylinder valve OFF and replace cylinder Outdoor temperature is less than Use a full cylinder... - Page 28 If you have any questions regarding the warranty or service, please contact us at customercare@jrhome.com Customer Service: JR Home Products JR Home Products Unit 306 - 19100 Airport Way, Pitt Meadows, BC V3Y 0E2 Unit 306 - 19100 Airport Way, Pitt Meadows BC V3Y 0E2 Toll Free: 1-800-561-5550 E-mail: customercare@jrhome.com...
- Page 29 CONVERTING FROM LIQUID PROPANE (LP) TO NATURAL GAS (NG) WARNING MAKE SURE ALL CONTROL KNOBS & CYLINDER VALVE ARE IN OFF POSITION BEFORE CONVERTING. This appliance is portable and shipped from the factory for use with Liquid Propane (LP Gas), which is delivered to the grill from removable tanks (LP tanks and their use are covered elsewhere in this manual).
- Page 30 GAS CONVERSION LP TO NG WARNING! To avoid the possibility of burns conversions should only be done when the burner is turned off. Turn gas off at source and disconnect the burner before beginning conversion. WARNING! tested before operating the appliance. Your burner comes from the factory set up for propane but it can be easily converted to natural gas by following these steps: 2.
- Page 31 GAS CONVERSION LP TO NG 4. Separate the two parts of the orifice connector by using two wrenches. Orifice Connector 5. Replace the propane orifice with the natural gas orifice and retighten with wrenches. Natural Gas Orifice 6. Insert the Orifice holder into the air shutter. Tighten with wrench.
-
Page 32: Gas Conversion From Lp To Ng
GAS CONVERSION FROM LP TO NG GAS CONVERSION LP TO NG quick disconnect must not be installed in an upward direction and a readily accessible manual shut-off valve must be installed upstream of, and as close to, the quick disconnect as is feasible. Contact us for assistance: customercare@jrhome.com | (800) 561-5550...
