Page 1: Washing Machine

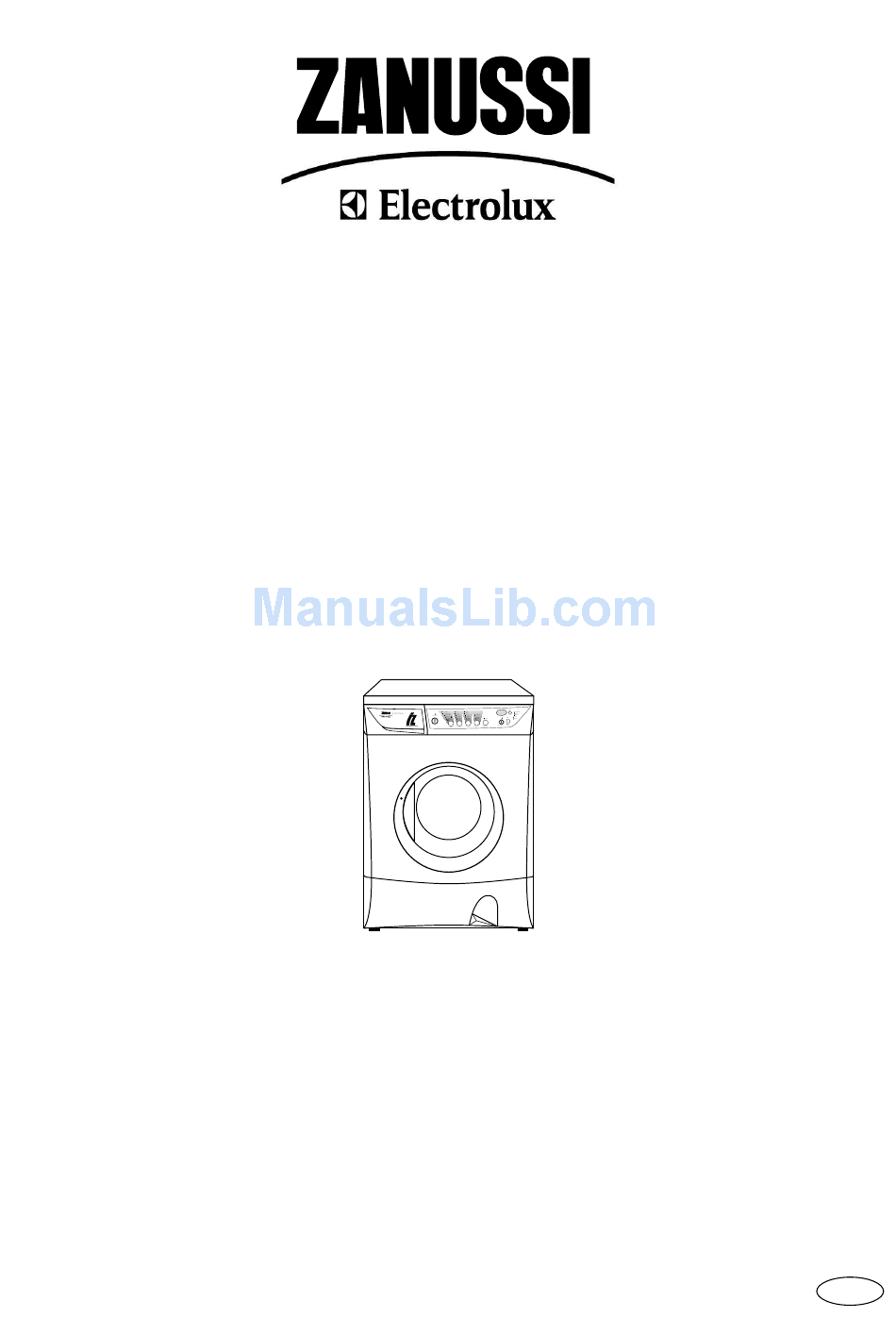

WASHING MACHINE IZ 141 W- IZ 141 S IZ 161 W- IZ 161 S INSTRUCTION BOOKLET 132992340... -
Page 2: Important Safety Information
Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine Zanussi spare parts. -
Page 3: Table Of Contents
Contents For the User Important Safety Information Your New Washing Machine Description of the Appliance Door locked light Detergent dispenser drawer Child safety feature The Control Panel Turning the acoustic signal off Operating sequence Load the laundry Measure out the detergent Measure out the fabric softener Switch the machine on Select the required programme/fabric... -
Page 4: Your New Washing Machine
Your New Washing Machine Your new washing machine, fitted with the Zanussi “JET SYSTEM”, meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. Even small loads are washed “economically” because the amount of water used is regulated automatically according to the load and type of fabric. -
Page 5: Description Of The Appliance
Description of the Appliance 1 Detergent dispenser drawer 2 Control panel 3 Door locked light 4 Door opening handle 5 Filter 6 Adjustable feet Door locked light It stays on during the whole programme indicating that the door is locked. When the light goes out, the door can be opened (see page 12). -
Page 6: The Control Panel
The Control Panel 1 ON/OFF button Press this button to switch the washing machine on. The display (8) will show three blinking dashes or a blinking zero. You will find more detailed explanations on pages 7-8 (see “DISPLAY”). Press the ON/OFF button again to switch the machine off. -
Page 7: Options Button
• Draining and spin: - Press the START/PAUSE button. The machine will drain the water, then spin the laundry at the maximum speed provided for the selected programme. - Select spin speed by means of button 5, and press the START/PAUSE button. •... -
Page 8: Skip/Reset Button
• Duration of washing programme in hours and minutes, after you have selected a programme. While the programme is running (after you have pressed the START/PAUSE button), the displayed time value decreases by one unit every minute. • The washing machine has stopped with water in the tub, at the end of a programme with the NIGHT WASH option: this is indicated by a static zero. - Page 9 Selecting a special programme: A wash programme must be selected in the normal way. (START button not pressed) The SKIP button is then used to cancel or advance the programme to the required phase. The SKIP button can only operate when the programme is in pause.
- Page 10 Important! The door will be locked throughout the delay time (DOOR LOCKED light lit). If you need to open the door, you must first set the washing machine to PAUSE by pressing the START/PAUSE button. After you have closed the door, press the START/PAUSE button again.
-
Page 11: Operating Sequence
Operating Sequence Before the first wash, we recommend that you run a cotton cycle at 60°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub. Pour 1/2 a measure of detergent into the dispenser drawer and start the machine. -
Page 12: Select The Temperature
6. Select the temperature Press the TEMPERATURE button if you wish to select a temperature value different from the one proposed by the washing machine. The relevant light will light up. 7. Select the spin speed or the NIGHT WASH option Press the SPIN SPEED button repeatedly, in order to select the desired spin speed or the NIGHT WASH option. -
Page 13: How To Change A Programme During Its Cycle
12. How to change a programme during its cycle Before you make any change, you must pause the washing machine by pressing the START/PAUSE button. It is possible to change any phase before the programme carries it out. Changing the type of fabric or temperature is possible, obviously, only during the washing phase. -
Page 14: Washing Hints
Washing Hints Do NOT overload the machine. Weigh the laundry the first few times you use the appliance. The average weights of the most common items are listed below as a guide: 1000g = 1 kg Sheet Pillow case Tablecloth Serviette Tea towel Linen hand towel... -
Page 15: Which Detergent
Which detergent?... To ensure you obtain the best wash results from your appliance, it is important to use the right detergent in your everyday wash, and only detergents recommended for use in automatic machines. To maintain the appearance of your clothes and household textiles and to make them last longer you should use different types of detergent for different washes, whether for whites, colours or delicates. -
Page 16: Wash Care Symbols
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 17: Washing Programmes
Washing programmes Type of laundry and Programme/ Load symbols on temperature labels 5 kg Cottons White cotton: 60°-90°C e.g. sheets, tablecloths, household linen 5 kg Cottons Coloured 60°-50°-40°- cotton: e.g. 30°C shirts, blouses, underwear, towels, house- hold linen 2.5 kg Synthetics Synthetic 60°-50°-40°-... -
Page 18: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. -
Page 19: The Dangers Of Freezing
Release the emergency emptying hose, place it in the container, and remove its cap by unscrewing it. When no more water comes out, unscrew the filter and remove it. Clean the filter under a running tap, then refit it, screwing it fully in. Put the cap back on the emergency emptying hose, place the latter back in its seat. -
Page 20: Something Not Working
Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 21: Service And Spare Parts
For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk. For Customer Service in Ireland please contact us at the address below: Zanussi Electrolux Electrolux Group (Irl) Ltd Long Mile Road Dublin 12 Republic of Ireland Tel: +353 (0)1 4090751 Email: service.eid@electrolux.ie... -
Page 22: Guarantee Conditions
Guarantee Conditions Standard guarantee conditions We, Zanussi Electrolux, undertake that if, within 12 months of the date of the purchase, this ZANUSSI ELECTROLUX appliance or any part thereof is proved to be defective by reason only of faulty workmanship or... -
Page 23: Installation Instructions
Depth Minimum Maximum Cotton, linen Synthetics Delicate fabrics Wool/Hand Wash Maximum 1400 rpm (IZ141 W - IZ 141 S) 1600 rpm (IZ 161 W - IZ 161 S) Energy Water 85 cm 60 cm 62 cm 230-240 V/50 Hz 2050 W (10A) 50 kPa (0.5 bar) -
Page 24: Unpacking
Unpacking All transit bolts and packing must be removed before using the appliance. You are advised to keep all the packaging for re-use in case the machine is to be transported again. Using a spanner unscrew and remove the two rear bottom screws. -
Page 25: Water Inlet
Water inlet Connect the hose to a tap with a 3/4” thread. Do not use, for connection, old hoses that have been used for another appliance. Installation should comply with local water authority and building regulations’ requirements. The appliance must be connected to a cold water supply. -
Page 26: Levelling
An additional drain hose and joining piece is available from your local Service Force Centre. The joining piece must have an internal diameter of 18mm. If you intend the drain hose to empty into a sink, make sure that the sink is empty and the plug hole is not blocked. -
Page 27: Electrical Connection
Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. WARNING: THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any liability should this safety measure not be observed. Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance’s rating plate. - Page 28 From the Electrolux Group. The world’s No. 1 choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
