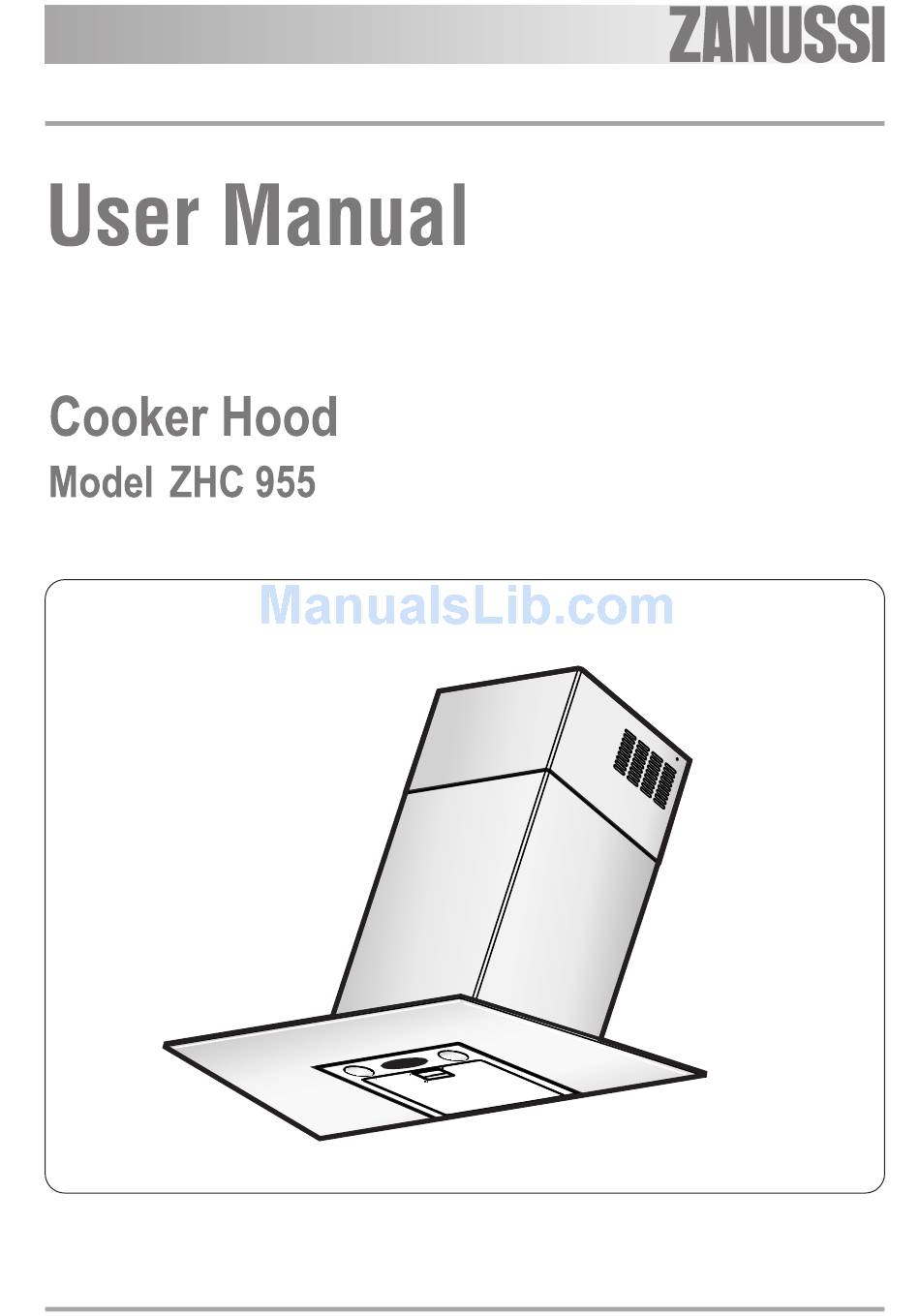

Zanussi ZHC 955 Owner's Manual

Zanussi owners manual ventilation hood zhc 955
Hide thumbs Also See for ZHC 955:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating and Installation Instruction

Advertisement

Table of Contents
loading

Related Manuals for Zanussi ZHC 955

Summary of Contents for Zanussi ZHC 955

  • Page 2: Table Of Contents

    Contents Safety warnings ... 3 For the installer ... 3 For the user ... 3 Description of the appliance ... 4 Extraction mode ... 4 Recirculation mode ... 4 Control Panel ... 5 Correct ventilation ... 5 Maintenance and care ... 6 Cleaning the hood ...

  • Page 3: Safety Warnings

    Safety warnings For the installer • When used as an extractor unit, the hood must be fitted with a 150mm diameter hose. Attention: The hose is not supplied and must be purchased separately. • When installing the hood observe the following minimum distances from the cooking top: electric cookers...

  • Page 4: For The User

    For the user • The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam. • Always cover lighted elements, to prevent excess heat from damaging the appliance. In the case of oil, gas and coal fired cookers it is essential to avoid open flames.

  • Page 5: Description Of The Appliance

    Description of the appliance • The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam. • The hood is supplied as a recirculator unit and can also be used in extraction mode by not installing/using the charcoal filters.

  • Page 6: Maintenance And Care

    Maintenance and care • The hood must always be disconnected from the electricity supply before beginning any maintenance work. Cleaning the hood • Clean the outside of the hood using a damp cloth and a solution of water and mild washing up liquid.

  • Page 7: Charcoal Filter

    Charcoal filter • The charcoal filter should only be used if you want to use the hood in recirculation mode. • To do this you will need an original charcoal filter (available from your local Service Force Centre). • Cleaning/replacing the charcoal filter Unlike other charcoal filters, the LONGLIFE charcoal filter can be cleaned and reactivated.

  • Page 8: What To Do If

    Turn off the hob and then wait for the device to reset. If the hood has been installed below the heights indicated in the installation instructions the motor will cut-out frequently which will damage the hood. ZHC 955 81,5 - 112,5 89,8 50,1...

  • Page 9: Technical Assistance Service

    Tel: + 353 (0) 1 4090751 CUSTOMER CARE DEPARTMENT For general enquiries concerning your Zanussi appliance or for further information on Zanussi products, please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.electrolux.co.uk...

  • Page 10: Guarantee Conditions

    Standard guarantee conditions We, Zanussi, undertake that if within 24 months of the date of the purchase this Zanussi appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.

  • Page 11: Installation

    Installation Unpacking Check that the cooker hood has no damages. Transportation damages should immediately be reported to the company responsible for the transportation. Damages, faults and eventually missing details should immediately be reported to the retailer. Take care of the packing materials so that small children cannot play with them.

  • Page 12: Mounting Accessories Included

    Installation Mounting accessories included 1 deflector (+ spacers adapter) 2 metal screws 3,5 x 13 (to fix spacers adapter to deflector). 2 metal screws 3 x 9 (to fix upper chimney section) 12 metal screws 3,5 x 9,5 (6 to fix motor unit to lower part of the hood, 4 to fix deflector to chimney support, 2 to fix lower chimney section)

  • Page 13: Wall Unit Mounting

    Wall unit mounting - Fig. 7-8-9 Disconnect the hood during electrical connection, by turning the home mains switch off. Remove the grease filter. • Rest the motor unit on a flat surface and thread the lower part of the hood onto it (1). •...
  • Page 14 Fig. 7 Fig. 8 Fig. 9...
  • Page 16 LI2LDD Ed. 02/06...
