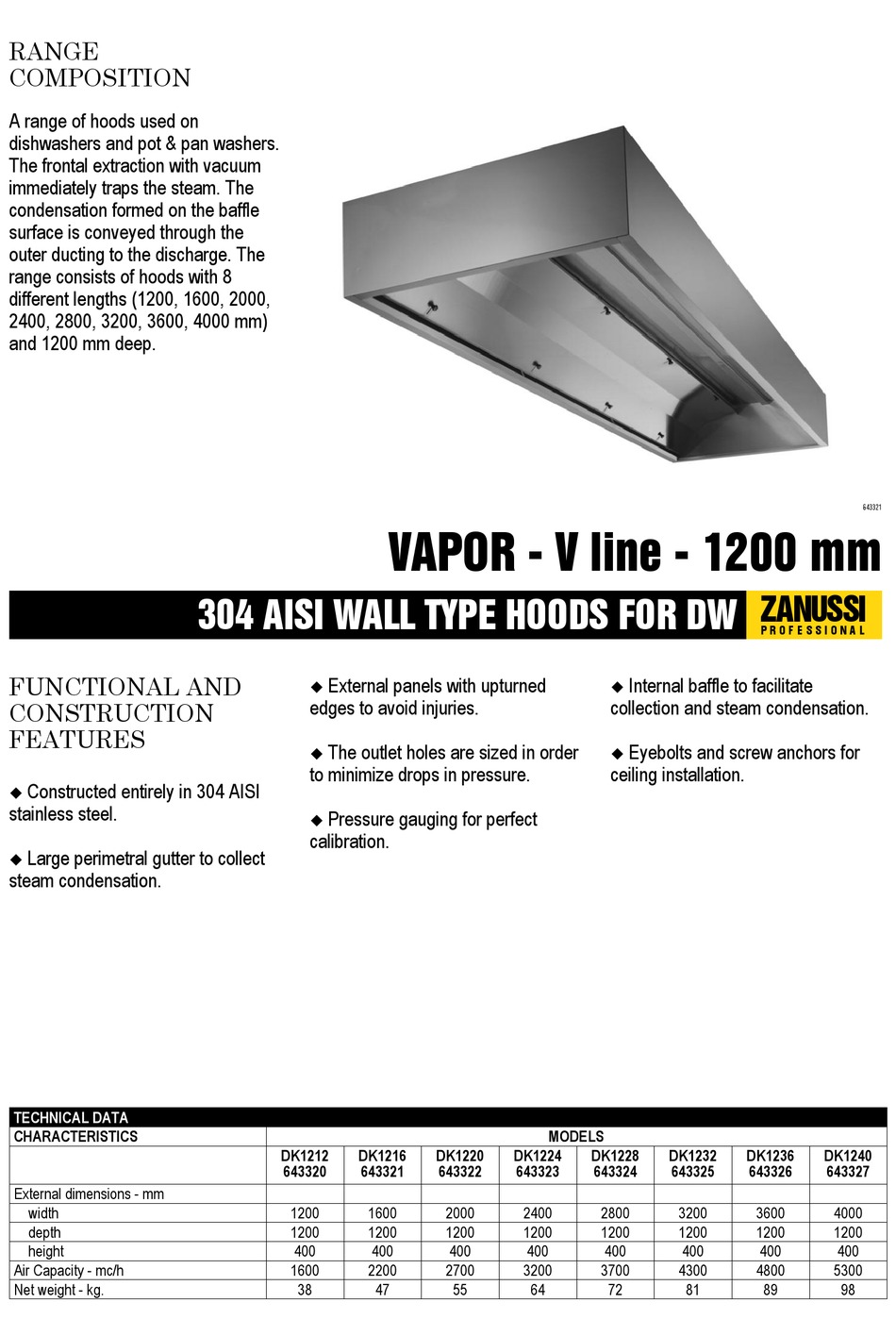

Zanussi Vapor 643320 Brochure & Specs

RANGE
COMPOSITION
A range of hoods used on
dishwashers and pot & pan washers.
The frontal extraction with vacuum
immediately traps the steam. The
condensation formed on the baffle
surface is conveyed through the
outer ducting to the discharge. The
range consists of hoods with 8
different lengths (1200, 1600, 2000,
2400, 2800, 3200, 3600, 4000 mm)
and 1200 mm deep.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
Constructed entirely in 304 AISI
�
stainless steel.
Large perimetral gutter to collect
�
steam condensation.
TECHNICAL DATA
CHARACTERISTICS
External dimensions - mm
width
depth
height
Air Capacity - mc/h
Net weight - kg.
304 AISI WALL TYPE HOODS FOR DW
External panels with upturned
�
edges to avoid injuries.
The outlet holes are sized in order
�
to minimize drops in pressure.
Pressure gauging for perfect
�
calibration.
DK1212 DK1216
643320 643321
1200
1200
400
1600
38
VAPOR - V line - 1200 mm
DK1220 DK1224
643322 643323
1600 2000 2400
1200 1200 1200
400 400 400
2200 2700 3200
47 55 64
Internal baffle to facilitate
�
collection and steam condensation.
Eyebolts and screw anchors for
�
ceiling installation.
MODELS
DK1228 DK1232
643324 643325
2800 3200
1200 1200
400 400
3700 4300
72 81
643321
ZANUSSI
P R O F E S S I O N A L
DK1236 DK1240
643326 643327
3600 4000
1200 1200
400 400
4800 5300
89 98
