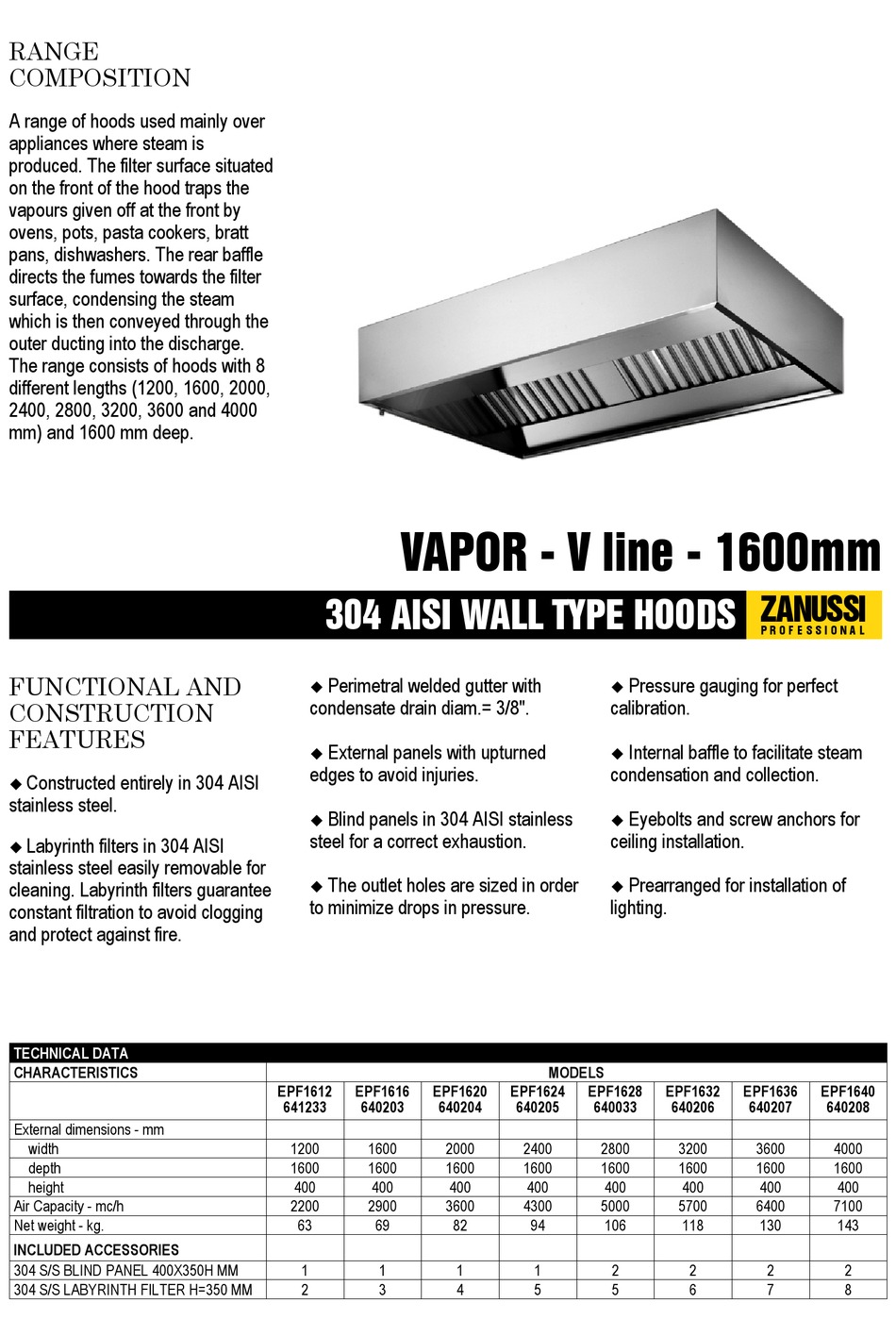

Zanussi Vapor 640033 Brochure & Specs

RANGE
COMPOSITION
A range of hoods used mainly over
appliances where steam is
produced. The filter surface situated
on the front of the hood traps the
vapours given off at the front by
ovens, pots, pasta cookers, bratt
pans, dishwashers. The rear baffle
directs the fumes towards the filter
surface, condensing the steam
which is then conveyed through the
outer ducting into the discharge.
The range consists of hoods with 8
different lengths (1200, 1600, 2000,
2400, 2800, 3200, 3600 and 4000
mm) and 1600 mm deep.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
Constructed entirely in 304 AISI
�
stainless steel.
Labyrinth filters in 304 AISI
�
stainless steel easily removable for
cleaning. Labyrinth filters guarantee
constant filtration to avoid clogging
and protect against fire.
TECHNICAL DATA
CHARACTERISTICS
External dimensions - mm
width
depth
height
Air Capacity - mc/h
Net weight - kg.
INCLUDED ACCESSORIES
304 S/S BLIND PANEL 400X350H MM
304 S/S LABYRINTH FILTER H=350 MM
VAPOR - V line - 1600mm
304 AISI WALL TYPE HOODS
Perimetral welded gutter with
�
condensate drain diam.= 3/8".
External panels with upturned
�
edges to avoid injuries.
Blind panels in 304 AISI stainless
�
steel for a correct exhaustion.
The outlet holes are sized in order
�
to minimize drops in pressure.
EPF1612 EPF1616 EPF1620
641233 640203 640204
1200 1600 2000
1600 1600 1600
400 400
2200 2900 3600
63 69
1 1
2 3
�
calibration.
�
condensation and collection.
�
ceiling installation.
�
lighting.
MODELS
EPF1624 EPF1628
640205 640033
2400 2800
1600 1600
400 400 400
4300 5000
82 94 106
1 1 2
4 5 5
ZANUSSI
P R O F E S S I O N A L
Pressure gauging for perfect
Internal baffle to facilitate steam
Eyebolts and screw anchors for
Prearranged for installation of
EPF1632 EPF1636
640206 640207
3200 3600
1600 1600
400 400
5700 6400
118 130
2 2
6 7
EPF1640
640208
4000
1600
400
7100
143
2
8
