Zanussi TH 500 Instruction Booklet

Integrated cooker hood
Hide thumbs Also See for TH 500:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Booklet

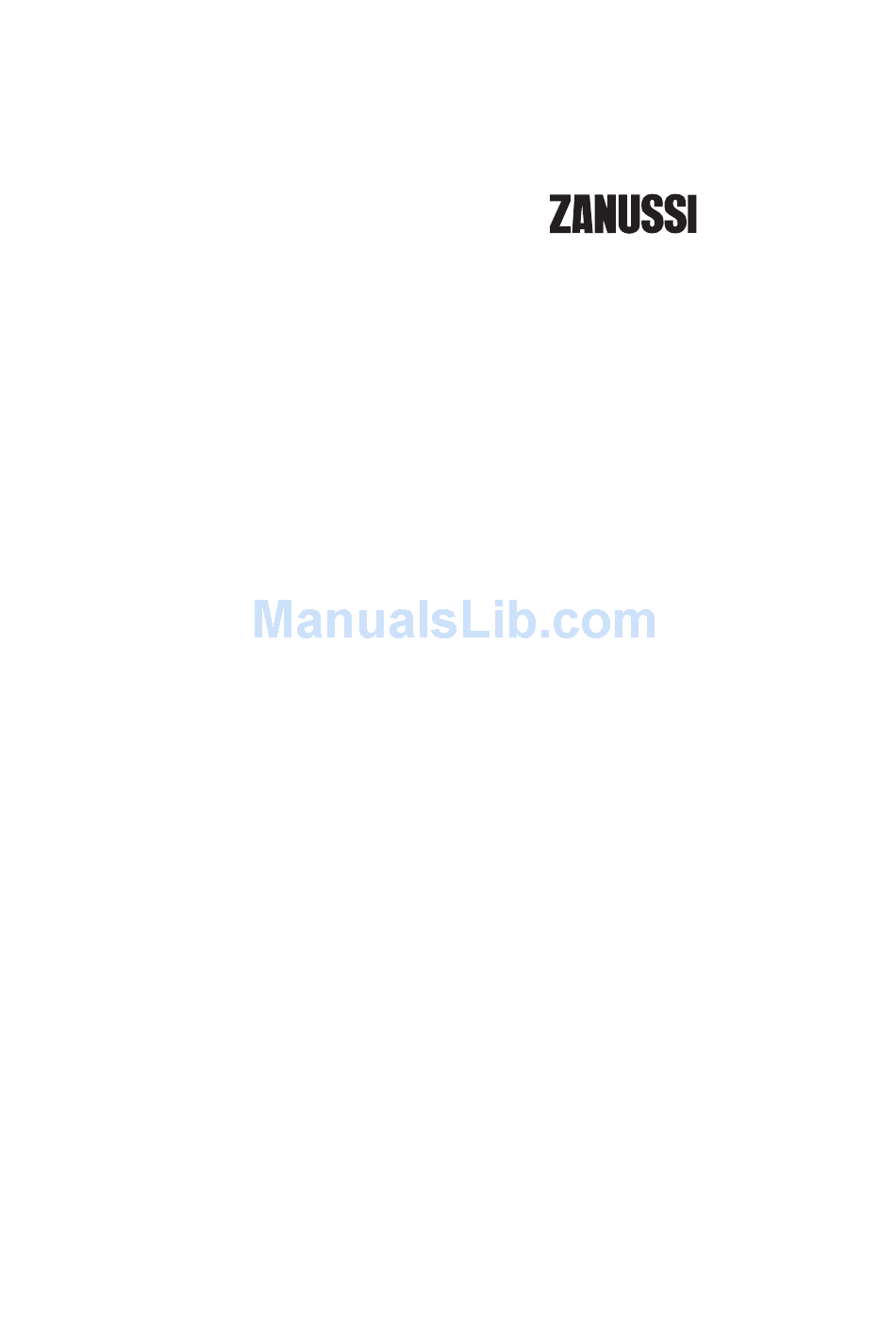

INSTRUCTION BOOKLET
INTEGRATED
COOKER HOOD
TH 500

Advertisement

Table of Contents
loading

Related Manuals for Zanussi TH 500

Summary of Contents for Zanussi TH 500

  • Page 1 INSTRUCTION BOOKLET INTEGRATED COOKER HOOD TH 500...

  • Page 2: Service And Spare Parts

    To enable you to use your appliance effectively and safely, please read this instruction book carefully before using the appliance and retain for future reference. If you require guidance in the use of the appliance or require further information on Zanussi Products, please contact our Customer Care Department.

  • Page 3: Important Safety Information

    • Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or more serious malfunction. Refer to your local Zanussi Service Force Centre. Always insist on genuine spare parts.

  • Page 4: Your Appliance

    This cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam. Cooker Hood Controls The cooker hood functions are controlled by three slider switches which are located in a fold away control box on the right hand side. Automatic Microswitch The microswitch overrides the controls, and switches off the hood when the visor is closed.
  • Page 5 The appliance can be installed to recirculate or extract contaminated air. However, the cooker hood is more effective in the extraction mode. Recirculation The contaminated air is cleaned by passing through the filters and then back into the kitchen. Extraction The contaminated air enters the hood passing through the grease filter and out through the ducting to the atmosphere.

  • Page 6: Maintenance And Cleaning

    MAINTENANCE AND CLEANING Before carrying out any maintenance or cleaning isolate the cooker hood from the mains supply. The cooker hood must be kept clean, a build up of grease or fat can be a fire hazard. External Cleaning The metal casing, grille and visor should be cleaned at least once a month to keep it looking like new.
  • Page 7 To Remove/Replace the Charcoal Filter Open the visor. Remove the metal grease filters. Remove one filter at a time by placing one hand over the filter and releasing the spring retaining clip. Allow the filter to hinge back and then remove.

  • Page 8: Something Not Working

    For general assistance with your appliance or for information on Zanussi products please contact our Customer Care Department. Customer Care Department, Zanussi Zanussi House...

  • Page 9: Peace Of Mind For Twenty Four Months

    PEACE OF MIND FOR TWENTY FOUR MONTHS STANDARD GUARANTEE CONDITIONS We, Zanussi Ltd., underlake that if within twenty four months of the date of the purchase this ZANUSSI buill-in appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will, at our option repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that.

  • Page 10: Installation Instructions

    INSTALLATION INSTRUCTIONS It is dangerous to alter the specifications or attempt to modify this product in any way. Technical Information DIMENSIONS WEIGHT ELECTRICAL SUPPLY: POWER CONSUMPTION: FAN MOTOR: LAMP: SUITABLE FOR INSTALLATION ABOVE: Note: CE Marking certifies that this appliance complies with the require- ments laid down in EEC directive 89:336.

  • Page 11: Installing The Cooker Hood

    INSTALLING THE COOKER HOOD Please ensure that when the appliance is installed it is easily accessible to an engineer in the event of a breakdown. All installations must comply with the local authorities requirements for the discharge of exhaust air. Incorrect installation may affect the safety of this cooker hood.
  • Page 12 Clearance Height A minimum clearance height of 650mm ”) is required when installed above a built-in electric hob, or 700mm (27 installed above a built-in gas hob. A minimum clearance height of 685mm (27”) is required when installed above a slot-in electric oven, or 787mm (30 installed above a slot-in gas oven.
  • Page 13 Insert the ducting spigot into the aperture on the top of the cooker hood casing. Fitting the Wall Cabinet If it is necessary to fix the kitchen cabinet to a hollow construction plaster or partition board structure then it must be sufficiently reinforced to be strong enough to support the weight of the cooker hood.
  • Page 14 To adjust the lower casing Pull out the visor. Loosen the two screws immediately in front and behind the butterfly bracket screws. Once the screws have been loosened the lower section of the hood can be moved backward and forward. This will allow the alignment of the decor trim with the wall cabinet above.
  • Page 16 Dir. 89/336/CEE 73/23/CEE 4324166 01 - 0998...
