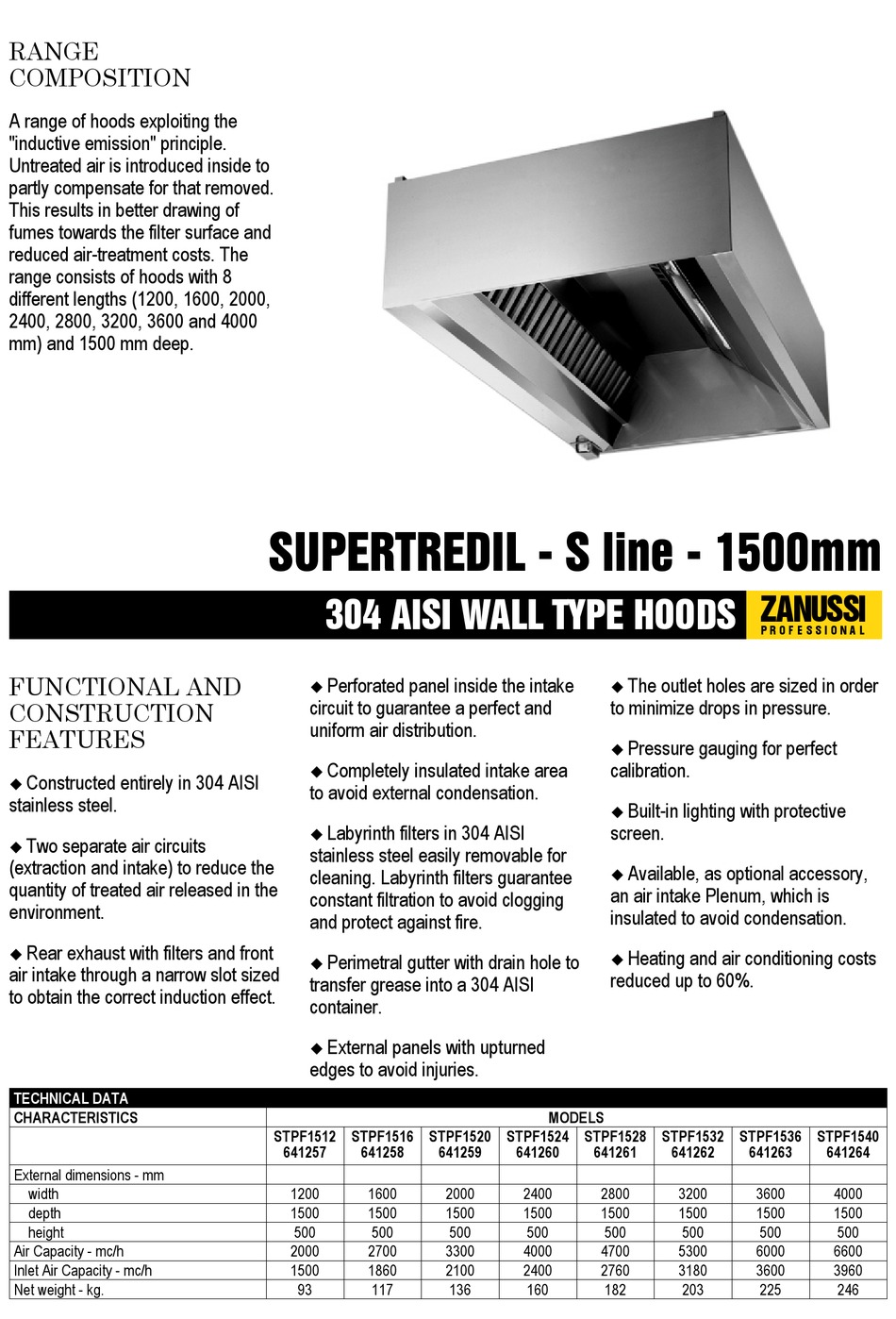

Zanussi Supertredil 641257 Brochure & Specs

RANGE
COMPOSITION
A range of hoods exploiting the
"inductive emission" principle.
Untreated air is introduced inside to
partly compensate for that removed.
This results in better drawing of
fumes towards the filter surface and
reduced air-treatment costs. The
range consists of hoods with 8
different lengths (1200, 1600, 2000,
2400, 2800, 3200, 3600 and 4000
mm) and 1500 mm deep.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
Constructed entirely in 304 AISI
�
stainless steel.
Two separate air circuits
�
(extraction and intake) to reduce the
quantity of treated air released in the
environment.
Rear exhaust with filters and front
�
air intake through a narrow slot sized
to obtain the correct induction effect.
TECHNICAL DATA
CHARACTERISTICS
External dimensions - mm
width
depth
height
Air Capacity - mc/h
Inlet Air Capacity - mc/h
Net weight - kg.
SUPERTREDIL - S line - 1500mm
304 AISI WALL TYPE HOODS
Perforated panel inside the intake
�
circuit to guarantee a perfect and
uniform air distribution.
Completely insulated intake area
�
to avoid external condensation.
Labyrinth filters in 304 AISI
�
stainless steel easily removable for
cleaning. Labyrinth filters guarantee
constant filtration to avoid clogging
and protect against fire.
Perimetral gutter with drain hole to
�
transfer grease into a 304 AISI
container.
External panels with upturned
�
edges to avoid injuries.
STPF1512 STPF1516 STPF1520
641257 641258
1200 1600
1500 1500
500 500
2000 2700
1500 1860
93 117
MODELS
STPF1524 STPF1528
641259 641260 641261
2000 2400 2800
1500 1500 1500
500 500 500
3300 4000 4700
2100 2400 2760
136 160 182
ZANUSSI
P R O F E S S I O N A L
The outlet holes are sized in order
�
to minimize drops in pressure.
Pressure gauging for perfect
�
calibration.
Built-in lighting with protective
�
screen.
Available, as optional accessory,
�
an air intake Plenum, which is
insulated to avoid condensation.
Heating and air conditioning costs
�
reduced up to 60%.
STPF1532 STPF1536
641262 641263
3200 3600
1500 1500
500 500
5300 6000
3180 3600
203 225
STPF1540
641264
4000
1500
500
6600
3960
246
