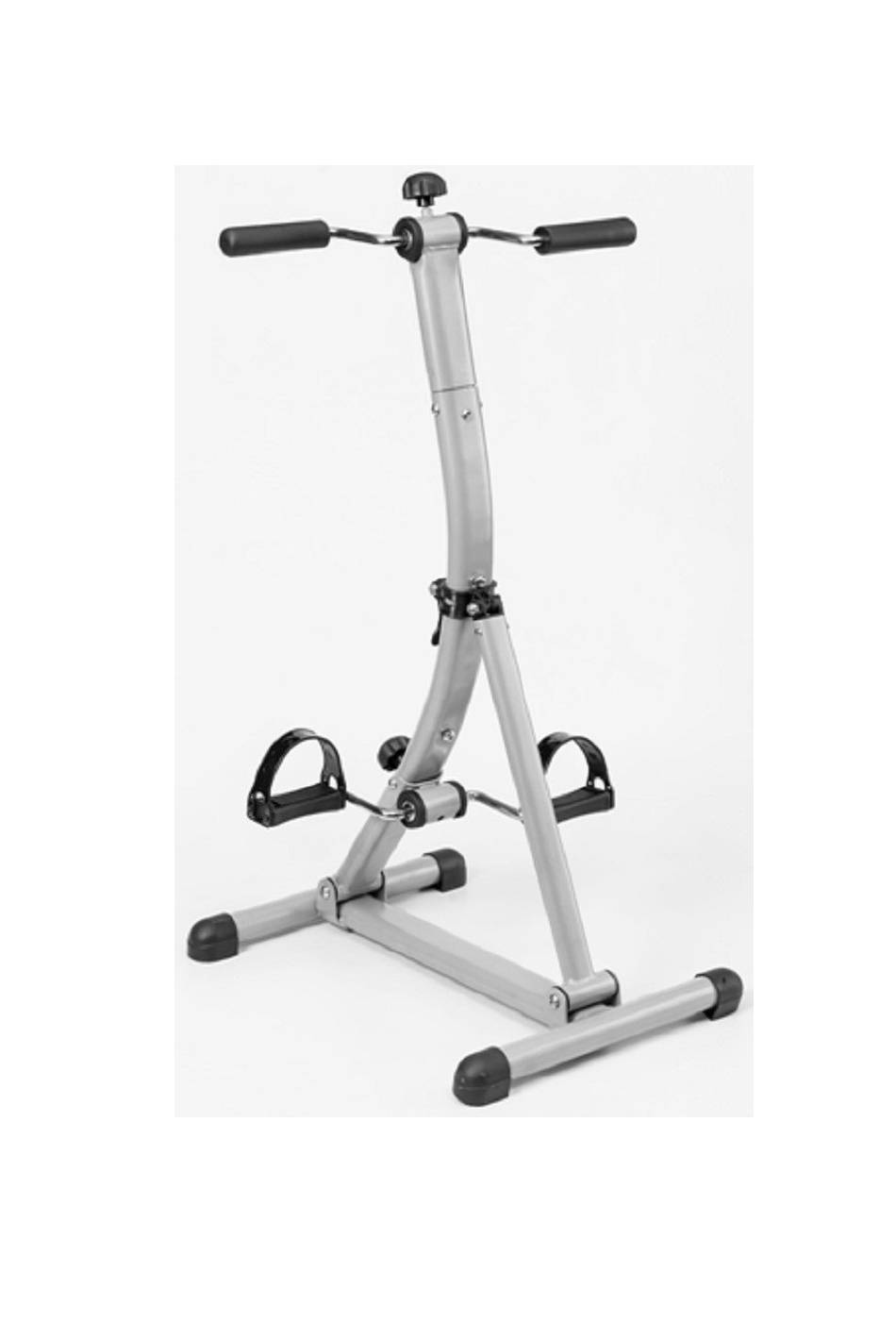

2-IN-1 EXERCISE PEDALER
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1333 and is the answer not in the manual?

Questions and answers

Summary of Contents for SPARTAN sport 1333

  • Page 1 2-IN-1 EXERCISE PEDALER USER‘S MANUAL...
  • Page 2 CAUTION: Read these instructions before using your Exercise Pedaler! Always follow your physician’s recommendations when planning your personal exercise program. You should be aware of your limits and adapt your exercise accordingly. Always use common sense when exercising. Keep children or pets away from the trainer when you are using it or when you leave it unsupervised.
  • Page 3 SCREW SETS LIST:...
  • Page 4 ASSEMBLY INSTRUCTIONS: STEP 1 STEP 2 Assemble parts (2) & (5) Assemble the pedal set (4) on the upright post (2) by securing 3 by securing 3 screws (20). screws (20) and bottom knob (23). STEP 3 STEP 4 Put the upright post (2) on Attach the front tube (3) to the the main base (1) and upright post (2) and secure with...
  • Page 5 USER‘S INSTRUCTIONS Position adjustable: Top stopper Glide area ※According to your Favorite position Procedure: Pull apart the latch, adjust the position to your desired location, secure the latch. When securing the latch, avoid the “Glide area” (where the indent in the metal is. Also, the shaded area on the picture above).
  • Page 6 EXERCISES: This trainer can be used for an outstanding aerobic exercise of your legs as well as your arms. To use the trainer as bicycle (see figure 1), place it on the floor where the pedal movements will not be hindered by other objects. Make sure the surface is horizontal and non-skid. Arms &...
  • Page 7 Explosion drawing:...
  • Page 8 Parts List: Item No. Description Qty. Item No. Description Qty. Main Base Handle Upright Post Plastic Bushing-B Front Tube Hex Head Bolt M8 X 14 Pedal Set Footrest Handgrip Set Screw M6 x 15 End Cap Bottom Tension Knob Plastic Tube Cover Plastic Connector Hex Head Bolt Strap...
