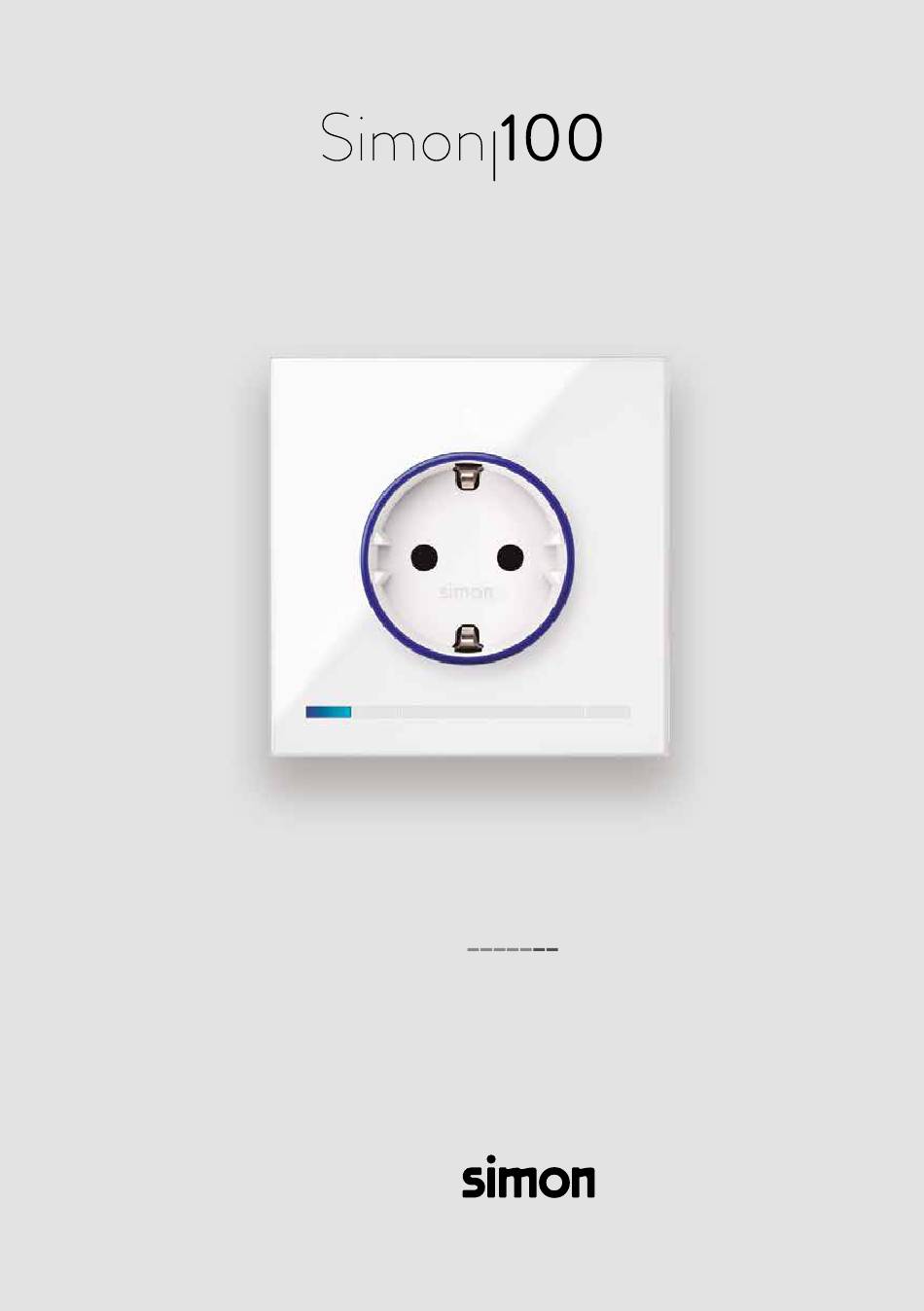

  • Page 1 User Guide...
  • Page 2 Index User Guide Simon | 100 iO...
  • Page 3 Welcome to the Simon 100 iO universe - page 5 - iO Devices - page 6 - Is your installation already configured? Configured - page 14 - Not Configured - page 22 - Associations with master switch - page 30 -...
  • Page 4 Welcome to the Simon 100 iO universe User Guide Simon | 100 iO...

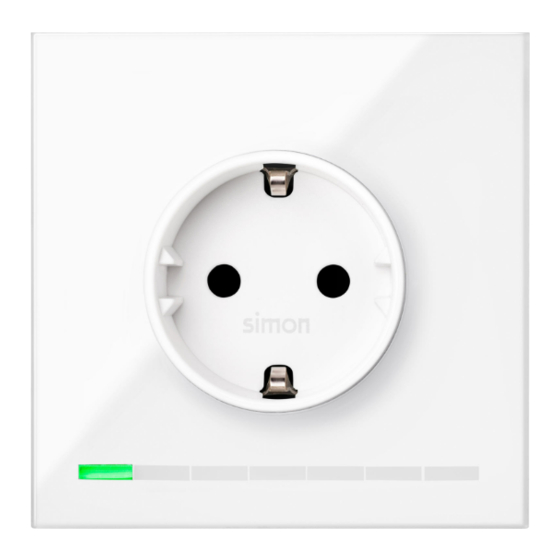

  • Page 5 Simon 100 iO is the technology that allows you to digitalise spaces and create experiences in your home like never before. Follow the tips in this guide step by step and enjoy the Simon 100 iO universe. Your mobile phone iO Hub socket °C...
  • Page 6 Devices Available functions for your Simon 100 iO universe User Guide Simon | 100 iO...
  • Page 7 Hub socket iO Socket iO Thermostat iO Dimmer iO Switches for iO Switch Switches Blinds Master Switches Master Switch Master Switch Switch iO dimmer iO blinds iO master switch Simon | 100 iO User Guide...
  • Page 8 Follow these steps to connect to your home User Guide Simon | 100 iO...
  • Page 9 Download the Simon 100 iO app on your mobile device through the app store: Sign into your user account: If you don't have an If you have an account, account, sign up for one. log in. Simon | 100 iO...
  • Page 10 Activate the Simon iO HUB socket: Once you have signed in to your account, a welcome screen will appear. Press “Start” to continue. Press the button until the LED blinks faster. Approximately 10 seconds. The HUB will generate a code by lighting up different LEDs.
  • Page 11 Connect to the HUB socket's Wi-Fi: The Simon iO HUB Socket emits a Wi-Fi signal. Connect to it to stay in control from your mobile device. This Wi-Fi source does not Go back to the application have internet, so your mobile and press “Continue”.
  • Page 12 Is your installation already configured? User Guide Simon | 100 iO...
  • Page 13 Depending on whether or not the installation is configured, one of the following screens will appear: Configured Not Configured Page 14 Page 22 To continue with the configuration, go to the page indicated below. Simon | 100 iO User Guide...
  • Page 14 My installation is configured: Click on “Save” to download your installation. User Guide Simon | 100 iO...
  • Page 15 If you have Wi-Fi, add it to be able to control your house no matter where you are. Choose your Wi-Fi network and enter your password Ensure that the Wi-Fi is 2.4 GHz and not another frequency (5G). Simon | 100 iO User Guide...
  • Page 16 Check if your dimmer switches or blinds need to be calibrated: You can calibrate the dimmer switches and blinds through the App or through the physical mechanism itself by pressing the key for 10 seconds: 10 seconds User Guide Simon | 100 iO...
  • Page 17 By selecting the switch with this icon, you will directly access the device that you need to associate or assign an experience: Associations with master Experiences with master switch see page 30 switch see page 39 Simon | 100 iO User Guide...
  • Page 18 If any device is blinking intermittently it needs to be added on the App, go to step 10. If they are NOT blinking, this means that your devices have been added and you can proceed directly to configuring your experiences on page 30. User Guide Simon | 100 iO...
  • Page 19 Adding Simon iO devices: We are going to add your devices (switches, sockets and thermostats) with your iO HUB socket through the App. 3 seconds 3 seconds All the blinking devices will be included Simon | 100 iO User Guide...
  • Page 20 You and your house are now connected To discover all the possibilities of the Simon 100 iO universe see all the possible experiences on page 30 of this guide. You will find more possibilities in the applications guide. User Guide...
  • Page 21 Simon | 100 iO User Guide...
  • Page 22 My installation is NOT configured: Starting from this screen, you can activate remote access to control your home no matter where you are. User Guide Simon | 100 iO...
  • Page 23 If you have Wi-Fi in your home, or you want to activate remote access, click on “Yes”. Choose your Wi-Fi network and enter your password Ensure that the Wi-Fi is 2.4 GHz and not another frequency (5G) Simon | 100 iO User Guide...
  • Page 24 Wi-Fi signal, connect to it internet, so your mobile so that you can continue device may notify you to with the configuration. change the network. Do not change it and ensure that you remain connected to HUB_xxx User Guide Simon | 100 iO...
  • Page 25 Adding Simon iO devices: We are going to add your devices (switches, sockets and thermostats) with your iO HUB socket through the App. 3 seconds All the blinking devices will 3 seconds be included If there is an important update, the system will not allow you to register any devices.
  • Page 26 Check if your switches or blinds need to be calibrated: You can calibrate the dimmer switches and blinds through the App or through the physical mechanism itself by pressing the key for 10 seconds: 10 seconds User Guide Simon | 100 iO...
  • Page 27 By selecting the switch with this icon, you will directly access the device that you need to associate Experiences with master Associations with master switch see page 39 switch see page 30 Simon | 100 iO User Guide...
  • Page 28 You and your house are now connected To discover all the possibilities of the Simon 100 iO universe, see all the possible experiences on page 30 of this guide. You will find more possibilities in the applications guide. User Guide...
  • Page 29 Simon | 100 iO User Guide...
  • Page 30 Associations with the master switch User Guide Simon | 100 iO...
  • Page 31 With the Simon iO Master Dimmer Switch, you can dim a light that is wired to a Simon iO Dimmer Switch from different points with the “Associate” function: iO Dimmer Switch iO Master Dimmer Switches Simon | 100 iO User Guide...
  • Page 32 With the Simon iO Master Switch for blinds, you can control more than one set of blinds, awnings, curtains and so on at the same time with the Simon iO Switch for Blinds using the “Associate” function: iO Master Switch for Blinds...
  • Page 33 With the iO Simon Master Switch, you can control a Simon iO device from different points with the “Associate” function: iO Switch iO Master Switches Simon | 100 iO User Guide...
  • Page 34 Experiences Experiences are solutions that allow you to activate your space and interact with it differently to make your life easier. There are two types of experiences: Simon Experiences and Personalised Experiences. User Guide Simon | 100 iO...
  • Page 35 Simon offers different predefined experiences so that you can enjoy them with just a few clicks. Good morning Simon experience allows you to configure a pleasant way to wake up, with lights and blinds that flow with the morning's rhythm. Sweet dreams This experience allows you to configure your rooms so your kids can go to bed in a pleasant atmosphere.
  • Page 36 Good morning Example: 07:10 07:30 07:30 The light slowly turns on in Your window opens until Your Simon iO socket your room. you can see the sunlight. activates to turn on the bathroom heater, preparing a comfortable morning bath. How to configure it:...
  • Page 37 Master key or through default, the lights will turn prepare your child for bed the App. based on the Sleep Timer. off and a night light in the socket will turn on. How to configure it: Simon | 100 iO User Guide...
  • Page 38 Simon 100 iO devices to create different environments; activating them through hourly programmes, a master switch or a virtual key from the Simon 100 iO App. Several ideas for experiences are available for you in the applications guide that accompanies this user guide.
  • Page 39 ON, establishing a status to be involved in the for each device (on, off, for each device. experience. dimming level...) OFF, all the devices will turn off. Simon | 100 iO User Guide...
  • Page 40 Personalised experiences by hourly programmes: You can set days of the week and time frames for when this experience starts and finishes (optional). User Guide Simon | 100 iO...
  • Page 41 Simon | 100 iO User Guide...

  • Page 42: Description Of The Screens

    Description of the screens User Guide Simon | 100 iO...
  • Page 43 Simon | 100 iO User Guide...
  • Page 44 As long as you have remote access activated. If you do not have any experience set up, a list of predefined experiences will appear on the screen by default. User Guide Simon | 100 iO...
  • Page 45 “Turn off all devices” Obtain more information about the button. terms of use. Log out and synchronise your When you press the notification installation. icon you will access the device's settings to solve the reported problem. Simon | 100 iO User Guide...
  • Page 46 User Guide Simon | 100 iO...
  • Page 47 Our website: simonelectric.com where you can find answers to the most frequently asked questions, video tutorials, downloadable guides, etc. Or contact our Customer Technical Assistance Service: Tel: 902 109 700 sat-simon100@simon.es Simon | 100 iO User Guide...
  • Page 48 Customer Service Showroom open to the public SIMON, S.A.U. Technical Assistance Diputación, 390-392 Sancho de Ávila, 66 Tel. (+34) 902 109 700 08013 Barcelona 08018 Barcelona E-mail: sat@simon.es Tel. (+34) 902 109 700 Tel. (+34) 902 109 100...
