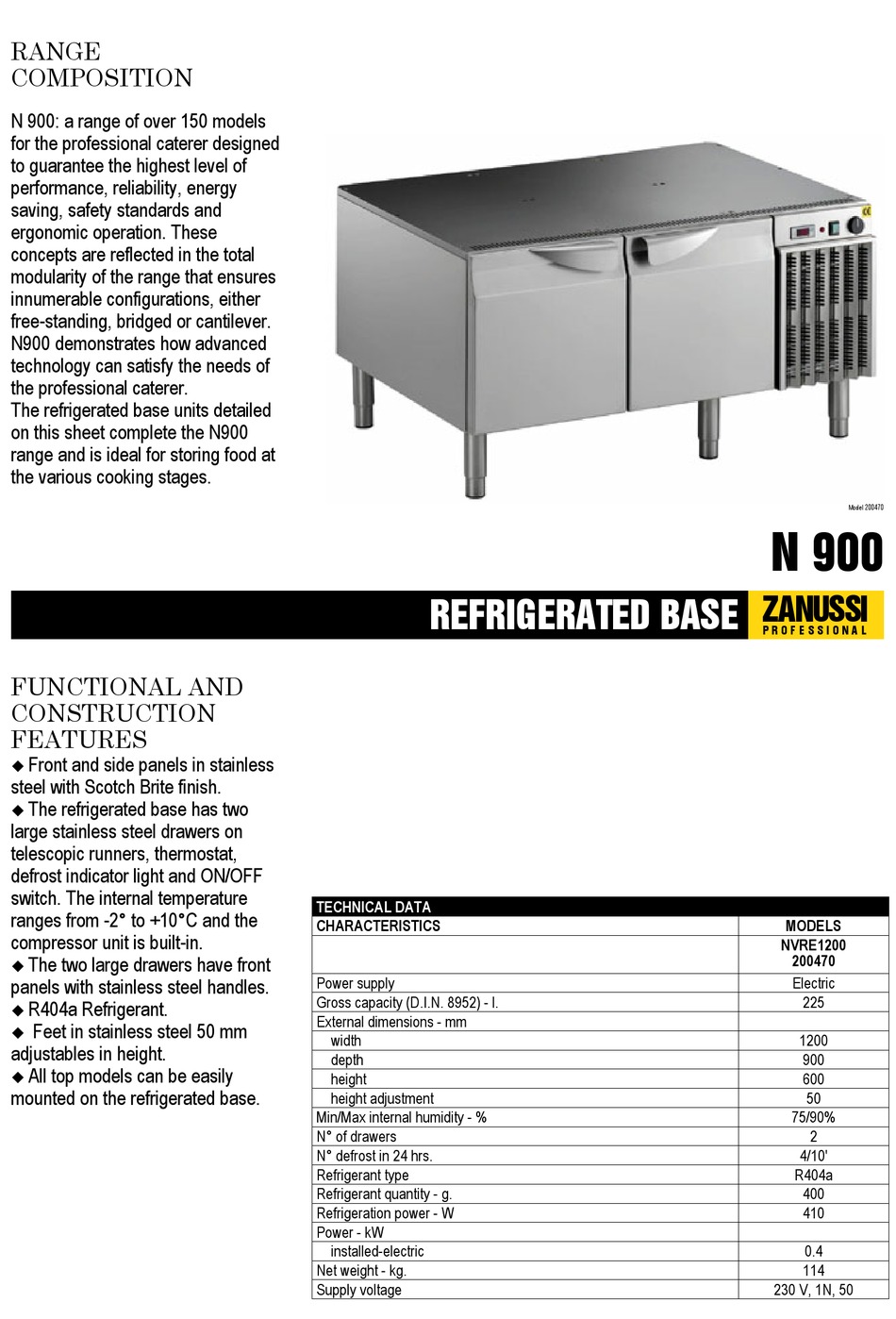

Zanussi 200470 Specifications

RANGE
COMPOSITION
N 900: a range of over 150 models
for the professional caterer designed
to guarantee the highest level of
performance, reliability, energy
saving, safety standards and
ergonomic operation. These
concepts are reflected in the total
modularity of the range that ensures
innumerable configurations, either
free-standing, bridged or cantilever.
N900 demonstrates how advanced
technology can satisfy the needs of
the professional caterer.
The refrigerated base units detailed
on this sheet complete the N900
range and is ideal for storing food at
the various cooking stages.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
Front and side panels in stainless
�
steel with Scotch Brite finish.
The refrigerated base has two
�
large stainless steel drawers on
telescopic runners, thermostat,
defrost indicator light and ON/OFF
switch. The internal temperature
ranges from -2° to +10°C and the
compressor unit is built-in.
The two large drawers have front
�
panels with stainless steel handles.
R404a Refrigerant.
�
Feet in stainless steel 50 mm
�
adjustables in height.
All top models can be easily
�
mounted on the refrigerated base.
REFRIGERATED BASE
TECHNICAL DATA
CHARACTERISTICS
Power supply
Gross capacity (D.I.N. 8952) - l.
External dimensions - mm
width
depth
height
height adjustment
Min/Max internal humidity - %
N° of drawers
N° defrost in 24 hrs.
Refrigerant type
Refrigerant quantity - g.
Refrigeration power - W
Power - kW
installed-electric
Net weight - kg.
Supply voltage
Model 200470
N 900
ZANUSSI
P R O F E S S I O N A L
MODELS
NVRE1200
200470
Electric
225
1200
900
600
50
75/90%
2
4/10'
R404a
400
410
0.4
114
230 V, 1N, 50
