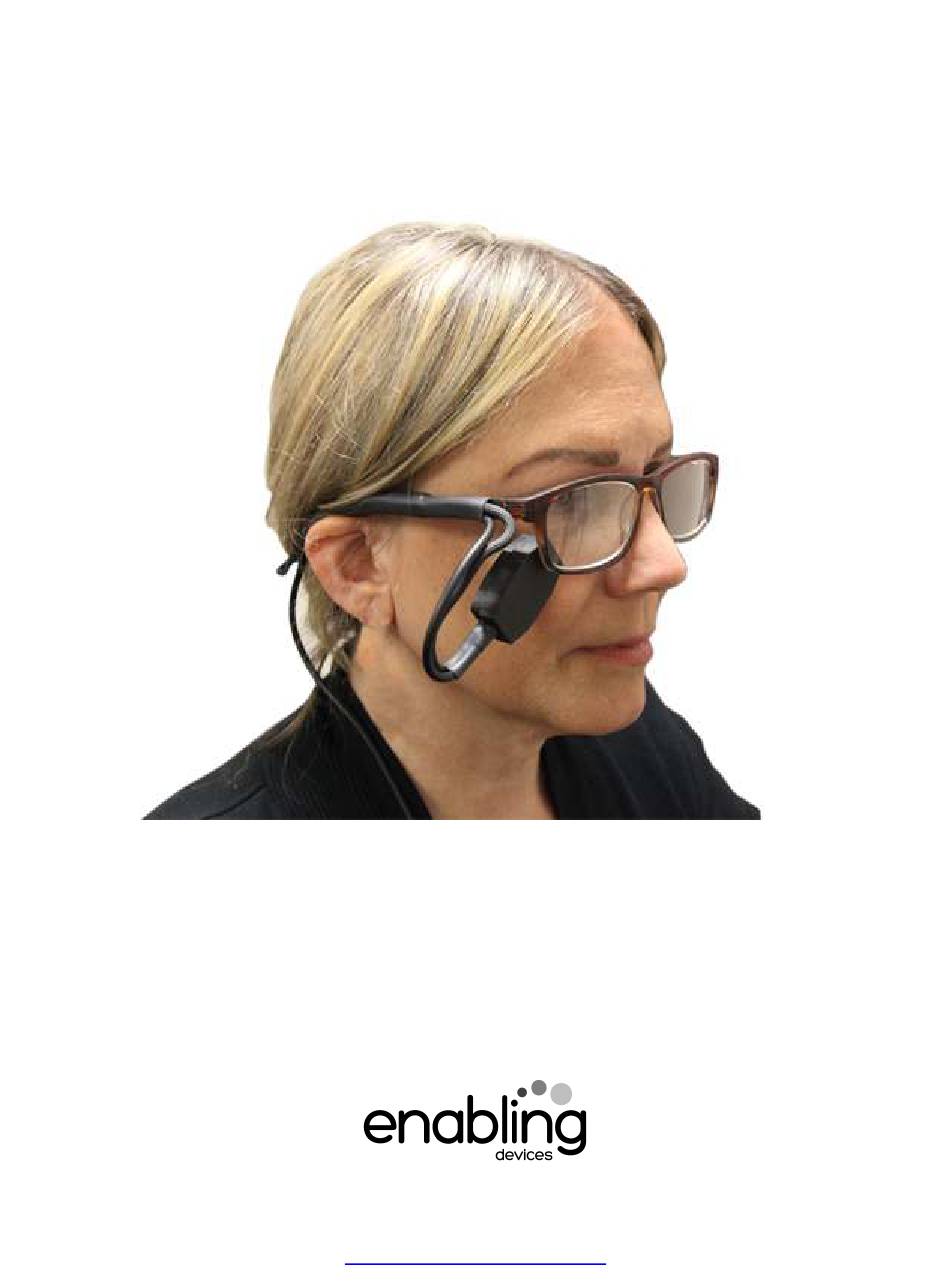

- Page 1 Eye Blink Switch New Flex Arm Design #9008 385 Warburton Avenue Hastings-on-Hudson, NY 10706 Tel. 914-478-0960 / Fax 914-478-7030 www.enablingdevices.com...

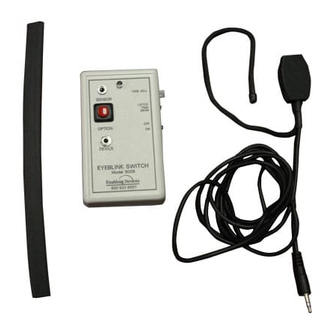

- Page 2 Easy to position with unique mounting! Just aiming the sensor at the eye, above or below the eye will allow the user to control communication devices, toys, or computers. Controls give momentary, timed (1 to 120 seconds), or latched output. Internal circuitry can be set to activate with each eye blink or with every double eye blink to ignore normal eye blinking.
- Page 3 4. Plug the end of the sensor’s cord into the jack labeled SENSOR on the control box Make sure you have it plugged in all the way, there should be no gaps. Next plug one end of the included double ended male to male cord into the jack labeled DEVICE on the control box.
- Page 4 6. Once the Flex Arm is attached, the sensor needs to be positioned so it is aiming either straight in-line with the user’s eye, above the eye or below the eye (see Photos). If the user does not need the use of glasses, we recommend removing the lens from the side where the sensor is mounted.
- Page 5 Please Note: Sensor needs to be as close the eyeglass lens as possible. The sensor only has a short range (approximately 10cm) it can detect an eye blink. If the sensor is positioned to far away from the eye it will not work or be very inconsistent.
- Page 6 Cleaning Information: • You can clean the SENSOR with a clean soft cloth “ONLY”, do not use any type of cleaner on the SENSOR, doing so will damage the SENSOR and void your warrantee. • The control box can be wiped clean with any household multi-purpose cleaner and disinfectant.
