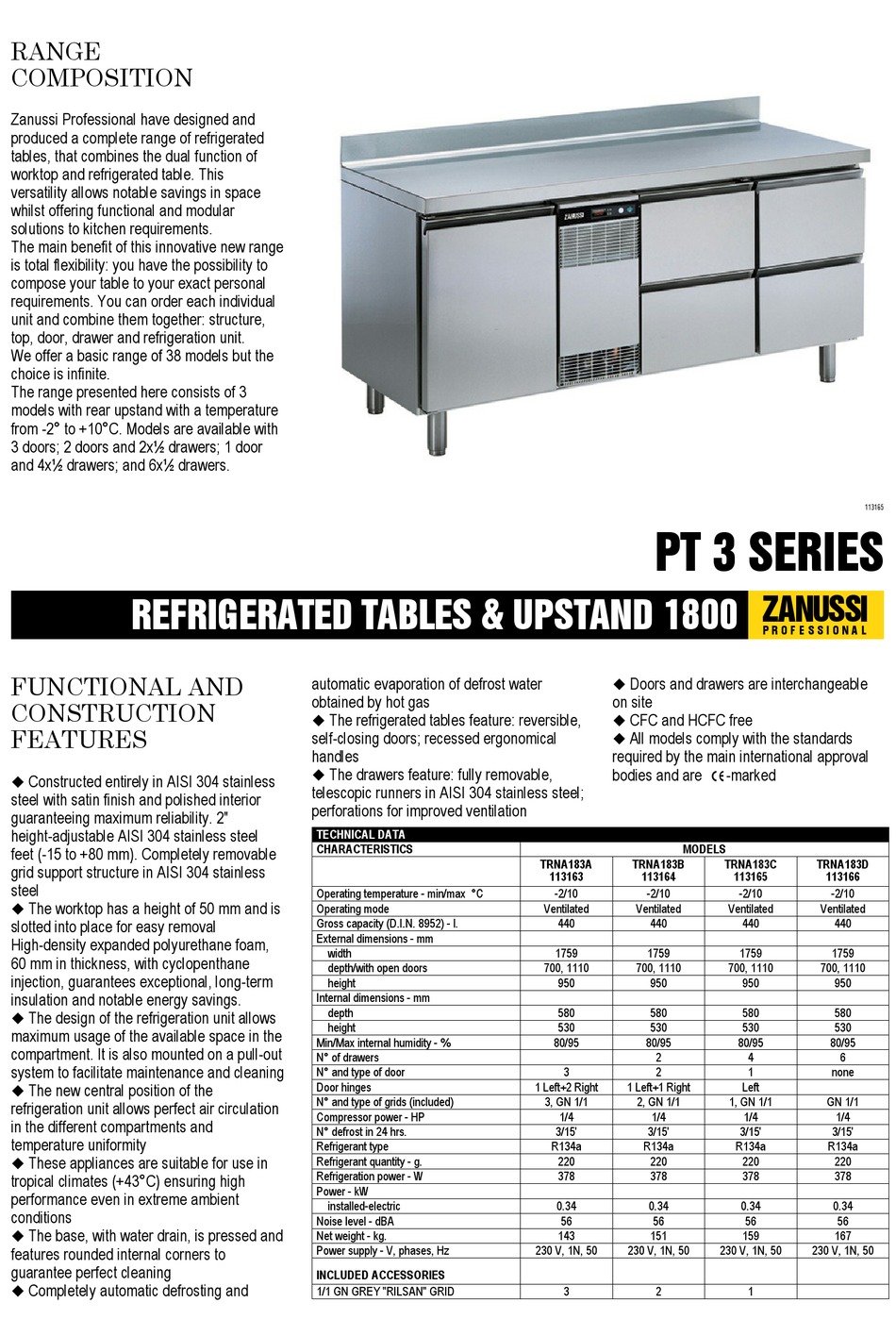

Zanussi 113163 Specifications

RANGE
COMPOSITION
Zanussi Professional have designed and
produced a complete range of refrigerated
tables, that combines the dual function of
worktop and refrigerated table. This
versatility allows notable savings in space
whilst offering functional and modular
solutions to kitchen requirements.
The main benefit of this innovative new range
is total flexibility: you have the possibility to
compose your table to your exact personal
requirements. You can order each individual
unit and combine them together: structure,
top, door, drawer and refrigeration unit.
We offer a basic range of 38 models but the
choice is infinite.
The range presented here consists of 3
models with rear upstand with a temperature
from -2° to +10°C. Models are available with
3 doors; 2 doors and 2x½ drawers; 1 door
and 4x½ drawers; and 6x½ drawers.
REFRIGERATED TABLES & UPSTAND 1800
FUNCTIONAL AND
CONSTRUCTION
FEATURES
Constructed entirely in AISI 304 stainless
�
steel with satin finish and polished interior
guaranteeing maximum reliability. 2"
height-adjustable AISI 304 stainless steel
feet (-15 to +80 mm). Completely removable
grid support structure in AISI 304 stainless
steel
The worktop has a height of 50 mm and is
�
slotted into place for easy removal
High-density expanded polyurethane foam,
60 mm in thickness, with cyclopenthane
injection, guarantees exceptional, long-term
insulation and notable energy savings.
The design of the refrigeration unit allows
�
maximum usage of the available space in the
compartment. It is also mounted on a pull-out
system to facilitate maintenance and cleaning
The new central position of the
�
refrigeration unit allows perfect air circulation
in the different compartments and
temperature uniformity
These appliances are suitable for use in
�
tropical climates (+43°C) ensuring high
performance even in extreme ambient
conditions
The base, with water drain, is pressed and
�
features rounded internal corners to
guarantee perfect cleaning
Completely automatic defrosting and
�
automatic evaporation of defrost water
obtained by hot gas
The refrigerated tables feature: reversible,
�
self-closing doors; recessed ergonomical
handles
The drawers feature: fully removable,
�
telescopic runners in AISI 304 stainless steel;
perforations for improved ventilation
TECHNICAL DATA
CHARACTERISTICS
Operating temperature - min/max °C
Operating mode
Gross capacity (D.I.N. 8952) - l.
External dimensions - mm
width
depth/with open doors
height
Internal dimensions - mm
depth
height
Min/Max internal humidity - %
N° of drawers
N° and type of door
Door hinges
N° and type of grids (included)
Compressor power - HP
N° defrost in 24 hrs.
Refrigerant type
Refrigerant quantity - g.
Refrigeration power - W
Power - kW
installed-electric
Noise level - dBA
Net weight - kg.
Power supply - V, phases, Hz
INCLUDED ACCESSORIES
1/1 GN GREY "RILSAN" GRID
PT 3 SERIES
Doors and drawers are interchangeable
�
on site
CFC and HCFC free
�
All models comply with the standards
�
required by the main international approval
bodies and are
MODELS
TRNA183A TRNA183B
113163 113164
-2/10 -2/10
Ventilated Ventilated
440 440
1759 1759
700, 1110 700, 1110
950 950
580 580
530 530
80/95 80/95
2
3 2
1 Left+2 Right 1 Left+1 Right
3, GN 1/1 2, GN 1/1
1/4 1/4
3/15' 3/15'
R134a R134a
220 220
378 378
0.34 0.34
56 56
143 151
230 V, 1N, 50 230 V, 1N, 50
3 2
113165
ZANUSSI
P R O F E S S I O N A L
H -marked
TRNA183C TRNA183D
113165 113166
-2/10 -2/10
Ventilated Ventilated
440 440
1759 1759
700, 1110 700, 1110
950 950
580 580
530 530
80/95 80/95
4 6
1 none
Left
1, GN 1/1 GN 1/1
1/4 1/4
3/15' 3/15'
R134a R134a
220 220
378 378
0.34 0.34
56 56
159 167
230 V, 1N, 50 230 V, 1N, 50
1
