Summary of Contents for Zanussi ZKF641H

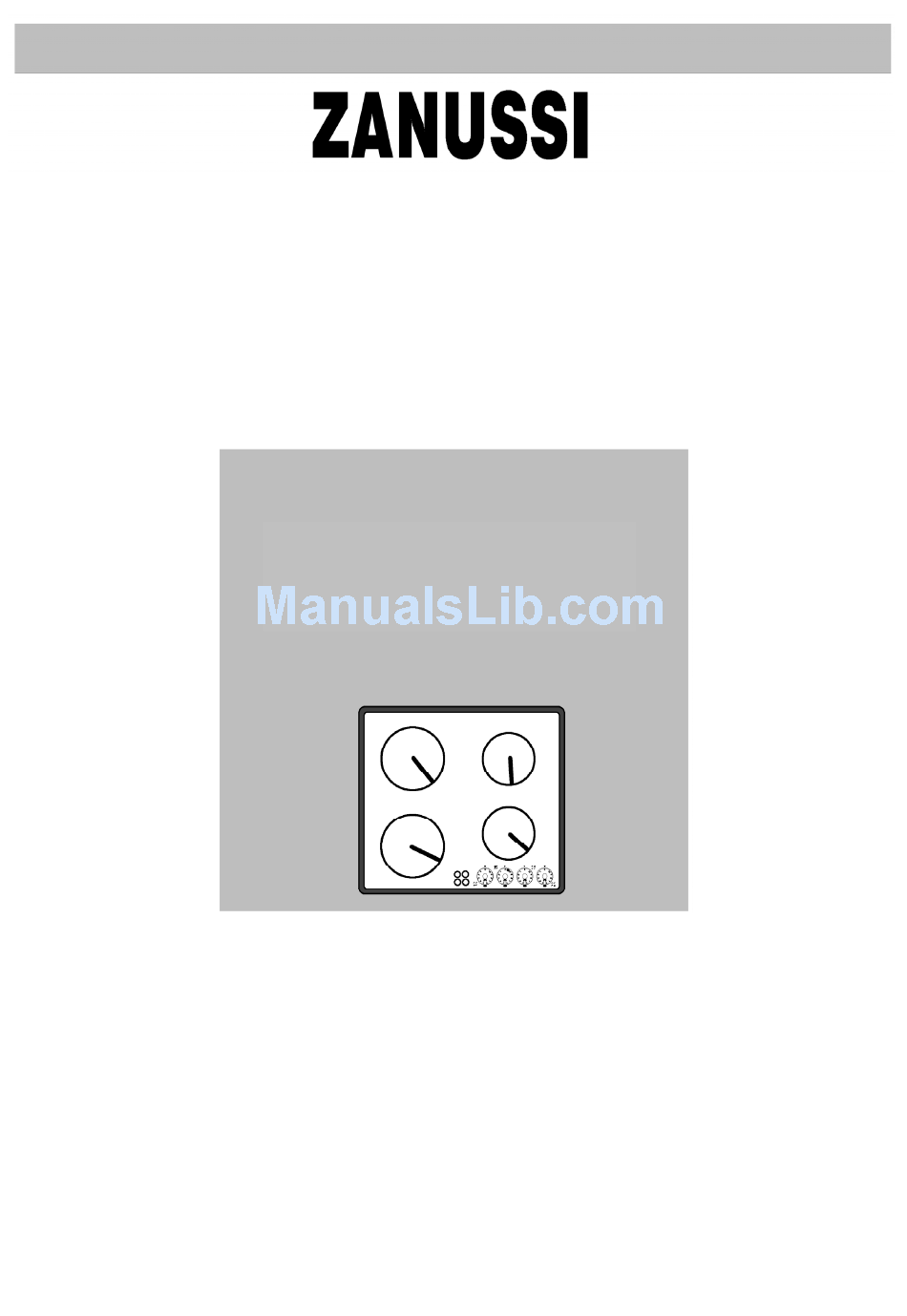

- Page 1 Electric Ceramic Hob ZKF641H Operating and Installation Instructions...
-
Page 2: Table Of Contents
User Instructions Important hints on safety Description of the appliance Before first use Operating Instructions Ceramic glass surface Heat Controls & Settings Residual heat indicator Pots and pans Energy Saving tips Maintenance and Cleaning Something Not Working Customer Care Service and Spare Parts Guarantee Conditions Service Force Centres RATING PLATE... -
Page 3: Important Hints On Safety
This safety information is provided in the interests of your safety. Please read it carefully before installing or using the hob. If you are unsure if the meaning of any of the warnings please contact our Customer Care Department. Installation •... -
Page 4: Description Of The Appliance
1. Cooking Zone ø 180 mm 2. Cooking Zone ø 180 mm 3. Cooking Zone ø 145 mm 4. Cooking Zone ø 145 mm 5. Residual Heat Indicator 6. Heat setting control knobs Voltage AC 230 V Total connected Load 6.0 kW Please check that the appliance was delivered in perfect condition. -
Page 5: Operating Instructions
Ceramic glass surface The cooking surface is made of proven ceramic glass. The surface is non-porous and, in addition, insensitive to quick variations in temperature. Therefore pots may be moved from a hot to a cold zone. When switching on the cooking zones you may hear a short-term audible buzzing sound of the radiant elements. -
Page 6: Residual Heat Indicator
Residual Heat indicator Each cooking zone is related to one indicator. The warning lamp illuminates when the surface of the corresponding cooking zone reaches a temperature which could cause burns. The indicator remains illuminated after the area heated has been switched off as long as the residual heat of the corresponding cooking zone could cause burns. -
Page 7: Maintenance And Cleaning
Before cleaning, make sure that the hob is cool and disconnected from the power supply. Never use aggressive or abrasive agents, such as oven sprays, stain or rust removers, scouring powder, or sponges with an abrasive effect. Special cleaning agents such as Vitroclen and ceramic glass scrapers are available from department stores and electrical specialists. -
Page 8: Something Not Working
• Discolouration appear in the cooking zone. If after carrying out the above checks there is still a fault, contact your local Zanussi Service Force Centre. In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact... -
Page 9: Guarantee Conditions
We Zanussi undertake that if within 24 months of the date of the purchase this Zanussi appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will, at our option repair or replace the same FREE OF CHARGE for labour,... -
Page 10: Service Force Centres
To contact your local Service Force Centre telephone CHANNEL ISLANDS GUERNSEY Guernsey Electricity PO Box 4 Vale, Guernsey Channel Islands GY1 3AD JERSEY Jersey Electricity Company Haut De L’orme Rue De Haut De L’orme Trinity Jersey Channel Islands JE3 5FG SCOTLAND ABERDEEN 54 Claremont Street... - Page 11 To contact your local Service Force Centre telephone MIDLANDS BIRMINGHAM 66 Birch Road East Wyrley Trading Estate Witton Birmingham B6 7DB BOURNE Pinfold Road Bourne PE10 9HT BRIDGNORTH 68 St. Mary’s Street Bridgnorth Shropshire WV16 4DR GLOUCESTER 101 Rycroft Street Gloucester GL1 4NB HEREFORD...
-
Page 12: Technical Details
Please examine the appliance for any damage. If the appliance is damaged contact your retailer before the appliance is connected. Please keep packaging away from children and dispose of with due regard for the environment. Important Safety Requirements • The hob must be installed by a qualified electrician / competent person. -
Page 13: Building-In
When building in ceramic glass cooking areas the front cross-rail of the build-in cupboard must be removed in order to have the heat radiating off escape without any obstacles. The space under the hob unit must be closed at all sides in a way that the lower side of the cooking area is no longer accessible. -
Page 14: Electrical Connection
Electrical Connection The mains connection must be carried out by an expert electrician. The VDE-regulations and the valid prescriptions by the local power supply boards have to be compiled with. Prior to connection it should be checked whether the voltage stated on the type plate - i.e. the nominal voltage of the appliance and of the oven/control box –... - Page 16 © Electrolux Household Appliances Limited 2001...
