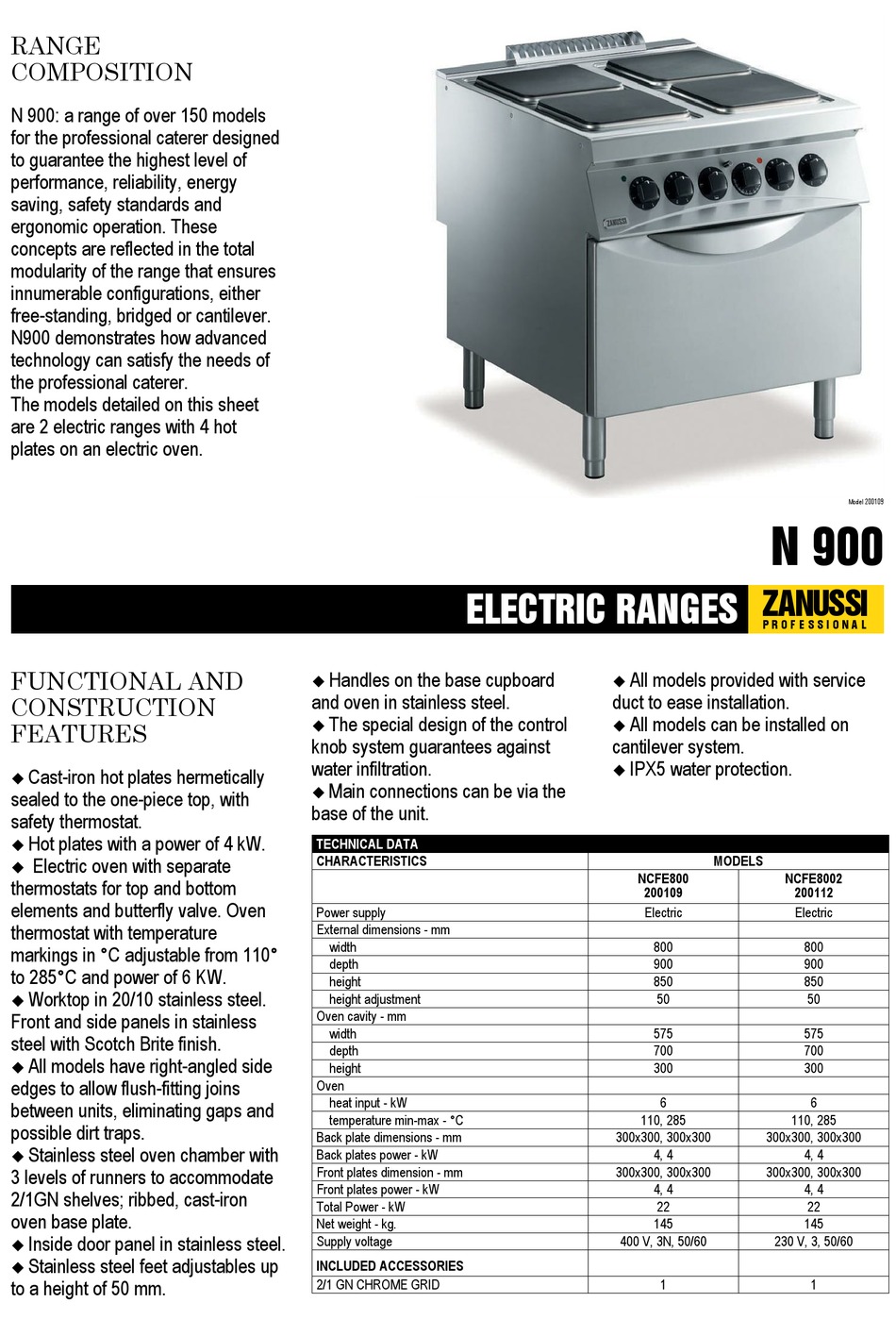

Zanussi 200109 Specifications

RANGE
COMPOSITION
N 900: a range of over 150 models
for the professional caterer designed
to guarantee the highest level of
performance, reliability, energy
saving, safety standards and
ergonomic operation. These
concepts are reflected in the total
modularity of the range that ensures
innumerable configurations, either
free-standing, bridged or cantilever.
N900 demonstrates how advanced
technology can satisfy the needs of
the professional caterer.

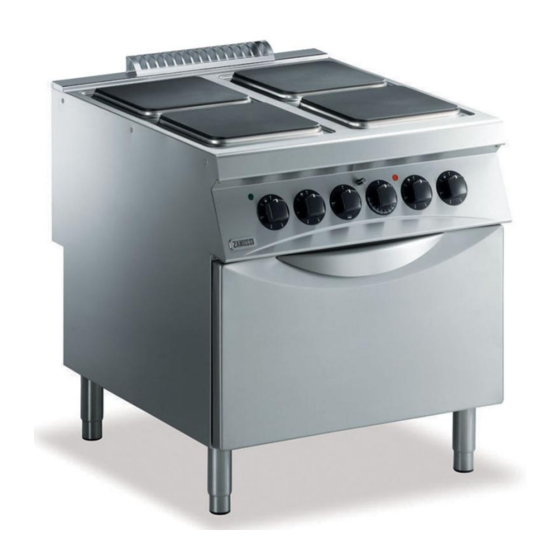

The models detailed on this sheet
are 2 electric ranges with 4 hot
plates on an electric oven.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
Cast-iron hot plates hermetically
�
sealed to the one-piece top, with
safety thermostat.
Hot plates with a power of 4 kW.
�
Electric oven with separate
�
thermostats for top and bottom
elements and butterfly valve. Oven
thermostat with temperature
markings in °C adjustable from 110°
to 285°C and power of 6 KW.
Worktop in 20/10 stainless steel.
�
Front and side panels in stainless
steel with Scotch Brite finish.
All models have right-angled side
�
edges to allow flush-fitting joins
between units, eliminating gaps and
possible dirt traps.
Stainless steel oven chamber with
�
3 levels of runners to accommodate
2/1GN shelves; ribbed, cast-iron
oven base plate.
Inside door panel in stainless steel.
�
Stainless steel feet adjustables up
�
to a height of 50 mm.
ELECTRIC RANGES
Handles on the base cupboard
�
and oven in stainless steel.
The special design of the control
�
knob system guarantees against
water infiltration.
Main connections can be via the
�
base of the unit.
TECHNICAL DATA
CHARACTERISTICS
Power supply
External dimensions - mm
width
depth
height
height adjustment
Oven cavity - mm
width
depth
height
Oven
heat input - kW
temperature min-max - °C
Back plate dimensions - mm
Back plates power - kW
Front plates dimension - mm
Front plates power - kW
Total Power - kW
Net weight - kg.
Supply voltage
INCLUDED ACCESSORIES
2/1 GN CHROME GRID
N 900
ZANUSSI
P R O F E S S I O N A L
All models provided with service
�
duct to ease installation.
All models can be installed on
�
cantilever system.
IPX5 water protection.
�
MODELS
NCFE800
200109
Electric
800
900
850
50
575
700
300
6
110, 285
300x300, 300x300 300x300, 300x300
4, 4
300x300, 300x300 300x300, 300x300
4, 4
22
145
400 V, 3N, 50/60 230 V, 3, 50/60
1
Model 200109
NCFE8002
200112
Electric
800
900
850
50
575
700
300
6
110, 285
4, 4
4, 4
22
145
1
