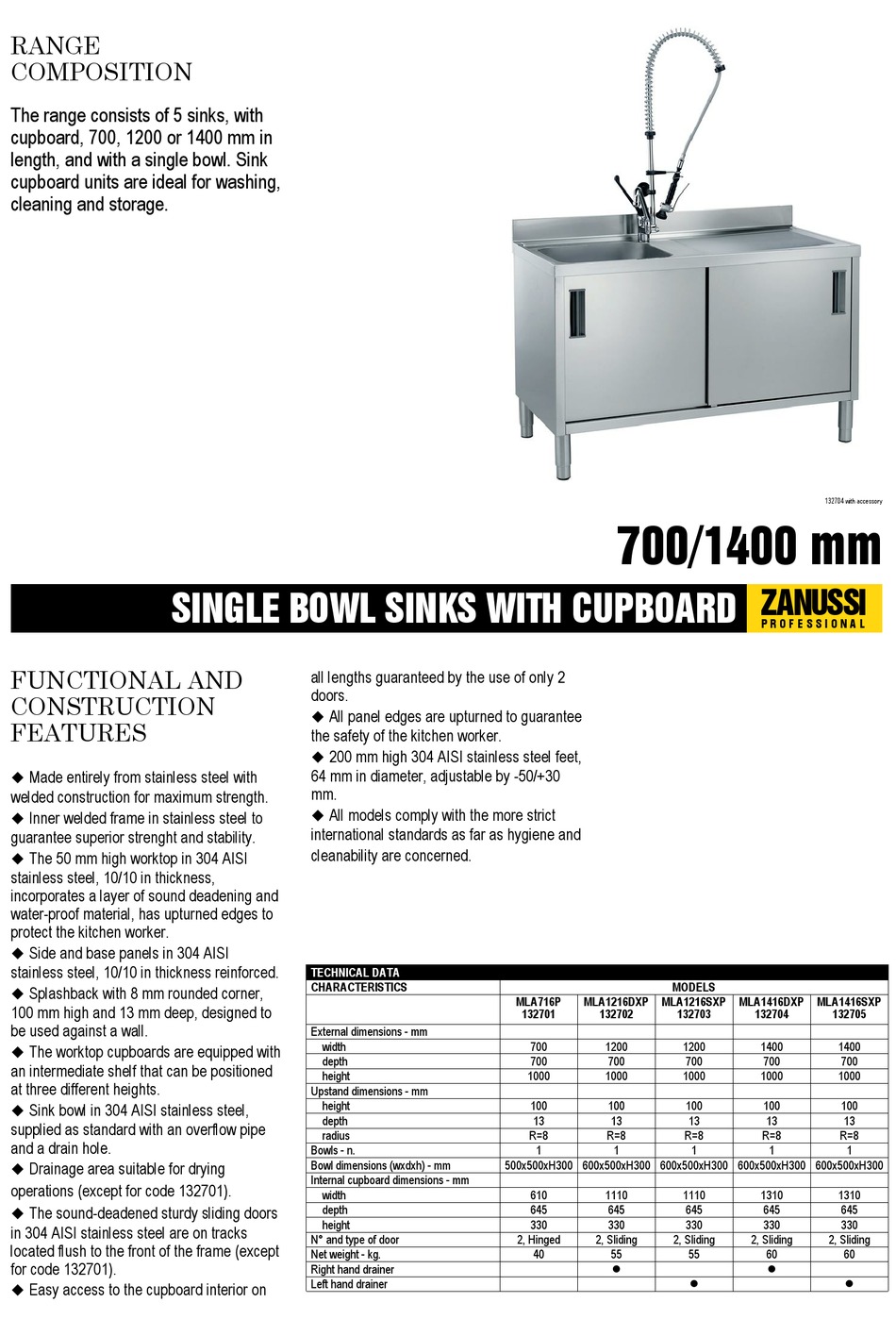

RANGE
COMPOSITION
The range consists of 5 sinks, with
cupboard, 700, 1200 or 1400 mm in
length, and with a single bowl. Sink
cupboard units are ideal for washing,
cleaning and storage.
SINGLE BOWL SINKS WITH CUPBOARD
FUNCTIONAL AND
CONSTRUCTION
FEATURES
Made entirely from stainless steel with
�
welded construction for maximum strength.
Inner welded frame in stainless steel to
�
guarantee superior strenght and stability.
The 50 mm high worktop in 304 AISI
�
stainless steel, 10/10 in thickness,
incorporates a layer of sound deadening and
water-proof material, has upturned edges to
protect the kitchen worker.
Side and base panels in 304 AISI
�
stainless steel, 10/10 in thickness reinforced.
Splashback with 8 mm rounded corner,
�
100 mm high and 13 mm deep, designed to
be used against a wall.
The worktop cupboards are equipped with
�
an intermediate shelf that can be positioned
at three different heights.
Sink bowl in 304 AISI stainless steel,
�
supplied as standard with an overflow pipe
and a drain hole.
Drainage area suitable for drying
�
operations (except for code 132701).
The sound-deadened sturdy sliding doors
�
in 304 AISI stainless steel are on tracks
located flush to the front of the frame (except
for code 132701).
Easy access to the cupboard interior on
�
all lengths guaranteed by the use of only 2
doors.
All panel edges are upturned to guarantee
�
the safety of the kitchen worker.
200 mm high 304 AISI stainless steel feet,
�
64 mm in diameter, adjustable by -50/+30
mm.
All models comply with the more strict
�
international standards as far as hygiene and
cleanability are concerned.
TECHNICAL DATA
CHARACTERISTICS
External dimensions - mm
width
depth
height
Upstand dimensions - mm
height
depth
radius
Bowls - n.
Bowl dimensions (wxdxh) - mm
Internal cupboard dimensions - mm
width
depth
height
N° and type of door
Net weight - kg.
Right hand drainer
Left hand drainer
700/1400 mm
MODELS
MLA716P
MLA1216DXP
MLA1216SXP
132701
132702
700
1200
700
700
1000
1000
100
100
13
13
R=8
R=8
1
1
500x500xH300 600x500xH300 600x500xH300 600x500xH300 600x500xH300
610
1110
645
645
330
330
2, Hinged
2, Sliding
2, Sliding
40
55
l
132704 with accessory
ZANUSSI
P R O F E S S I O N A L
MLA1416DXP
MLA1416SXP
132703
132704
132705
1200
1400
1400
700
700
700
1000
1000
1000
100
100
100
13
13
13
R=8
R=8
R=8
1
1
1110
1310
1310
645
645
645
330
330
330
2, Sliding
2, Sliding
55
60
60
l
l
l
1
