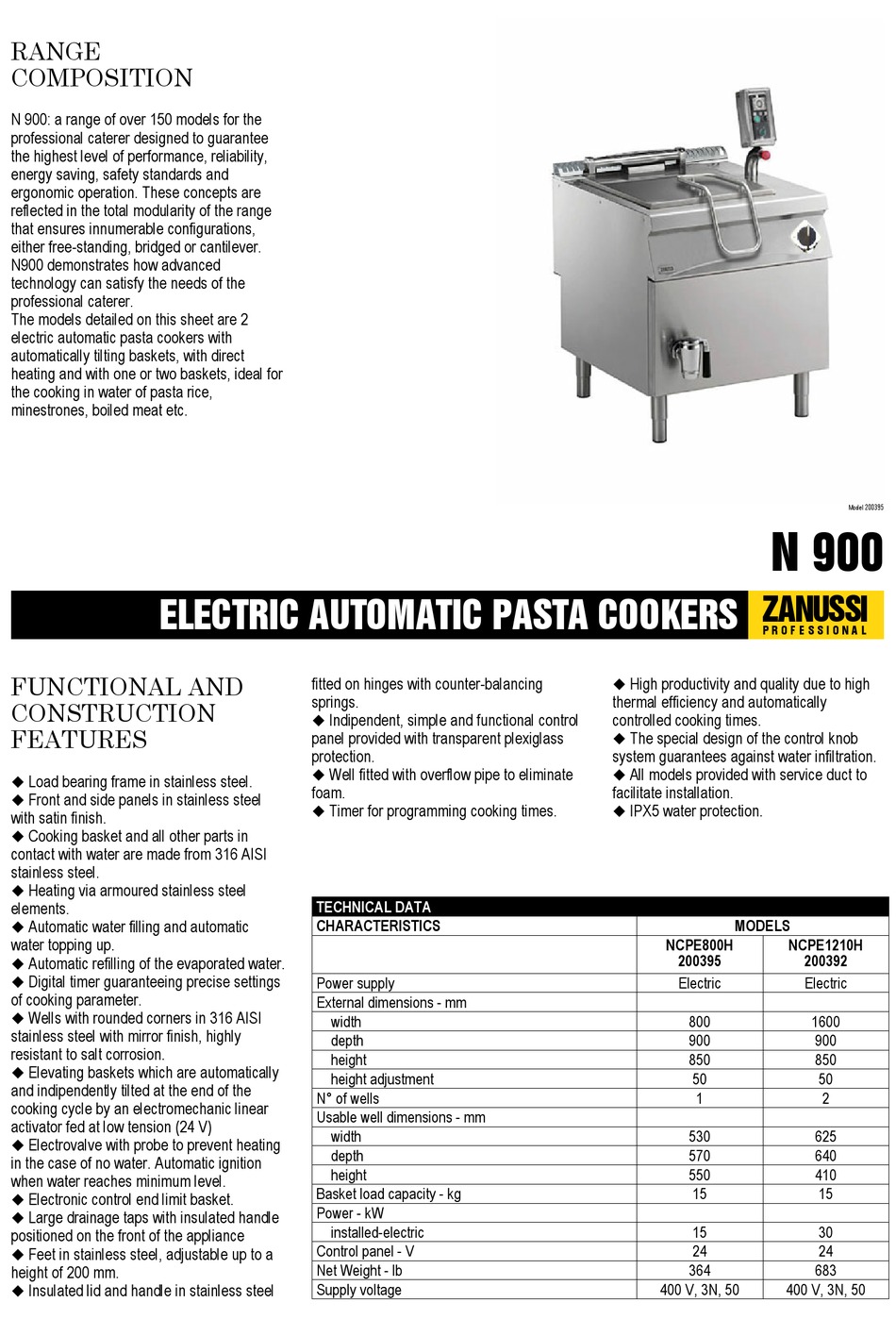

Zanussi 200392 Specifications

RANGE
COMPOSITION
N 900: a range of over 150 models for the
professional caterer designed to guarantee
the highest level of performance, reliability,
energy saving, safety standards and
ergonomic operation. These concepts are
reflected in the total modularity of the range
that ensures innumerable configurations,
either free-standing, bridged or cantilever.
N900 demonstrates how advanced
technology can satisfy the needs of the
professional caterer.
The models detailed on this sheet are 2
electric automatic pasta cookers with
automatically tilting baskets, with direct
heating and with one or two baskets, ideal for
the cooking in water of pasta rice,
minestrones, boiled meat etc.
ELECTRIC AUTOMATIC PASTA COOKERS
FUNCTIONAL AND
CONSTRUCTION
FEATURES
Load bearing frame in stainless steel.
�
Front and side panels in stainless steel
�
with satin finish.
Cooking basket and all other parts in
�
contact with water are made from 316 AISI
stainless steel.
Heating via armoured stainless steel
�
elements.
Automatic water filling and automatic
�
water topping up.
Automatic refilling of the evaporated water.
�
Digital timer guaranteeing precise settings
�
of cooking parameter.
Wells with rounded corners in 316 AISI
�
stainless steel with mirror finish, highly
resistant to salt corrosion.
Elevating baskets which are automatically
�
and indipendently tilted at the end of the
cooking cycle by an electromechanic linear
activator fed at low tension (24 V)
Electrovalve with probe to prevent heating
�
in the case of no water. Automatic ignition
when water reaches minimum level.
Electronic control end limit basket.
�
Large drainage taps with insulated handle
�
positioned on the front of the appliance
Feet in stainless steel, adjustable up to a
�
height of 200 mm.
Insulated lid and handle in stainless steel
�
fitted on hinges with counter-balancing
springs.
Indipendent, simple and functional control
�
panel provided with transparent plexiglass
protection.
Well fitted with overflow pipe to eliminate
�
foam.
Timer for programming cooking times.
�
TECHNICAL DATA
CHARACTERISTICS
Power supply
External dimensions - mm
width
depth
height
height adjustment
N° of wells
Usable well dimensions - mm
width
depth
height
Basket load capacity - kg
Power - kW
installed-electric
Control panel - V
Net Weight - lb
Supply voltage
N 900
ZANUSSI
P R O F E S S I O N A L
High productivity and quality due to high
�
thermal efficiency and automatically
controlled cooking times.
The special design of the control knob
�
system guarantees against water infiltration.
All models provided with service duct to
�
facilitate installation.
IPX5 water protection.
�
MODELS
NCPE800H
200395
Electric
800
900
850
50
1
530
570
550
15
15
24
364
400 V, 3N, 50
Model 200395
NCPE1210H
200392
Electric
1600
900
850
50
2
625
640
410
15
30
24
683
400 V, 3N, 50
