Zanussi 178145 Specifications

Electric pasta cookers.
Hide thumbs


Advertisement

RANGE
COMPOSITION
N 700: a range of over 100 models
for the professional caterer designed
to guarantee the highest level of
performance, reliability, energy
saving, safety standards and
ergonomic operation. These
concepts are reflected in the total
modularity of the range that ensures
numerous configurations, either
free-standing or bridged. N 700
demonstrates how advanced
technology can satisfy the needs of
the professional caterer.

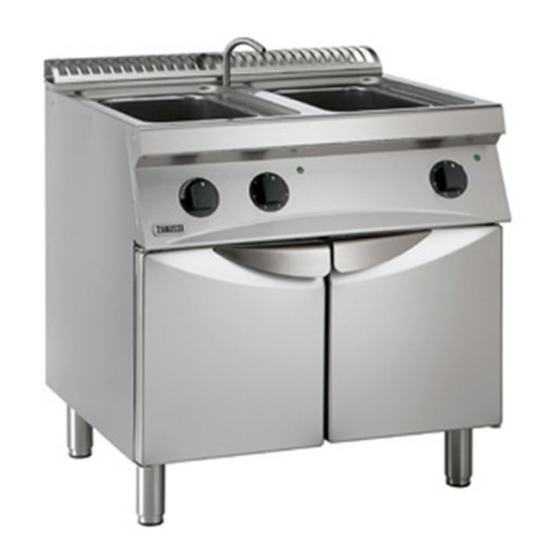

The models detailed on this sheet
are electric pasta cookers: ½ and full
modules in standard versions or with
a built-in automatic pre-heating
system (Rapid System).
FUNCTIONAL AND
CONSTRUCTION
FEATURES
Worktop in 1,5mm stainless steel.
Front panel in stainless steel with
Scotch Brite finish.
Well in 316 AISI stainless steel
thus guaranteeing high resistence
against the water and salt corrosive
action.
Feet in stainless steel adjustable
in height 50mm.
Easy to use control panel for
power regulation and water tap.
Rapid System models: control
panel with switch to regulate: rapid
filling, boiling, boiling and refilling
with pre-heated water.
The electrically-heated
pre-heating system built into the unit
(on Rapid System models, 178147),
guarantees rapid temperature
recovery and a production rate
superior to standard models.
Incoloy armoured heating
elements positioned beneath the
base of the well (standard models).
ELECTRIC PASTA COOKERS
Skimming zone for collecting and
discharging, through the overflow
filter, of starches and foams.
All models have right-angled side
edges to allow flush-fitting joins
between units, eliminating gaps and
possible dirt traps.
Safety Thermostat avoiding the
machine to work without water.
TECHNICAL DATA
CHARACTERISTICS
Power supply
Water boiler
External dimensions - mm
width
depth
height
height adjustment
N° of wells
Usable well dimensions - mm
width
depth
height
Temperature limiter
Maximum Well Capacity -lt
Power - kW
installed-electric
Net weight - kg.
Supply voltage
Rapid System
INCLUDED ACCESSORIES
LEFT SIDE DOOR FOR OPEN BASE CUPBOARD
RIGHT SIDE DOOR FOR OPEN BASE CUPBOARD
N 700
ZANUSSI
P R O F E S S I O N A L
IPX4 water protection.
Ease of maintenance guaranteed
by frontal access to all working
components.
Main connections can be via the
rear or the base of the unit.
MODELS
KCPE400
KCPE800
178145
178146
Electric
Electric
400
800
700
700
850
850
50
50
1
2
250
250
400
400
300
300
l
l
18, 24.5
18, 24.5
6
12
50
50
400 V, 3N, 50/60
400 V, 3N, 50/60
1
1
1
178145
KCPE810
178147
Electric
l
800
700
850
50
1
520
300
260
32, 40
13
70
400 V, 3N, 50/60
l
1
1
