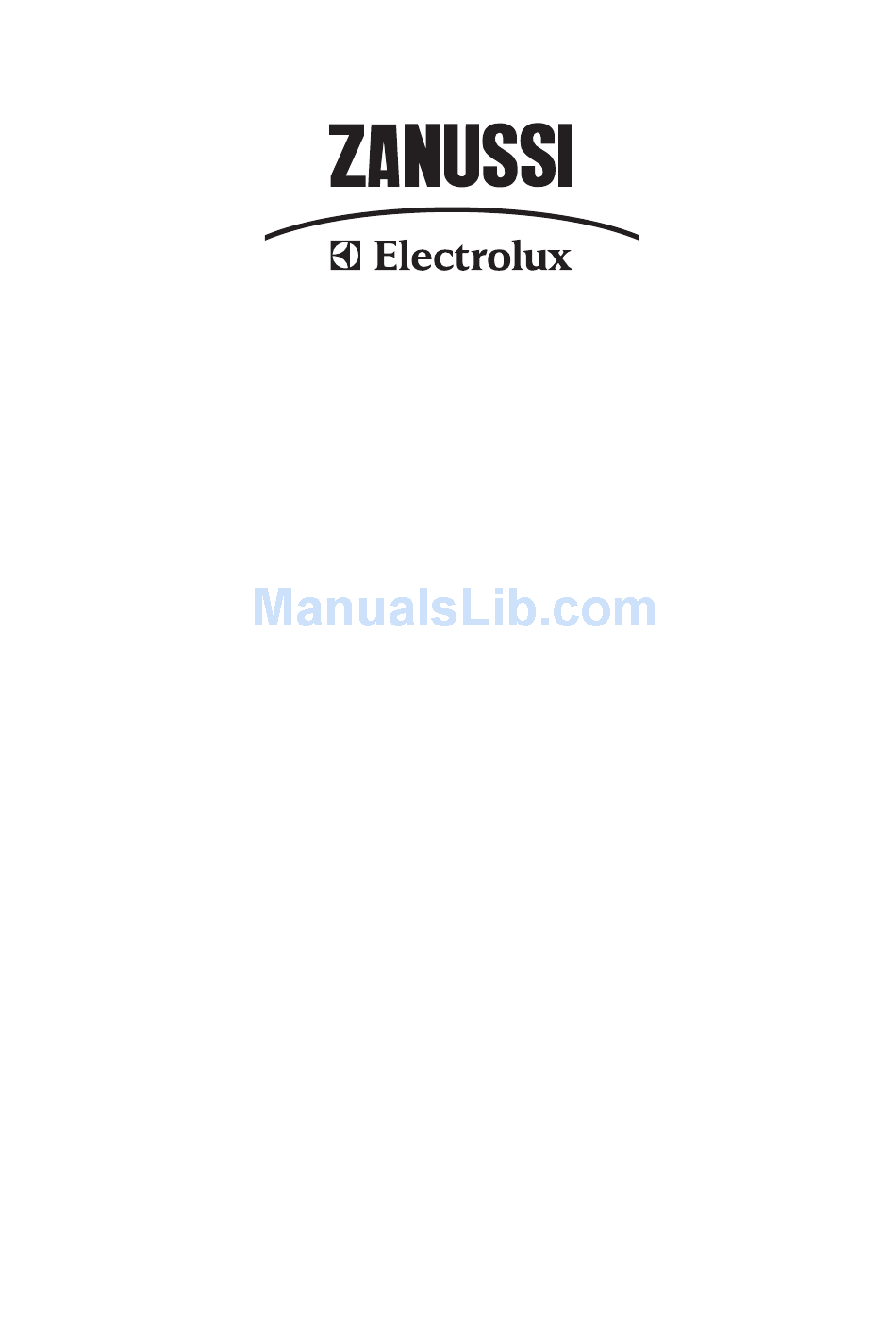

Zanussi Electrolux ZCM 1030 X Instruction Booklet
Electric double oven and grill with gas hob
Hide thumbs
Also See for ZCM 1030 X:
- Manual (13 pages) ,
- Instruction booklet (12 pages) ,
- Instruction booklet (13 pages)
Related Manuals for Zanussi Electrolux ZCM 1030 X
Summary of Contents for Zanussi Electrolux ZCM 1030 X
-
Page 1: Double Oven
ELECTRIC DOUBLE OVEN AND GRILL WITH GAS HOB ZCM 1030 X ZCM 1031 X INSTRUCTION BOOKLET... - Page 2 For your safety Warning: You must read these warnings carefully before installing or using the appliance. If you need assistance, contact our Customer Services Department on 08705 727727. The product should only be used for its intended purpose which is for the cooking of domestic foodstuffs. Under no circumstances shouid any external covers be removed for servicing or maintenance except by suitably qualified personnel.
-
Page 3: Warranty
A registration card is enclosed If it is missing, you can register your 12 month guarantee by telephoning 08705 606 9876 or by visiting our website at www.zanussi-electrolux.co.uk Keep the section meant for you, and when, if necessary, show it to the Service engineer together with the purchase receipt. -
Page 4: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE A Semirapide burner B Rapide burner C Triple crown burner D Hob top E Control panel F Door Handle G Oven door ( main oven ) H Oven door ( second oven) I Adjustable feet 1 Electronic clock 2 Oven indicator light ( main oven ) 3 Oven indicator light ( function ) 4 Oven indicator light ( second oven) -
Page 5: Using Gas Burners
HOB USE USING GAS BURNERS The following symbols are on the control panel next to each knob: - Black circle gas off - Large flame maximum setting - Small flame minimum setting The minimum setting is at the end of the anticlockwise rotation of the knob. - Page 6 Recommended cooking tables Cooking times vary according to the nature, type and quantity of the food. We recommend monitoring your first attempts and checking the results, as similar results are obtained by cooking the same dishes in the same conditions. The following three tables (I, II and III) provide guidelines.
-
Page 7: Convection Oven
WARNING – Accessible parts will become hot when in use. To avoid burns and scalds children should be kept away. CONVECTION OVEN The oven is fitted with: • a lower heating element; • an upper heating element. It is possible to select the desired temperature into the oven by turning clockwise the thermostat knob and depending on the models, one or more functions: Oven off... - Page 8 INSTRUCTIONS FOR USE OF CLOCK AND TIMER (ACCORDING TO THE MODELS) “LED” PROGRAMMER (Fig. 5) Features 24 hour clock with automatic programme and minute minder. Functions Cooking time, cooking end time, manual position, clock, minute minder, times to be set up to 23 hours 59 minutes. Display 4-figures, 7-segments display for cooking times and time of day.
- Page 9 CARE AND MAINTENANCE Before cleaning the appliance, switch off the electrical supply at the control switch. Do not clean the appliance surfaces when still hot. ENAMELLED SURFACES Clean with a damp sponge using water and mild washing-up liquid. Grease can be easily removed using hot water or a specific cleansing agent for enamelled surfaces.
-
Page 10: Gas Connection
The cooker is fitted with 4 legs for an eventual alignment in height with the furniture. To assemble them, it is necessary to raise the cooker and to screw the four legs into the suitable threadings placed on the corners on the bottom of the appliance. Fig. - Page 11 cleaning, but do not let it hang closer than 50mm (2") to the floor. The cable can be looped if necessary, but make sure that it is not twisted or trapped when the cooker is in position. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: GREEN AND YELLOW ...EARTH BLUE ...NEUTRAL...
- Page 12 Tip. Montagnani cod. 536321 - 0105 -...
