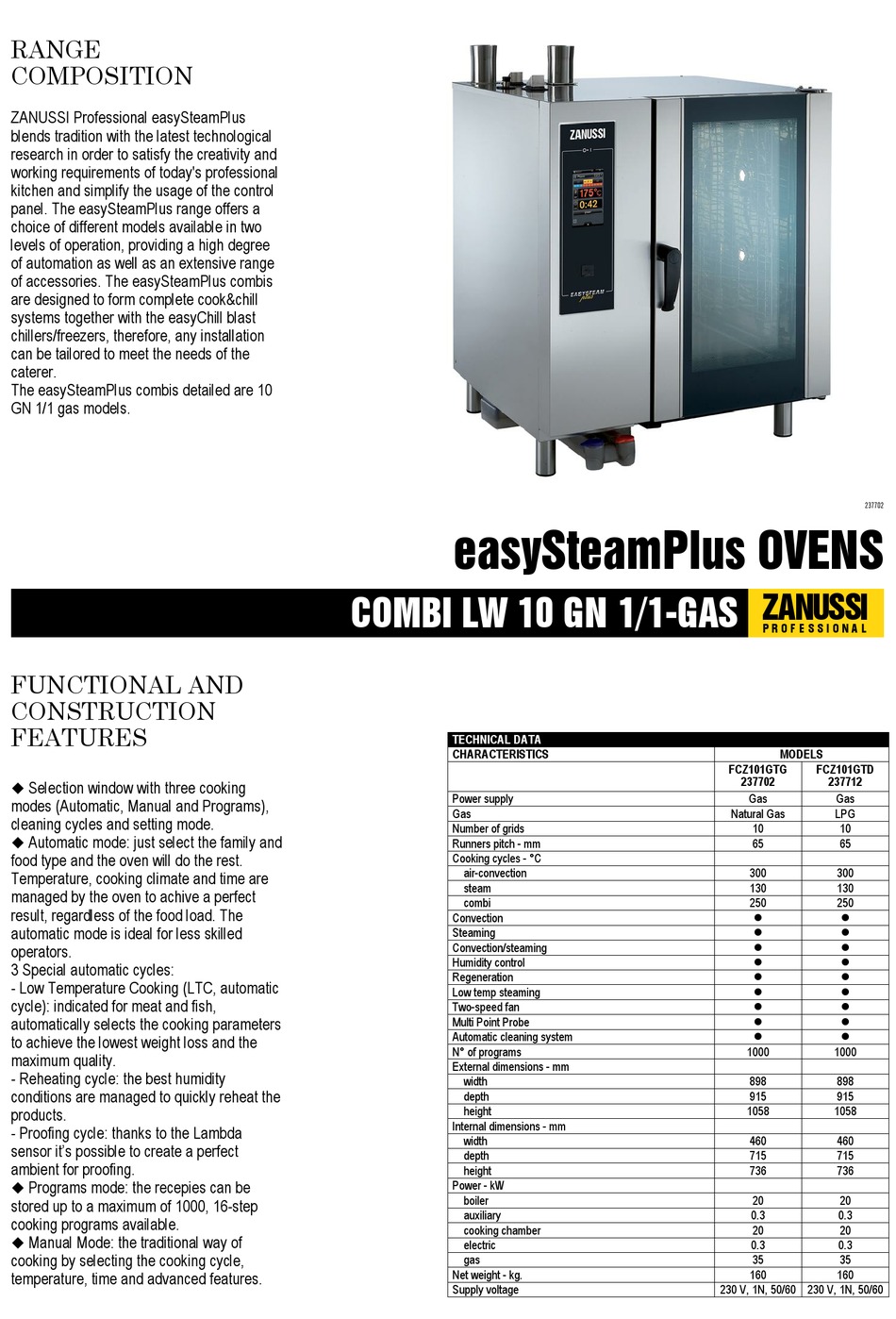

Zanussi easySteamPlus 237502 Specifications

RANGE
COMPOSITION
ZANUSSI Professional easySteamPlus
blends tradition with the latest technological
research in order to satisfy the creativity and
working requirements of today's professional
kitchen and simplify the usage of the control
panel. The easySteamPlus range offers a
choice of different models available in two
levels of operation, providing a high degree
of automation as well as an extensive range
of accessories. The easySteamPlus combis
are designed to form complete cook&chill
systems together with the easyChill blast
chillers/freezers, therefore, any installation
can be tailored to meet the needs of the
caterer.
The easySteamPlus combis detailed are 10
GN 1/1 gas models.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
Selection window with three cooking
�
modes (Automatic, Manual and Programs),
cleaning cycles and setting mode.
Automatic mode: just select the family and
�
food type and the oven will do the rest.
Temperature, cooking climate and time are
managed by the oven to achive a perfect
result, regardless of the food load. The
automatic mode is ideal for less skilled
operators.
3 Special automatic cycles:
- Low Temperature Cooking (LTC, automatic
cycle): indicated for meat and fish,
automatically selects the cooking parameters
to achieve the lowest weight loss and the
maximum quality.
- Reheating cycle: the best humidity
conditions are managed to quickly reheat the
products.
- Proofing cycle: thanks to the Lambda
sensor it's possible to create a perfect
ambient for proofing.
Programs mode: the recepies can be
�
stored up to a maximum of 1000, 16-step
cooking programs available.
Manual Mode: the traditional way of
�
cooking by selecting the cooking cycle,
temperature, time and advanced features.
easySteamPlus OVENS
COMBI LW 10 GN 1/1-GAS
TECHNICAL DATA
CHARACTERISTICS
Power supply
Gas
Number of grids
Runners pitch - mm
Cooking cycles - °C
air-convection
steam
combi
Convection
Steaming
Convection/steaming
Humidity control
Regeneration
Low temp steaming
Two-speed fan
Multi Point Probe
Automatic cleaning system
N° of programs
External dimensions - mm
width
depth
height
Internal dimensions - mm
width
depth
height
Power - kW
boiler
auxiliary
cooking chamber
electric
gas
Net weight - kg.
Supply voltage
237702
ZANUSSI
P R O F E S S I O N A L
MODELS
FCZ101GTG FCZ101GTD
237702 237712
Gas Gas
Natural Gas LPG
10 10
65 65
300 300
130 130
250 250
l l
l l
l l
l l
l l
l l
l l
l l
l l
1000 1000
898 898
915 915
1058 1058
460 460
715 715
736 736
20 20
0.3 0.3
20 20
0.3 0.3
35 35
160 160
230 V, 1N, 50/60 230 V, 1N, 50/60
