DAMPP-CHASER Piano Life Saver System Installation Instructions Manual

NOTE: Please read these instructions completely before beginning, as some of the later steps are affected by earlier steps.
This Backside Vertical System was developed for use in Steinway uprights, player pianos, Disklaviers, and any other vertical where
the bottom front cavity is so narrow it will not accommodate a standard Humidifier. With this System, two small Humidifiers are
joined by means of a large diameter tube. As one Humidifier is being filled, it drains into the other Humidifier until the levels in both
Humidifiers are the same. Throughout usage, the water level in both Humidifiers will remain the same. The low water warning light
will blink when the level in both Humidifiers drops below the sensor probes located in just one of the Humidifiers. There is just one
watering tube for the interconnected System.
TOOLS REQUIRED: This System includes 1/4" hexhead screws. To install the System, you will need:
• screw starter
• cordless drill

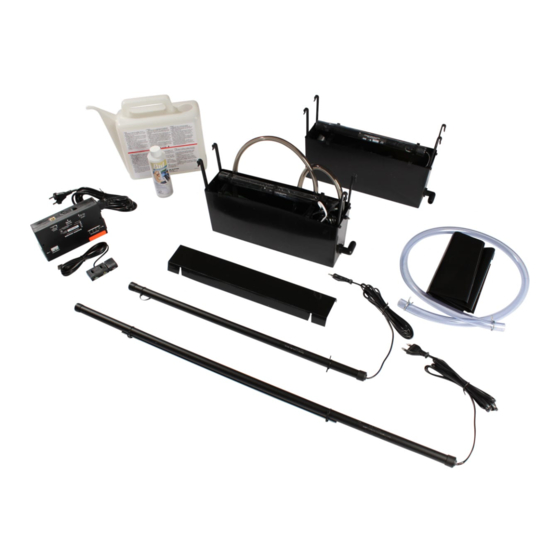

The following is a list of components:

.
3 18-inch Dehumidifiers
1 Humidistat
2 Humidifiers
1 Low Water Sensor Probe
2 Humidifier Heater Bars
2 Clean Sleeves® (on Humidifier Heater Bars)
1 Two-light Panel
1 Single-Light Cube
1 Smart Bracket
1 6-inch Aluminum Tube
1 Watering Tube (Small Diameter Plastic Tube)
2 Humidifier Pads
2 Moisture Distribution Baffles
1 4-foot Large Diameter Plastic Tube
1 Watering Can
1 Bottle of Humidifier Pad Treatment
2 6-foot Extension Cords (1 brown and 1 white)
1 Hardware Kit
1 System Care and Maintenance Sheet / 5-Year Warranty Certificate
The hardware kit includes the following:
6 Angle brackets
25 1/2-inch #8 screws
2 3/4-inch #8 screws
2 2-inch #6 screws
4 Alcohol pads
8 1/4-inch clamps
2 5/8-inch clamps
1 3/4-inch clamp
3 Half clamps
3 Serrated washers
2 1/2-inch clamps
2 Stand-off C-Clips
4 C-Clips
4 Pin pegs
2 Super Plugs
While we make every effort to ensure that all components are included, it is a good idea to check that none are missing prior to
arriving at the installation location. In the unlikely event that a part is missing, please call 800-438-1524 with information from the
end of the box and the assembler's name. We will provide same-day shipment of the replacement part.
• pliers • small hammer
• manual driver • scissors
Remove excess moisture from the piano
Controls the Humidifiers and Dehumidifiers
Bring moisture into the piano
Measures water depth in Humidifier
Warms pads to aid evaporation
Protects Humidifier Heater Bar from mineral corrosion
Shows System is energized and when to add water
Signals when Humidifier pads are dry
Attached to Humidifier heater bar, senses when pads are dry
Used to anchor the Humidistat under the keybed
Enables the delivery of water to the Humidifier
Used to vaporize moisture throughout the piano
Dispense moisture throughout the piano
Joins two Humidifiers
For adding water to the Humidifier
Additive that prolongs the life of the pads
Used to connect Dehumidifiers and Humidifiers to Humidistat
Described below
Used to mount the 18-inch Dehumidifiers
Used to mount clamps and clips
Used to attach the light panel
Used to mount Humidistat
Used to clean piano before mounting Velcro
Used to anchor wires, cords, and cord bundles
Attaches the end of the watering tube for easy use
Anchor half-clamps by biting into the wood
Anchor watering tube
Mount Humidistat on 6-inch tube
Mount 6-inch tube and anchor tube between Humidifiers
Used to mount Moisture Distribution Baffle above Humidifiers
Used on cut ends of extension cords
BACKSIDE VERTICAL 8-PART SYSTEM
which includes TWO HUMIDIFIERS
INSTALLATION INSTRUCTIONS
• 1/2" or 1-1/4" hole saw (see page 4)
• stapler
Purpose
