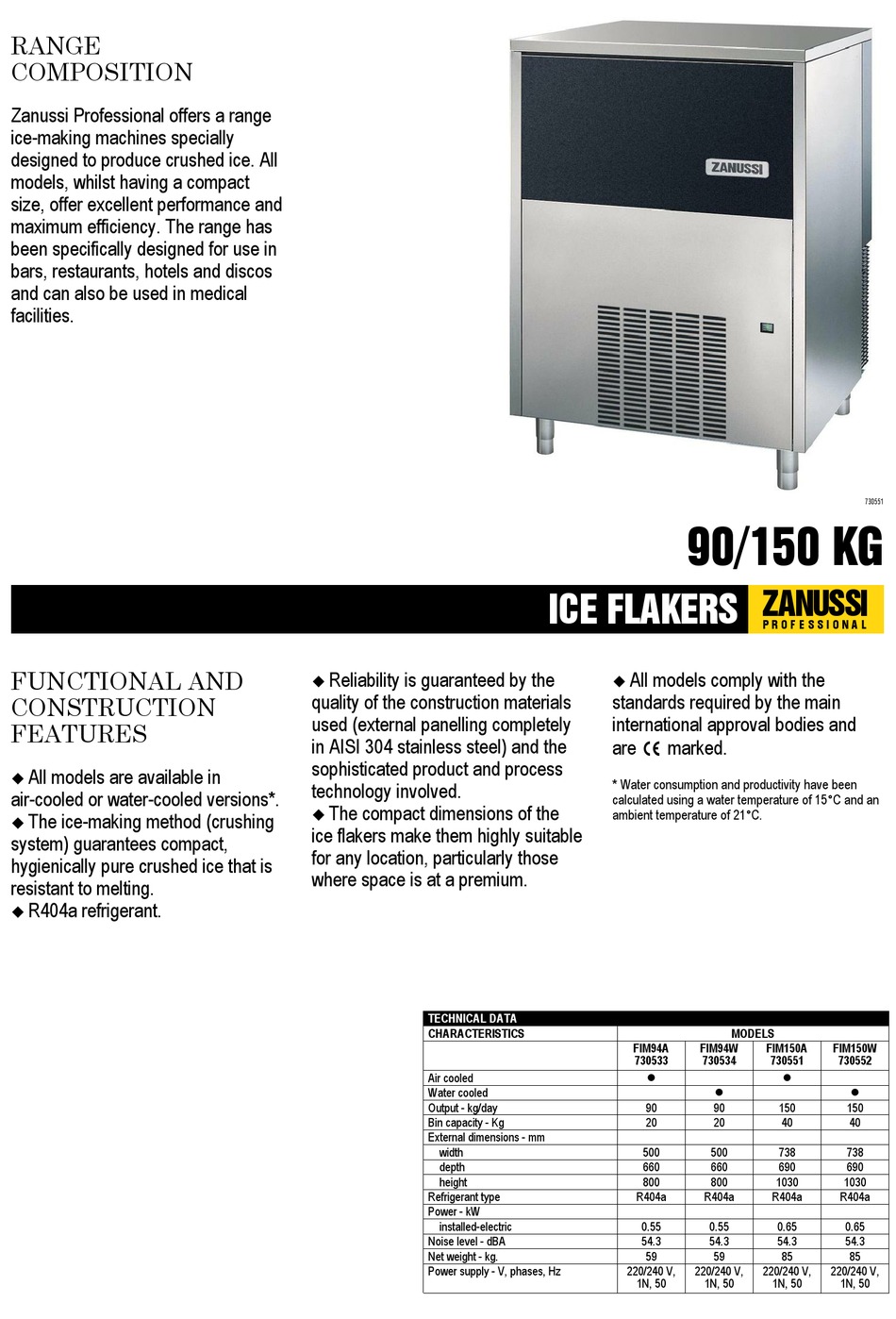

RANGE
COMPOSITION
Zanussi Professional offers a range
ice-making machines specially
designed to produce crushed ice. All
models, whilst having a compact
size, offer excellent performance and
maximum efficiency. The range has
been specifically designed for use in
bars, restaurants, hotels and discos
and can also be used in medical
facilities.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
All models are available in
air-cooled or water-cooled versions*.
The ice-making method (crushing
system) guarantees compact,
hygienically pure crushed ice that is
resistant to melting.
R404a refrigerant.
Reliability is guaranteed by the
quality of the construction materials
used (external panelling completely
in AISI 304 stainless steel) and the
sophisticated product and process
technology involved.
The compact dimensions of the
ice flakers make them highly suitable
for any location, particularly those
where space is at a premium.
TECHNICAL DATA
CHARACTERISTICS
Air cooled
Water cooled
Output - kg/day
Bin capacity - Kg
External dimensions - mm
width
depth
height
Refrigerant type
Power - kW
installed-electric
Noise level - dBA
Net weight - kg.
Power supply - V, phases, Hz
90/150 KG
ICE FLAKERS
All models comply with the
standards required by the main
international approval bodies and
are H marked.
* Water consumption and productivity have been
calculated using a water temperature of 15°C and an
ambient temperature of 21°C.
FIM94A
FIM94W
730533
730534
l
l
90
90
20
20
500
500
660
660
800
800
R404a
R404a
0.55
0.55
54.3
54.3
59
59
220/240 V,
220/240 V,
1N, 50
1N, 50
730551
ZANUSSI
P R O F E S S I O N A L
MODELS
FIM150A
FIM150W
730551
730552
l
l
150
150
40
40
738
738
690
690
1030
1030
R404a
R404a
0.65
0.65
54.3
54.3
85
85
220/240 V,
220/240 V,
1N, 50
1N, 50
