Summary of Contents for Consilium Salwico CS3004
- Page 1 Fire Alarm System Salwico CS3004 User's Guide ÇConsilium...
- Page 2 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Consilium Marine assumes no legal responsibility for any error or damage resulting from the usage of this document. Edition 7, 08 1 E, December 2008 Document number S-4-007.866/E...
-
Page 3: Table Of Contents
User's Guide Contents CS3004 Contents About this manual ..................... iv Chapter 1: Fire Alarm FIRE is flashing ................1-1 ALARMS IN QUEUE is flashing ..........1-2 Acknowledge and mute fire alarm ........1-3 Reset fire alarm ................. 1-4 Fire alarms that could not be reset ........ - Page 4 User's Guide Contents CS3004 Chapter 6: Listings and Printouts Fire alarm list ................6-1 All fire alarm list................6-1 Not resettable fire alarm list ............6-3 Fire alarm history list ..............6-4 Fault list ..................6-5 Abnormal condition list .............. 6-7 Disconnection list ...............
- Page 5 User's Guide Contents CS3004 Chapter 12: Mini Repeater panel MN3000 ......... 12-1 Appendix A: Fault codes ...................A-1 Appendix B: Technical documentation file ........B-1 Appendix C: USCG Installation and operation addendum …… Appendix D: Component list for USCG approved systems …..
-
Page 6: About This Manual
User's Guide About this manual CS3004 About this manual This manual is a comprehensive guide that describes how you handle the CS3004 Fire Alarm System, function by function. All the installed CS3004 Fire Alarm Systems are customer unique, each system consists of a central unit, one or several MX3000 Maxi Repeater Units, MN3000 Mini Repeater Units, loops, sections, section units, etc. -
Page 7: Chapter 1: Fire Alarm
User's Guide Chapter 1: FIRE is flashing CS3004 Chapter 1: Fire Alarm FIRE is flashing FIRE SEC 6 DET 13 1(1) CREW CABIN 754 MENU A fire alarm is detected in the system. • Press ALARM MUTE, to mute and acknowledge the fire alarm. The FIRE indicator stops blinking and turn over to steady red. -
Page 8: Alarms In Queue Is Flashing
User's Guide Chapter 1: ALARMS IN QUEUE is flashing CS3004 ALARMS IN QUEUE is flashing FIRE SEC 6 DET 13 1(2) CREW CABIN 755 FIRE SEC 6 DET 14 CORRIDOR There are more than one fire alarm in the system. •... -
Page 9: Acknowledge And Mute Fire Alarm
User's Guide Chapter 1: Acknowledge and mute fire alarm CS3004 Acknowledge and mute fire alarm • Press ALARM MUTE, to mute and acknowledge the fire alarms. The FIRE indicator stops blinking and turn over to steady red. The audible fire alarm is temporarily silenced when the door is opened and it is permanently silenced when the ALARM MUTE is pressed. -
Page 10: Reset Fire Alarm
The reason to why the fire alarm is not reset is displayed on line three. The indicator SECTION/DET NOT RESET on the fire alarm panel comes on. The display returns to normal status, Salwico CS3004 is displayed. The fire alarm is now a not resettable fire alarm and it can be listed in two different ways: 1. -
Page 11: Fire Alarms That Could Not Be Reset
The fire alarm is reset and it disappears from the display and from the fire alarm list. The display returns to the next fire alarm after five seconds, or if there are no more fire alarms it returns to normal status, Salwico CS3004 is displayed. The fire alarm is not reset... - Page 12 The fire alarm is moved from the All list to the Fire history list. If the fire alarm list is empty, the text LIST EMPTY is displayed. After about five seconds the system returns to normal status, Salwico CS3004 is displayed. The fire alarm is not reset The reason why the fire alarm is not reset is displayed on line three.
-
Page 13: Chapter 2: Fault Indication
User's Guide Chapter 2: Fault is flashing 2-1 CS3004 Chapter 2: Fault indication FAULT is flashing FAULT (22) SEC 1 SD 11 NO ANSWER CONSUMABLES STORE FAULT 1 OF 1 (NOT MUTED) MENU The FAULT indicator is flashing and the internal buzzer is sounding. One or more faults are detected in the system and the latest fault is displayed on the alpha- numerical display. -
Page 14: Acknowledge Faults
User's Guide Chapter 2: Acknowledge faults 2-2 CS3004 Acknowledge faults FAULT (22) SEC 2 DET 5 NO ANSWER ENGINE WORKSHOP FAULT 1 OF 3 MENU • Press M in the FAULT field to acknowledge the fault and to mute the buzzer. The FAULT indication stops flashing and turn over to steady yellow. -
Page 15: Reset Faults
The fault is reset and it disappears from the fault list. The next fault is displayed after about 5 seconds. If the fault list is empty, the text LIST EMPTY is displayed, and the system returns to normal status, Salwico CS3004 is displayed. FAULT (22) SEC 2 DETECTOR 5 NO ANSWER... -
Page 16: Chapter 3: Disconnections
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. - Page 17 User's Guide Chapter 3: Disconnect a whole section CS3004 Continue to define the next disconnection or if you are done with the disconnections, return to normal status by pressing ↵ .
-
Page 18: A Whole Section For A Specified Time Interval
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. -
Page 19: Disconnect Detectors
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. - Page 20 User's Guide Chapter 3: Disconnect all detectors in a section CS3004 The detector is not disconnected A message is displayed on line three for about five seconds if the system can not disconnect the detectors. The system thereafter returns to the previous menu. Continue to define the next disconnection or if you are done with the disconnections, return to normal status by pressing ↵...
-
Page 21: A Certain Detector On A Section
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. - Page 22 User's Guide Chapter 3: Disconnect one detector in a section CS3004 The detector is not disconnected A message is displayed on line three for about five seconds if the system can not disconnect the detector. The system thereafter returns to the previous menu. Continue to define the next disconnection or if you are done with the disconnections, return to normal status by pressing ↵...
-
Page 23: A Sequence Of Detectors In A Section
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. - Page 24 User's Guide Chapter 3: Disconnect a sequence of detectors in a section CS3004 Disconnect the detectors • Press OFF. SEC 2 SD 2 - 4 ENTER LAST ADDRESS OR SELECT FUNCTION MENU The detector is disconnected When the section is disconnected the text on line three is changed to ORDER DONE. The DISCONNECTION LED is lit, if this is the first active disconnection in the system.
-
Page 25: All Detectors In A Section For A Certain Time
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. - Page 26 User's Guide Chapter 3: Disconnect all detectors in a section for a certain time 3-11 CS3004 The detectors are disconnected for a certain time When the detectors are disconnected the text on line three is changed to ORDER DONE. The DISCONNECTION LED is lit, if this is the first active disconnection in the system.
-
Page 27: A Certain Detector In A Section For A Certain Time
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. - Page 28 User's Guide Chapter 3: Disconnect one detector in a section for … 3-13 CS3004 The number is zero-filled from the left, e.g., 2 becomes 02, etc., if less than two digits is given for hour and minute. Please note the colon (:) as separator between each item, present on the F1 key.
-
Page 29: A Sequence Of Detectors In A Section For A Certain Time
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. - Page 30 User's Guide Chapter 3: Disconnect a seq. of detectors in a section for a certain ... 3-15 CS3004 Define the disconnection length SEC 2 DET 23 - 27 FO SEPARATOR ROOM ENTER LAST ADDRESS OR SELECT FUNCTION • Press TIMER. •...
-
Page 31: Disconnect A Manual Call Point
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. -
Page 32: Disconnect A Section Unit
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. -
Page 33: Disconnect External Alarm Devices
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. -
Page 34: A Certain External Alarm Device
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. -
Page 35: Disconnect External Control Devices
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. -
Page 36: A Certain External Control Device
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. -
Page 37: A Certain Category Of External Control Devices
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. - Page 38 User's Guide Chapter 3: Disconnect a certain category of ... 3-23 CS3004 The external control devices are not disconnected A message is displayed on line three for about five seconds if the system can not disconnect the external control devices. The system thereafter returns to the previous menu.
- Page 39 If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed.
- Page 40 User's Guide Chapter 3: Disconnect a certain output of a certain category... 3-25 CS3004 The external control is not disconnected A message is displayed on line three for about five seconds if the system can not disconnect the external control. The system thereafter returns to the previous menu. Continue to define the next disconnection or if you are done with the disconnections, return to normal status by pressing ↵...
-
Page 41: Electric Isolation Of A Loop
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. -
Page 42: Chapter 4: Reconnection
User's Guide Chapter 4: Reconnection 4-1 CS3004 Chapter 4: Reconnection (Access level 1, 2 or 3 depending on the disconnected unit) You can only reconnect disconnected units in one way, by listing the units and thereafter to change the status of the unit. For more information see Listings and Printouts, List disconnections. -
Page 43: Chapter 5: Deactivation/Activation Of Alarm Delay
If you make a mistake use the erase key, ← , to erase one step at a time backwards. Press the return key, ↵ , if you want to interrupt the function and return to normal status. The system returns to normal status, Salwico CS3004, 3 and ½ minutes after the last key is pressed. - Page 44 User's Guide Chapter 5: Deactivation/activation of alarm delay CS3004 Then the alarm delay is activated the text on line three is changed to ORDER DONE and the LEDs Delay off and Disconnection goes out. After about five seconds the display returns to the previous menu.
-
Page 45: Chapter 6: Listings And Printouts
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. Select the All list •... - Page 46 TO MAKE A PRINTOUT • Press F1 (PRINTOUT). The list is printed out on the local printer. The system returns to normal status and the text Salwico CS3004 is displayed.
-
Page 47: Not Resettable Fire Alarm List
Press the return key, ↵ , if you want to interrupt the list function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. Select the Not-reset. list •... -
Page 48: Fire Alarm History List
Press the return key, ↵ , if you want to interrupt the list function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. Select Fire alarm history list •... -
Page 49: Fault List
Press the return key, ↵ , if you want to interrupt the list function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. Select the Fault list Only available when the system is in standby mode. - Page 50 Check the problem and deal with it. Thereafter retry to reset the fault again. TO MAKE A PRINTOUT • Press F1 (PRINTOUT). The list is printed out on the local printer. The system returns to normal status and the text Salwico CS3004 is displayed.
-
Page 51: Abnormal Condition List
Press the return key, ↵ , if you want to interrupt the list function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. Select abnormal conditions •... -
Page 52: Disconnection List
Press the return key, ↵ , if you want to interrupt the list function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. Select the Disconnection list Only available when the system is in standby mode. - Page 53 When the last disconnection in the list is reconnected the text LIST EMPTY is displayed on line three. After about five seconds the text disappears and the system returns to normal status and the text Salwico CS3004 is displayed. TO MAKE A PRINTOUT •...
-
Page 54: Section Unit Status List
Press the return key, ↵ , if you want to interrupt the list function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. Select the Section unit list •... - Page 55 • Press F1 (PRINTOUT). The list is printed out on the local printer. The system returns to normal status and the text Salwico CS3004 is displayed. The following information is printed out: The section number followed by, for each address: •...
-
Page 56: Input Status List
Press the return key, ↵ , if you want to interrupt the list function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. Select Input list •... -
Page 57: Output Status List
Press the return key, ↵ , if you want to interrupt the list function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. Select Output list •... - Page 58 Press the return key, ↵ , if you want to interrupt the list function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. Select Loop test list •...
- Page 59 User's Guide Chapter 6: List cable break test 6-15 CS3004 Figure 1 Section no. 14 Section no. 15 Cable break KS 10 CS3004 KS 40 Section no. 18 Figure 2 Section no. 14 Section no. 15 KS 10 CS3004 Cable break KS 40 Section no.
-
Page 60: Chapter 7: Adjustments Of The System
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. Select access level •... -
Page 61: Change Access Code
If the access code is accepted If the access code is accepted the text on line three is changed to NEW ACCESS CODE FOR ACCESS LEVEL ACCEPTED. After about five seconds the display returns to the normal status and the text Salwico CS3004 is displayed. - Page 62 User's Guide Chapter 7: Change access code CS3004 If the access code is not accepted If the access code is not accepted the text on line three is changed to ACCESS CODES NOT THE SAME. After about five seconds the text is changed to ENTER THE NEW ACCESS CODE AGAIN.
-
Page 63: Set Date
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. The access level of the system must be two or higher. -
Page 64: Set Time
If the time interval is correct the system clock is changed and the text TIME CHANGED is displayed on line three and the time on line two is updated. After about 5 seconds the system returns to normal status and the text Salwico CS3004 is displayed. -
Page 65: Resound Alarm Devices
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. • Press F4 (MENU). -
Page 66: Set Lamp Intensity (Dimmer)
Press the return key, ↵ , if you want to interrupt the function and return to normal status. the fire alarm conditions remain. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. -
Page 67: Change Number Of Section Units
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. The access level of the system must be three. -
Page 68: Connect A Pc
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. • Press F4 (MENU) until the CONNECT PC is displayed. -
Page 69: Change Supplementary Text
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. Select section •... - Page 70 User's Guide Chapter 7: Change supplementary text 7-11 CS3004 Save the new text • Press ON. • Press ↵ . The supplementary text is saved.
-
Page 71: Load New Supplementary Text
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. Select and load new supplementary text •... -
Page 72: Chapter 8: Adjustments Of Detectors
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. The access level of the system must be three. -
Page 73: Activate/Deactivate Poll Flash
User's Guide Chapter 8: Activate/deactivate poll flash CS3004 SEC 9 FLASH OFF EXECUTING ORDER If the poll flash deactivation is accepted When the deactivation of the poll flash function is accepted the text ORDER DONE is displayed. After five seconds the system returns to the section menu. -
Page 74: Set Sensitivity Of Smoke Detectors In A Certain Sector
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. The access level of the system must be set to three. - Page 75 User's Guide Chapter 8: Set sensitivity of smoke detectors in a certain section CS3004 The sensitivity is set to high When the sensitivity is set to high the system displays the text HIGH SENSITIVITY SET on line three. After five seconds the system returns to the section menu. The sensitivity remains set to normal The system displays a fault message if the system can not set the sensitivity to high.
-
Page 76: Set Time Delay For Smoke Detectors
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. The access level of the system must be three. - Page 77 User's Guide Chapter 8: Set time delay for a smoke detector CS3004 The > sign is displayed above function key F3 if the first line is to long to be displayed. The < sign appears above function key F2 if the beginning of the line disappears.
-
Page 78: Chapter 9: System Information
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. The access level of the system must be three. -
Page 79: Print Out The System Definition On A Printer
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. The access level of the system must be three. -
Page 80: Display Analogue Values Of A Section Unit
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. The access level of the system must be two or higher. - Page 81 User's manual Chapter 9: Display analogue values of a section unit CS3004 Analogue values for detectors and manual call points Loop Unit Channel Analogue values Name Type Normal Alarm Fault 127 ± 5% at 25° LK-2/-2K 35 ± 10 RDJ-2 Smoke 35 ±...
- Page 82 User's manual Chapter 9: Display analogue values of a section unit CS3004 Analogue values for address units Address unit Channel Analogue values Name Normal Alarm Fault Heat detector 15 - 32 -/84 Intrinsically safe 15 - 32 -/84 detectors, using AE-2K/I and ES-2K in combination Sprinkler, carbon dioxide 15 - 32...
-
Page 83: Display Power Unit Status
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. The access level of the system must be three. -
Page 84: Chapter 10: Test
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and a half minutes the system returns to normal status and the text Salwico CS3004 is displayed. • Press F4 (MENU) until LAMP TEST is displayed. -
Page 85: Buzzer Test
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and a ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. • Press F4 (MENU) until BUZZER is displayed. -
Page 86: Test Mode
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and a ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. TEST MODE ON Select a section •... - Page 87 User's Guide Chapter 10: Test mode 10-4 CS3004 LIST SELECT A LIST FIRE ALARM FAULT DISCONN. MORE • Press F3 (DISCONN.). SEC 2 SD 2 - 4 OFF PUMP ROOM 1, SB DISCONNECTION 1 OF 10 PRINTOUT The latest disconnection is listed first. Each section set in test mode is specified on a separate row, for example SECTION 11 TEST MODE ON.
-
Page 88: Cable Break Test
Press the return key, ↵ , if you want to interrupt the function and return to normal status. If no key is touched for a time period of 3 and ½ minutes the system returns to normal status and the text Salwico CS3004 is displayed. Start the cable break test •... - Page 89 User's manual Chapter 10: Cable break test 10-6 CS3004 DISCONNECTION LOOP 3 LOOP TEST ON INTERRUPT TEST The test may be interrupted even though we do not recommend you to use this function. Only start the cable break test when it is convenient. •...
-
Page 90: Chapter 11: Central Unit Panel
User's Guide Chapter 11: Central unit panel and MX3000 panel 11-1 CS3004 Chapter 11: Central unit panel and MX3000 panel The layou t of the Central unit panel and the MX3000 unit panel is exactly the same. The function of all keys, LED’ s and displays described below are the same in both the Central unit and the MX3000 unit. - Page 91 LED indicating that a reset of a fire alarm has been NOT RESET attempted but failed. Operating panel Salwico CS3004 1993-11-13 10:11:23 The Operating panel is used for controlling the system and to display all necessary information in case of a fire alarm. The alpha-numerical display is used as a complement to the numerical display on the Fire Alarm panel, as a communication media when operating the system, and to display guiding texts for the function keys.
- Page 92 User's Guide Chapter 11: Central unit panel and MX3000 panel 11-3 CS3004 LIST, ⇑, ⇓ List handling keys, the LIST key is used to open the list function. The arrow keys are used to scroll through the lists. Indicators POWER ON Is lit when the power is set to on.
- Page 93 M N 3000 FIRE ALARM On line List More alarms List SALWICO CS3004 1993-11-13 Local mute 10:11:23 Lamp test Ç Consi When the MN3000 panel is activated by a fire alarm the first fire alarm is shown in the display and the local buzzer is sounding.
- Page 94 User’s Guide Appendix A: Fault codes CS3004 Appendix A: Fault codes The word FAULT is displayed on the first line of the display together with a fault code followed by the section number and the address for the section unit causing the problem, if the system has this information.
- Page 95 User’s Guide Appendix A: Fault codes CS3004 ADDITIONAL SECTION UNIT(S)* More section units have been found than defined in the loop. Cause Remedy Wrong definition of number Contact our service department. of section units. Section unit connections Connect the unit correctly. faulty.

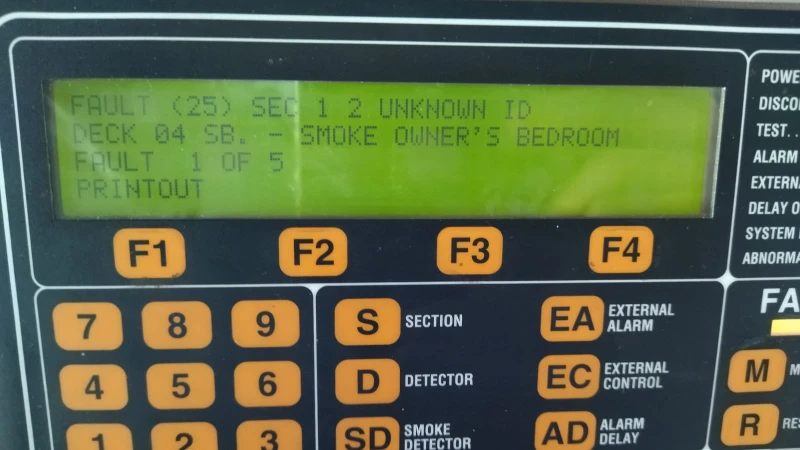

- Page 96 User’s Guide Appendix A: Fault codes CS3004 25 UNKNOWN ID The software does not recognise the ID of a section unit. Cause Remedy Section unit faulty. Exchange the section unit. The ID of the section unit is missing in the Section unit list.
- Page 97 User’s Guide Appendix A: Fault codes CS3004 29 CHECKSUM FAULT IDA Wrong checksum is sent from the section unit. Cause Remedy Two section units has the Check the units. same address. Faulty section unit. Exchange the unit. 41 SECTION BOOTING General boot error.
- Page 98 User’s Guide Appendix A: Fault codes CS3004 64 LOOP POLL FAULT Cause Remedy The communication between Contact the service department. the section units is interrupted. 71 ERROR IN EXTERNAL CONTROL Cause Remedy Wrong definition of the Contact the service department. external control.
- Page 99 User’s Guide Appendix A: Fault codes CS3004 84 VOLTAGE FAULT Too low voltage in IOK-4. Cause Remedy Internal power supply fault. Contact our service department. 90 POLLUTED DETECTOR (Abnormal condition) Cause Remedy Detector head is polluted. Optical smoke detector: Clean the detector head.
- Page 100 User’s Guide Appendix A: Fault codes CS3004 102 THERMISTOR FAULT Thermistor faulty in heat detector. Cause Remedy Thermistor in a detector Exchange the detector. faulty. 103 ION SMOKE CHAMBER FAULT Ion chamber in a ionisation detector faulty. Cause Remedy Ion chamber in an ionisation Exchange the detector if the detector faulty.
- Page 101 User’s Guide Appendix A: Fault codes CS3004 Cause Remedy Short circuit on the detector See Short circuit at the end of loop. this chapter. 126 SHORT CIRCUIT ON PRIM. SIDE Cause Remedy Short circuit between the Attend to the problem. positive and negative connector on the primary side.
- Page 102 User’s Guide Appendix A: Fault codes CS3004 145 LOW VOLTAGE Cause Remedy Too low system voltage from Test the rectifier and measure the power unit. the voltage. Too low voltage: → Exchange the rectifier. Normal voltage: → Exchange the IOK-4 board. 146 HIGH VOLTAGE (Abn.
- Page 103 User’s Guide Appendix A: Fault codes A-10 CS3004 Proceed as follows when you want to locate an earth fault. Divide the cable in two halves, locate the earth fault on one of the halves. Thereafter divide this part of the cable into two halves. Continue to divide the cable into halves until you have found the earth fault.
- Page 104 User’ s Guide Appendix B: Technical Documentation File B-1 CS3004 Appendix B: Technical Documentation File CS3004 fulfil the IEC-950 requirements Input voltage 230 V AC ± 10 - 15 % Input current Output current Rated output voltage 24 V DC Earth leakage current Max.
- Page 105 User’ s Guide Appendix B: Technical Documentation File B-2 CS3004 MX3000 I/O-board (IKK-4) Board Fuse No. Function Fuse rating IKK-4 GPK-4 500 mAT IKK-4 IKK-4 board 100 mAT IKK-4 Output devices 500 mAT IKK-4 Voltage output 315 mAT IKK-4 Voltage output 315 mAT MN3000 MN3000...
- Page 106 User's Guide USCG Appendix C CS3004 Installation and Operation Addendum for Salwico CS3000 and CS3004 as U.S. Coast Guard Approved System The fire detection system must be installed and configured in accordance with Subpart 161.002 and Subchapter J of Title 46 of the U.S. Code of Federal Regulations, and with the 1993 or later version of NFPA 72.
- Page 107 User manual USCG Appendix D CS3004 Appendix D: Component list for USCG approved systems Approved Component List for Salwico CS3000 or CS3004 systems as an U.S. Coast Guard approved system. Components Also for Locations Requiring Exceptional Degree of Protection Central panels, repeaters, bells and power supply CS3000, Fire Alarm Panel incl.
- Page 108 User manual USCG Appendix D CS3004 DOS-3 Optical smoke detector EV-PH Combined Optical Smoke/Heat detector EV-DP Optical Smoke Detector EV-P Optical Smoke Detector NS-AOHS Combined Optical Smoke/Heat detector NS-AOHS-IS Intrinsically safe optical smoke/heat dual detector NS-AOS Optical Smoke Detector Heat detectors TDT-2 / 57Degr.C, Heat Detector TDT-2K / 57 Heat Detector TDT-2K / 57 ROR Heat detector...
Need help?
Do you have a question about the Salwico CS3004 and is the answer not in the manual?
Questions and answers

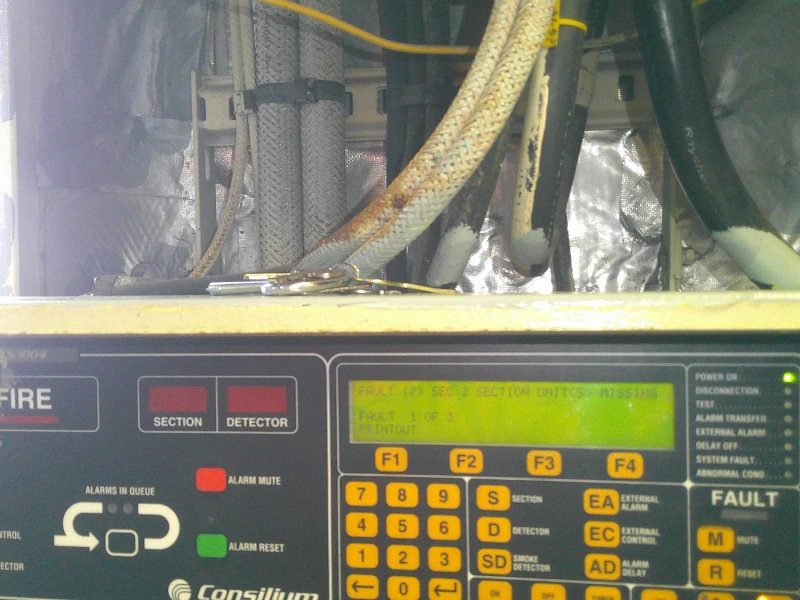

Consilium FIRE-SPRINKLER ALARM SYSTEM CS3004 Fault (7) SEC 2 SECTION UNIT(S) MISSING is ready on system. what is the problem?
The fault (7) SEC 2 SECTION UNIT(S) MISSING on the Consilium Salwico CS3004 fire-sprinkler alarm system indicates that one or more section units in Section 2 are not communicating with the system. This may be due to a faulty section unit or a problem in the communication line. The likely remedy is to test the section and replace any faulty section unit.
This answer is automatically generated
@Mr. Anderson

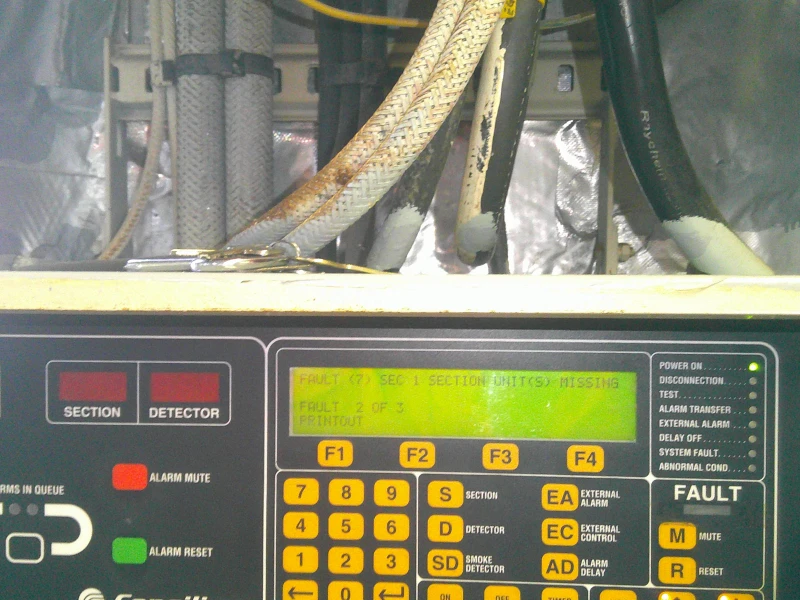

Power is ok, we have 3 message: 1) Consilium FIRE-SPRINKLER ALARM SYSTEM CS3004 Fault (7) SEC 2 SECTION UNIT(S) MISSING 2) Consilium FIRE-SPRINKLER ALARM SYSTEM CS3004 Fault (7) SEC 1 SECTION UNIT(S) MISSING 3) FAULT (204) INPUT 4 PANEL NOT READY

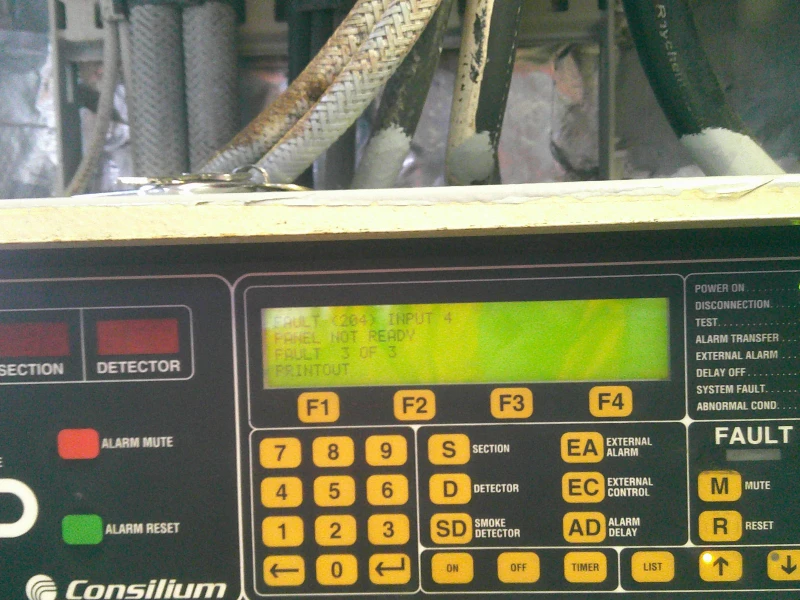

3rd fault message
Здраствуйте мне нужна помощь. У меня пожарная сигнализация СS3004 станция не видит датчик . Я проверил питание есть все как положено ставлю новый датчик выставляю свичами номер ставлю а станция не видит. Ставлю работаший дачик с другой зоны тоже так прописываю его станция не видит. В чем может быть проблема подскажите.
If the Consilium Salwico CS3004 fire alarm station does not recognize the sensor, possible causes include:
1. Non-Addressable Sensor Without Addressing Unit – Non-addressable initiating devices (e.g., manual call points, heat detectors, smoke detectors) must have an addressing unit to provide an address. If an addressing unit is missing or malfunctioning, the sensor will not be recognized.
2. Incorrect Address Configuration – Each addressing unit should support only one device. If multiple devices share the same address or if the address is not properly set, the system may fail to recognize the sensor.
3. Faulty Connection or Wiring Issue – A loose or damaged connection between the sensor and the fire alarm panel can prevent recognition.
4. System Access Level Too Low – The system access level must be set correctly (e.g., level three) to configure or recognize sensors.
5. Sensor Not Assigned to a Section – The sensor must be assigned to a section number within the system's supported range (1-190).
6. Sensor Failure – A defective sensor may not communicate with the control panel.
Checking these factors and ensuring proper installation and configuration should help resolve the issue.
This answer is automatically generated
