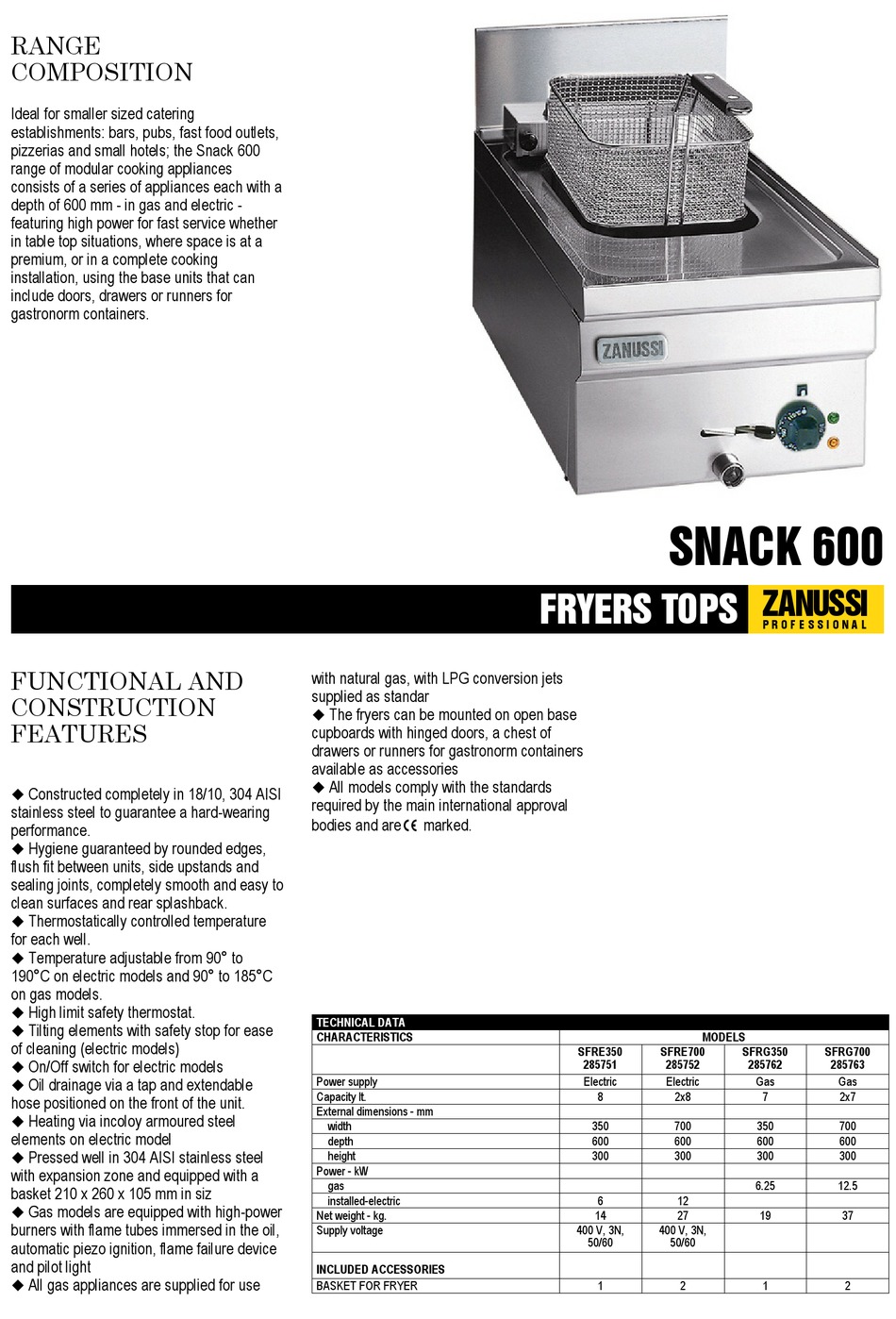

Zanussi Snack 285751 Brochure & Specs

Zanussi fryers tops product brochure
Hide thumbs


Advertisement

RANGE
COMPOSITION
Ideal for smaller sized catering
establishments: bars, pubs, fast food outlets,
pizzerias and small hotels; the Snack 600
range of modular cooking appliances
consists of a series of appliances each with a
depth of 600 mm - in gas and electric -
featuring high power for fast service whether
in table top situations, where space is at a
premium, or in a complete cooking
installation, using the base units that can
include doors, drawers or runners for
gastronorm containers.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
Constructed completely in 18/10, 304 AISI
stainless steel to guarantee a hard-wearing
performance.
Hygiene guaranteed by rounded edges,
flush fit between units, side upstands and
sealing joints, completely smooth and easy to
clean surfaces and rear splashback.
Thermostatically controlled temperature
for each well.
Temperature adjustable from 90° to
190°C on electric models and 90° to 185°C
on gas models.
High limit safety thermostat.
Tilting elements with safety stop for ease
of cleaning (electric models)
On/Off switch for electric models
Oil drainage via a tap and extendable
hose positioned on the front of the unit.
Heating via incoloy armoured steel
elements on electric model
Pressed well in 304 AISI stainless steel
with expansion zone and equipped with a
basket 210 x 260 x 105 mm in siz
Gas models are equipped with high-power
burners with flame tubes immersed in the oil,
automatic piezo ignition, flame failure device
and pilot light
All gas appliances are supplied for use
with natural gas, with LPG conversion jets
supplied as standar
The fryers can be mounted on open base
cupboards with hinged doors, a chest of
drawers or runners for gastronorm containers
available as accessories
All models comply with the standards
required by the main international approval
bodies and areH marked.
TECHNICAL DATA
CHARACTERISTICS
Power supply
Capacity lt.
External dimensions - mm
width
depth
height
Power - kW
gas
installed-electric
Net weight - kg.
Supply voltage
INCLUDED ACCESSORIES
BASKET FOR FRYER
SNACK 600
FRYERS TOPS
MODELS
SFRE350
SFRE700
285751
285752
Electric
Electric
8
2x8
350
700
600
600
300
300
6
12
14
27
400 V, 3N,
400 V, 3N,
50/60
50/60
1
2
ZANUSSI
P R O F E S S I O N A L
SFRG350
SFRG700
285762
285763
Gas
Gas
7
2x7
350
700
600
600
300
300
6.25
12.5
19
37
1
2
