Powerbox F series User Manual
POWERBOX F
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWERBOX F Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dyness POWERBOX F Series

Summary of Contents for Dyness POWERBOX F Series

  • Page 1 Powerbox F series User Manual POWERBOX F User Manual...

  • Page 2: Table Of Contents

    Powerbox F series User Manual Content Statement of Law ....................1 Safety Precautions ....................2 Preface ........................3 1 Introduction ...................... 4 1.1 Brief Introduction ....................4 1.2 Product Properties ....................4 1.3 Product identity definition ..................5 2 Product Specification ..................6 2.1 Size and Weight .....................

  • Page 3: Statement Of Law

    Powerbox F series User Manual Statement of Law Copyright of this document belongs to Jiangsu Daqin New Energy Technology Co., Ltd. No part of this documentation maybe excerpted, reproduced, translated, annotated or duplicated in any form or by any means without the prior written permission of Jiangsu Daqin New Energy Technology Co., Ltd.

  • Page 4: Safety Precautions

    The surface of the Powerbox cabinet is affixed with a torn invalid label. Therefore, before  opening the cover to change the DIP switch mode, you need to contact DYNESS and inform the product ID. DYNESS will record this battery ID and authorize the opening operation to be performed.

  • Page 5: Preface

    Powerbox F series User Manual Contact the authorized dealer or distributor of DYNESS for a new torn invalid sticker after tearing the original invalid label. When the operation is completed, paste the new one at a different position. Preface Manual declaration POWERBOX F Lithium Iron Phosphate Battery is external battery module which can storage the power for home use.

  • Page 6: Introduction

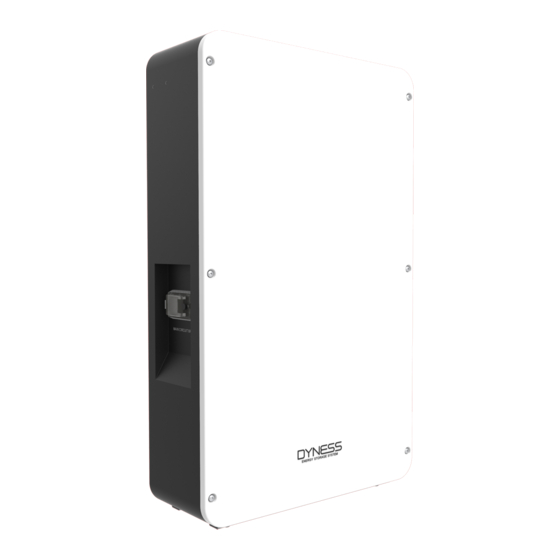

    1 Introduction Brief Introduction POWERBOX F series lithium iron phosphate home battery is newly power storage products designed according to market demands, supplies reliable power for all kinds of home equipment. It is especially suitable for situations with higher temperatures, less space, higher demand of weight and life span.

  • Page 7: Product Identity Definition

    Powerbox F series User Manual Product identity definition FIG1-1 Battery Energy Storage System nameplate Battery voltage is higher than safe voltage, direct contact with electric shock hazard. Be careful with your actions and be aware of the dangers. Read the user manual before using.

  • Page 8: Product Specification

    Powerbox F series User Manual 2 Product Specification 2.1 Size and Weight Table 2-1 POWERBOX F Series Device Model Specification Nominal Nominal Dimension Weight Product Series Model Voltage Capacity (mm) (kg) Level POWERBOX POWERBOX F-10 200Ah 928×555×210 IP65 POWERBOX POWERBOX F-7.5 150Ah 928×555×210...
  • Page 9 Powerbox F series User Manual Table 2-3 Interface Definition Item Name Definition The battery DC output positive pole, which is connected to the Positive socket positive pole of the inverter through the cable When the system is used independently: The CAN/RS485 socket is connected to the inverter CAN/RS485 interface through the communication cable.
  • Page 10 Powerbox F series User Manual Item Name Definition When the system is used in parallel: This CAN/RS485 communication socket is connected to the COM IN interface of the next Powerbox through communication cable. (Factory default CAN communication mode) LED1 Module 1 status indicator light...

  • Page 11: Battery Management System(Bms)

    Powerbox F series User Manual 2.4 Battery Management System(BMS) 2.4.1 Voltage Protection Discharging Low Voltage Protection： When any battery cell voltage is lower than the Rated protection value or total voltage below 42V during discharging, the over-discharging protection starts, and the battery buzzer makes an alarm sound.
  • Page 12 Powerbox F series User Manual When the battery is activated from the off state, if a short circuit occurs, the DC circuit breaker will act first. If the DC circuit breaker does not operate, the BMS will start the short circuit protection function and cut off the external voltage output.

  • Page 13: Installation And Configuration

    Powerbox F series User Manual 3 Installation and Configuration 3.1 Preparations for installation Safety Requirement This system can only be installed by personnel who have been trained in the power supply system and have sufficient knowledge of the power system.

  • Page 14: Technical Preparation

    Powerbox F series User Manual Hardware tool Tools and meters that may be used are shown in table 3-1. Table 3-1 Tool instrument Name Screwdriver (word, cross) AVO meter wrench clamp meter Inclined pliers Insulating tape Needle nose pliers The thermometer...
  • Page 15 Powerbox F series User Manual In the process of unpacking, handle with care and protect the surface coating of the  object. Open the package, the professional installation person should read the technical  documents, verify the list, according to the configuration table and packing list, ensure objects are complete and intact.

  • Page 16: Engineering Coordination

    Powerbox F series User Manual User manual ×1 3.1.5 Engineering coordination Attention should be paid to the following items before construction: Power line specification.  The power line specification shall meet the requirements of maximum discharge  current for each product.

  • Page 17: Floor Installation

    Powerbox F series User Manual Step1 System outage Ensure that the battery is in a shutdown state 1. Hanger mounting Mechanical Step 2 installation 2.Equipment installation 1. Connect the ground cable 2 Electrical installation Electrical Step3 installation 3.Connect inverter 4.Communication interface connection 3.2.1 Floor installation...

  • Page 18: Mounted On The Wall

    Powerbox F series User Manual 4． Fixing the expansion bolt M6 into the bottom of the hole on the wall. 5． Use the M6 bolt to fixing the Support bracket to the wall and control the torque at 6NM. 6． Carry the battery box to the...
  • Page 19 Powerbox F series User Manual 1． Use the positioning cardboard provided with the goods to draw the screw hole positions on the wall, as shown in the four holes on the left. 2． The cardboard must be perpendicular to the ground while drawing the holes.

  • Page 20: Electrical Installation

    Powerbox F series User Manual 3.2.3 Electrical installation Before connecting the power cables, using multimeter to measure cable continuity, short circuit, confirm positive and negative, and mark well the cable labels. Measuring methods： Switch off cables: select the buzzer and use the probe to measure the ends of the ...
  • Page 21 Module No.1 to the correct mode. Before opening the cover to operate, you must contact DYNESS and inform the ID of the Powerbox. DYNESS records this battery ID and authorizes the opening operation. Except changing the DIP switch mode, no other operations can be done.
  • Page 22 Powerbox F series User Manual Table 3-3 Pin Definition Foot position Color Definition PIN1 Orange/white 485A PIN2 Orange XGND PIN3 Green/white 485B PIN4 Blue CANH PIN5 Blue/white CANL PIN6 Green NC/NULL PIN7 Brown/white PIN8 Brown NC/NULL The battery is connected to the...
  • Page 23 Powerbox F series User Manual Battery+ Battery- INVERTER POWERBOX CAN IN Battery CAN CAN OUT When the system used in parallel: ② When the system used in parallel, it supports up to 3 Powerbox in parallel. According to the number of parallel system (Take three Powerbox in parallel as an example), it needs to use: Power cable ×...

  • Page 24: Battery Module Dip Switch Definition And Description

    Baud rate selection CAN: 250K,485: 115200 CAN: 500K,485: 9600 DIP switch description: For Powerbox F series system, the No. 1 module at the bottom of cabinet and near the front panel side is the host, the other modules are slaves.
  • Page 25 Powerbox F series User Manual Slave modules No.1 Module Front panel Host module When the battery pack is connected in parallel, the host can communicate with the slave through the CAN interface. The host summarizes the information of the entire battery system and communicates with the inverter through CAN or 485.
  • Page 26 Note: For more information of matching inverter brands, please subject to the latest document <The list of compatibility between Dyness ESS and Inverters >. Introduction of the initial state of DIP switch of the internal modules of Powerbox with DIP switch.
  • Page 27 Powerbox F series User Manual DIP Switch mode 4 ADD: 0000 DIP Switch mode 2 DIP Switch mode 3 DIP Switch mode 1 ADD: 0010 ADD: 0100 ADD: 0110 Factory default DIP switch status of No.1 B4850 battery in Powerbox is Mode 1, Mode 2 or Mode 3 (Adjust base on the different inverters).
  • Page 28 DIP switch of the No. 1 B4850 battery to Mode 1, 2 or 3 (that based on different inverters). Note: For more information of matching inverter brands, please subject to the latest  document <The list of compatibility between Dyness ESS and Inverters >.
  • Page 29 Powerbox F series User Manual The following operations can only be performed after being authorized by DYNESS:  When the current version of Powerbox is used in parallel, the indicator lights of the slaves will not light up, and the status of all the modules in POWERBOX can only be displayed through the indicator status of the host Powerbox.
  • Page 30 Powerbox F series User Manual a) The battery's long-term continuous charging current should be ≤0.5C Charging b) If the battery capacity is empty, please charge it within 48 Equipment hours after the battery is empty. c) The long-term continuous discharge current of the battery should be ≤0.5C...

  • Page 31: Use, Maintenance And Troubleshooting

    Powerbox F series User Manual Use, maintenance and troubleshooting 4.1 Battery system usage and operation instructions After completing the electrical installation, follow these steps to start the battery system. Check whether the breaker is in disconnection. Press the battery power button, the power button LED light is on, and 4 LED indicator light will turn on the green color after self-check.

  • Page 32: Alarm Description And Processing

    Powerbox F series User Manual BAT + / BAT- of the inverter is greater than 42V, at this time the battery has begun to work normally. After confirming that the battery output voltage and polarity are correct, turn on the inverter, then close the circuit breaker switch.

  • Page 33: Analysis And Treatment Of Common Faults

    Powerbox F series User Manual If a low SOC alarm occurs, the battery system also issues a corresponding alarm signal. Maintainer should check the equipment according to the prompt information, determine the type and location of the fault, and take corresponding countermeasures to ensure that the system is in the best working condition to avoid affecting the system output.
  • Page 34 Jiangsu Daqin New Energy Tech Co., Ltd Address: 158# South Ji'an Road, Hi-Tech District, Yangzhou City, Jiangsu Province, China, 211400. Email: sales@dyness.net Website: www.dyness.net...
