Summary of Contents for ACC GD30FDC

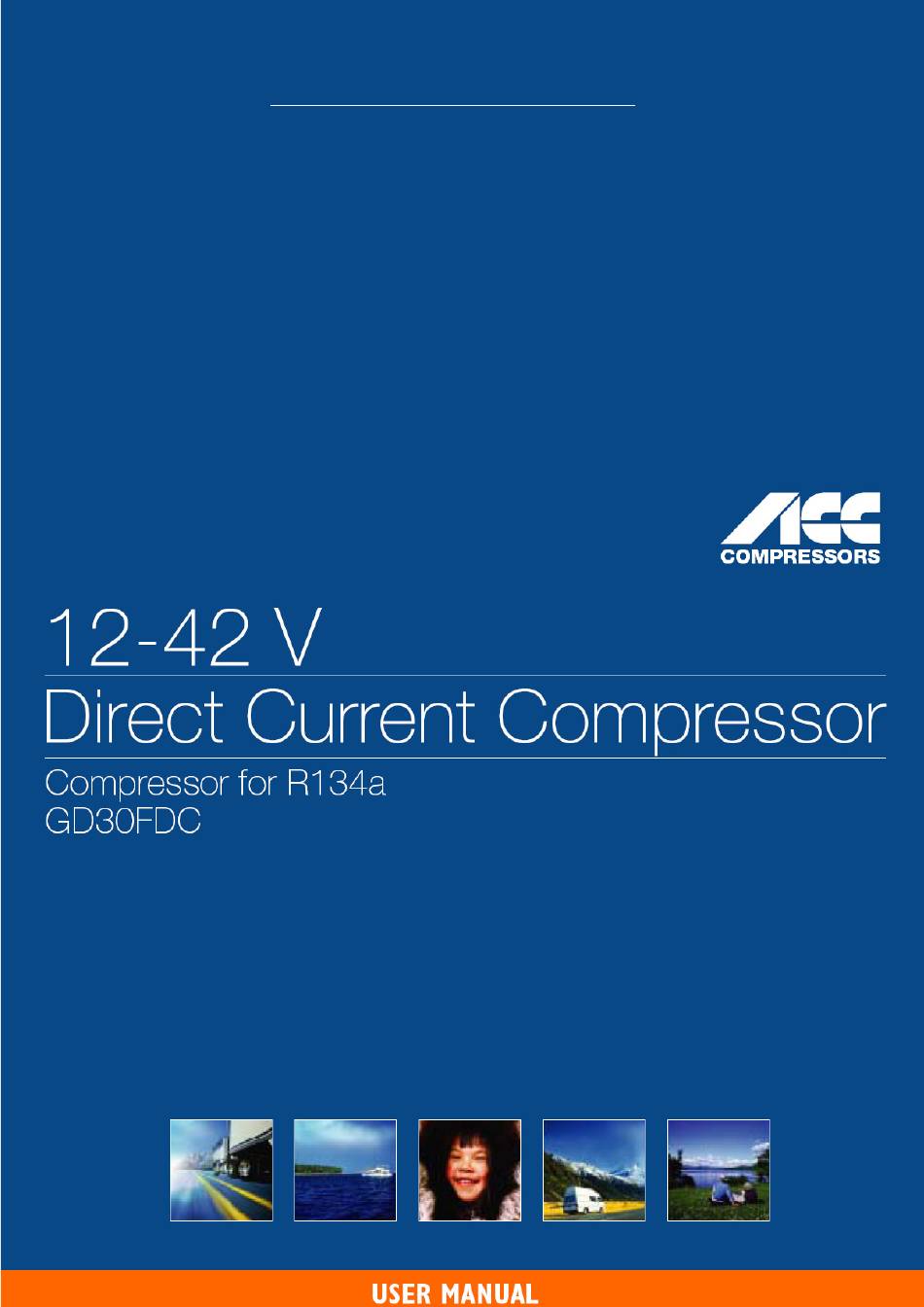

- Page 1 Procold S.r.l. info@procold.it www.procold.it...
- Page 2 COMPRESSORS COMPRESSORS...
- Page 3 COMPRESSORS COMPRESSORS ...this one will go far...
-
Page 4: About The Product
ACC’s “D” series, which has been successfully present in the market since 1984, and has had sales of 15 million units. GD30FDC can be powered at any voltage within the 12 to 42V DC range, and is designed for capillary tube expansion. Each unit is supplied with a dedicated electronic driver (FDC1), which features all the protections for both the battery and the driver itself, including the compressor motor. - Page 5 Maximum comfort and minimum energy consumption are thus achieved. GD30FDC starting capability is as low as 10V under any balanced pressure. It also admits a certain remaining di erential pressure when thermostat o -time is abnormally short. For improving even more the starting capability, FDC1 electronic driver is supplied with a 3 minutes minimum thermostat o -time.
-
Page 6: Wiring And Connections
WIRING AND CONNECTIONS General rules GD30FDC must always be powered through the dedicated electronic driver FDC1, which is supplied with the compressor as a separate device. NEVER CONNECT THE COMPRESSOR’S HERMETIC PINS (FUSITE) TO THE TERMINALS OF A BATTERY OR ANY OTHER DC OR AC SOURCE DIRECTLY. - Page 7 RJ11 telephone type connector. This port allows the electronic driver to be connected to a computer for programming purposes using the FDC programming package (hardware and software) provided by ACC under request. Optionally, the SPI can be con gured to: Install a LED to display the intervention of any alarm.
-
Page 8: Operating Voltage
Fig. 3. SPI terminals OPERATING VOLTAGE GD30FDC is designed to operate in a wide range of DC voltages, supplied either by a battery or by any other kind of ltered DC power supply. DC VOLTAGE SUPPLY ALLOWED: 10V to 42.4V... -
Page 9: Battery Protection System
Voltage limits are set up by means of a PC through its serial port connected to the electronic driver’s SPI. It can be done by ACC or by the customer itself using the FDC programming package. -
Page 10: Setting Up The Speed
It is possible to operate the compressor at xed or variable speed under di erent running modes, options and parameters. The electronic driver is supplied by ACC with standard running mode and external control of the speed, with minimum speed of 1,500 rpm and maximum speed 3,500 rpm. - Page 11 The EIM communicates how the compressor should operate and, eventually, records and displays any abnormal circumstance that might occur. For details about the communication protocol, please, contact ACC. IF ANY VARIABLE SPEED MODE IS TO BE PROGRAMMED, CHECK CAREFULLY FOR TUBES, CONDENSER AND EVAPORATOR RESONANCES.
- Page 12 PROGRAMMING THE ELECTRONIC DRIVER In order to program the electronic driver FDC1, a personal computer together with the FDC programming package are required (provided by ACC under request). To this purpose, perform the following steps: Install the programming software, following the instructions of the wizard.
-
Page 13: Protections And Alarms
Click exit to nish. PROTECTIONS AND ALARMS GD30FDC is electronically protected against a number of possible malfunctions and failures: ❖ Battery discharge: refer to point 5 for details. Fan over current: protects the compressor and the electronic driver against fan over current due ❖... -
Page 14: Compressor Cooling
Net weight Oil type ISO VG 22 Ester Oil charge Approvals GD30FDC is in compliance with the following directives and approvals: Low Voltage Directive 73/23/EEC (CE-marking) Electromagnetic Compatibility Directive for Automotive Industry 95/54/EC (e-marking: e9 6013) VDE approval CCC approval... - Page 15 Default settings Running mode: Standard Speed selection: external switcher Lower/higher speed: 1500/3000 r.p.m. Battery protection: xed voltage level; standard system GD30FDC User Manual September 2006 DISTRIBUTED by PROCOLD S.r.l. - Italy - Tel: (+39) 0161 42 44 52 - info@procold.it...
- Page 16 °C Liquid temp. entering expansion °C Ambient and return temp. °C Voltage V DC Dimensions Fig. 4. GD30FDC outline drawing GD30FDC User Manual September 2006 DISTRIBUTED by PROCOLD S.r.l. - Italy - Tel: (+39) 0161 42 44 52 - info@procold.it...
- Page 17 Voltage: 12 V DC 11. SUPP LY GD30FDC comp ressor including FDC1 elect ronic driver delive red in pallets of 144 unit s. ❖ Pack of GD30FD C compressor including: FDC 1 electronic driver, set of connecto rs for external speed ❖...
- Page 18 Compact in dimensions and designed to operate in heavy duty conditions, the GD30FDC compr essor is silent, e cient and can work even with a strong tilt (30º), and it is especially suitable for mobile applications in boats, trucks, private cars or medical appliances in ambulances.
- Page 19 COMPRESSORS COMPRESSORS NOTES DISTRIBUTED by PROCOLD S.r.l. - Italy - Tel: (+39) 0161 42 44 52 - info@procold.it...
- Page 20 Commercial Cold Business ACC Spain, S.A. P.O. Box 3283 08200 Sabadell - Spain Phone: +34 93 746 41 71 Fax: +34 93 712 28 64 E-mail: commercialcold@accomp.it www.the-acc-group.com DISTRIBUTED by PROCOLD S.r.l. - Italy - Tel: (+39) 0161 42 44 52 - info@procold.it...
