Summary of Contents for Zanussi ZDT 5895

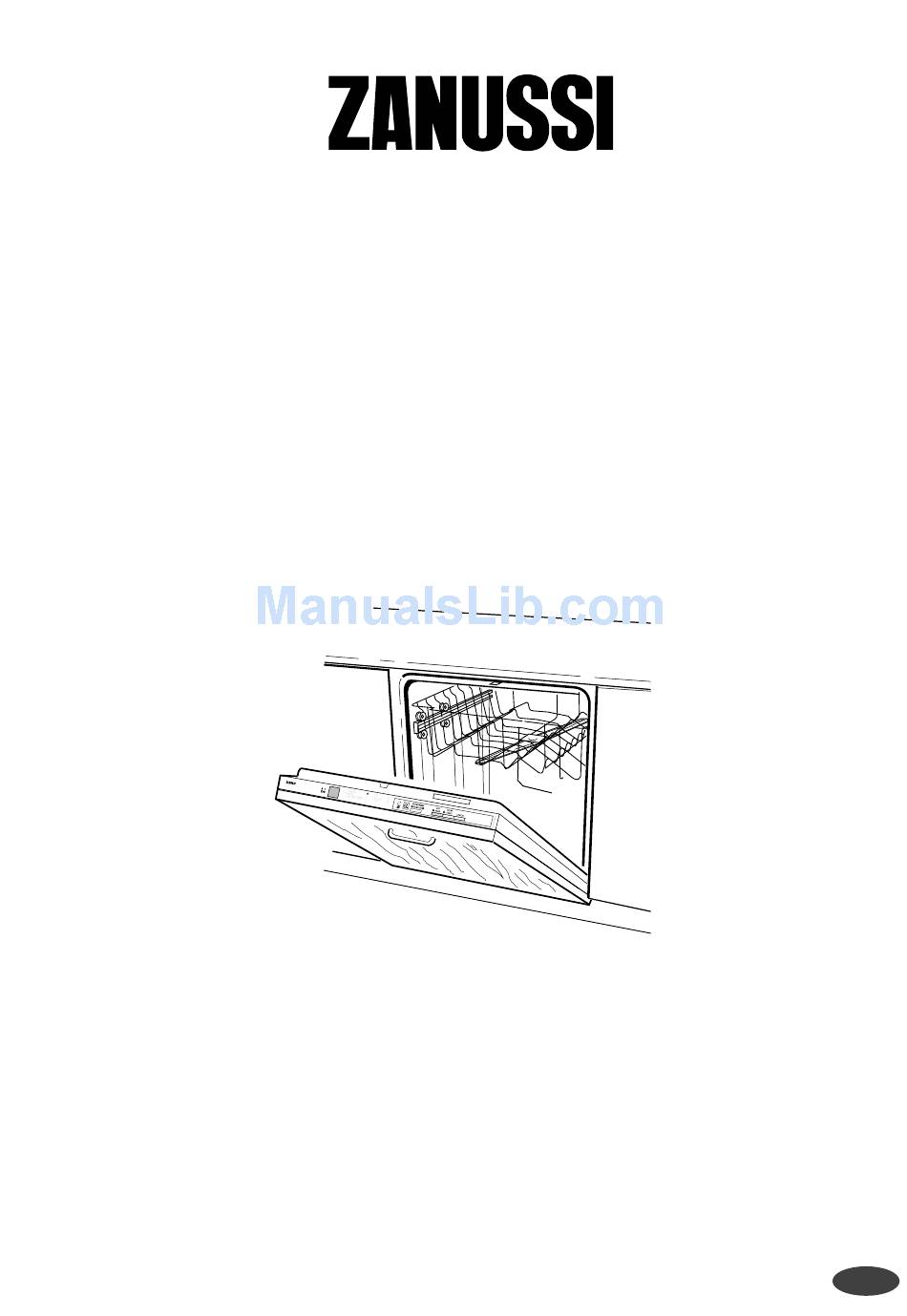

- Page 1 DISHWASHER ZDT 5895 INSTRUCTION BOOK 153 1123 13...
- Page 2 Dear Customer Please read these operating instructions carefully. Please make sure you read the safety instructions on the first pages of these operating instructions! Keep the operating instructions for future reference. Pass them on to any future owners. With the warning triangle and/or by means of key words (Warning!, Caution!, Important!), information is emphasized which is important for your safety or the correct functioning of the...
-
Page 3: Table Of Contents
Content Safety Instructions ............. . . Description of the Appliance Dishwasher . -
Page 4: Safety Instructions
Safety Instructions The safety aspects of this appliance comply with the accepted technical standards and the applicable safety regula- tions. Nevertheless, we consider it our obligation to make you aware of the following safety information: Installation • Any electrical work required to install this ap- pliance must be carried out by a qualified electri- cian / competent person. - Page 5 During Use • The water protection system ensures reliable pro- tection against water damage if the following conditions are fulfilled: The mains connection must remain connected even when the dishwasher is switched off. The dishwasher must be properly installed Always turn off the water taps when the dish- washer is left unattended for longer periods.
-
Page 6: Description Of The Appliance
Description of the Appliance Dishwasher Control Panel Salt dispenser indicator control lamp... -
Page 7: Important Information
Important Information Keep these operating instructions carefully near the appliance, so that they are always at hand. If you should sell or pass on the appliance to third par- ties, ensure that you hand over the appliance complete with this leaflet, so that the new user can inform himself about the working of the appliance. -
Page 8: Disposal
Crockery that may be suitable There are limitations for the following parts Only wash earthenware crockery in the dishwas- her if the manufacturer has expressly indicated that it is suitable. Some glazed finishes may fade after frequent ma- chine washing. Silver and aluminium parts tend to discolour during machine washing. -
Page 9: Prior To Using For The First Time
Prior to Using for the first Time Do the following steps before using your dishwasher for the first time. Filling with rinse aid 1. If the display indicator is lit, open the dispenser by pushing button (A). 2. Fill with rinse aid up to the ”max.” marking (B). Do not exceed the maximum container quantity of 150 ml! 3. -
Page 10: Setting The Special Salt Dosage
Setting the special salt dosage The dosage of special salt for the water softening must be set to the corresponding hardness of the water. If the dosage is too small, scale particles will remain on the crockery and cutlery. Information regarding the wa- ter hardness and the hardness areas in the area in which you live can be obtained from the local Water Authority. -
Page 11: Baskets
Baskets Cutlery basket with grid Lower basket Upper basket The illustration gives you some tips for the opti- mal loading of your dishwasher. Before loading, remove any food scraps. Do not rinse with warm water or use a manual de- tergent. -
Page 12: Lower Basket
Lower basket Heavily soiled, large pieces of crockery will be tho- roughly cleaned in the lower basket. 1. Pull out the lower basket to its full extent. 2. Arrange large and heavy pieces of crockery, such as plates, bowls, pots etc., in the lower basket. Do not change the position of the basket handle, as malfunctions may occur when the detergent container opens. - Page 13 Adjustable plate rail insert, 5 piece For deep plates or bowls, a part of the left plate rack can be removed. To remove the plate rail insert, the plate rack grip is pulled away upwards (A). The plate rack insert can also be used instead of the 10-piece plate rack, right (B).
-
Page 14: Upper Basket
Upper basket Delicate, smaller pieces of crockery are gently washed in the upper basket. 1. Pull out the upper basket to the stop. 2. Arrange the small, light and delicate pieces of crockery such as saucers, cup’s, glasses and tem- perature-resistant plastic parts in the upper bas- ket. - Page 15 The upper basket is adjusta− ble on the right Set the upper basket to the desired height, correspon- ding to your crockery. This is possible even when the upper basket is loaded. Raising: 1. Pull out the upper basket. 2. Lift up the right side. 3.
-
Page 16: Filling With Detergent
Filling with detergent Never use hand cleaning liquids or commercial cleaners. Only use detergents that are specifically mar- ked as suitable for use in domestic dishwas- hers. The detergent dispenser is normally open. If it is closed: 1. Press the button downwards, and the dispenser (A) will open. -
Page 17: Selecting And Starting The Programme
Selecting and starting the programme 1. Push the crockery basket completely in. 2. Press the main switch. 3. Use the programme selection button to select the desired programme. See programme table on page 19. The selected programme and control lamp will flash on the control panel. 4. -
Page 18: Programme Selection / Correcting Or Cancelling Delay Start
Programme selection / Correcting or deleting delay start 1. Open the door. The time remaining before washing commences is in- dicated on the control panel. 2. Press the “CANCEL” button for at least three se- conds. The start delay programme is deleted. Press the “CANCEL”... -
Page 19: Programme Chart
Programme chart Pre-wash Wash off cold Intensive Very heavily-soiled crockery 2 + e Very heavily-soiled crockery Normal Heavily-soiled crockery Recommended routine program The most economical programme for stubborn dirt. 3 + e “Energielabel” AAA *) BIO with prewash Normal to heavily-soiled crockery 4 + e Normal to heavily-soiled crockery ECO with prewash... -
Page 20: Error Message
Error message The electronics of the dishwasher can independently recognise and display faults. If a fault occurs, an error code in the display will blink. Please note down this error code before contacting your local Service Force Centre. The error message is deleted by switching off the main switch. -
Page 21: Cleaning And Care
Cleaning and care Refilling the special salt Never fill the salt dispenser with rinsing aids or detergents! When the salt replenishment lamp lights up, you must refill the special salt for the water softener. Proceed as described in the ”Using for the First Time” chapter, however you do not need to add any water during this process. -
Page 22: Cleaning The Fine Filter
Cleaning the fine filter The fine filter must be cleaned from time to time: 1. Unlock the filter by turning right. 2. Lift out the fine filter and clean it under running wa- ter with a brush. 3. Place the filter in its holder. 4. -
Page 23: Cleaning The Spray Arm Nozzles
Cleaning the spray arm nozzles Regularly check the nozzles on the three spray arms for blockages. If necessary, clean out the nozzles with a fine wire or a fine pin and a strong jet of water. Take care not damage the nozzle openings. Roof spray arm Remove the roof spray arm: 1. -
Page 24: Something Not Working
Something Not Working Please check whether you can rectify minor faults on the appliance yourself with the help of the following information. Should this information not be of assistance in your specific case, please contact your local Service Force Centre. The drain pump runs continually even when the appliance is switched off. -
Page 25: Service & Spare Parts
Serial Number Model Number Customer Care Department For general enquiries concerning your Zanussi ap- pliance or for further information on Zanussi products, please contact our Customer Care Department by letter or telephone at the address below or visit our www.zanussi.co.uk... -
Page 26: Guarantee Conditions
Guarantee Conditions Standard guarantee condi− tions We, Zanussi, undertake that if within 24 months of the date of purchase this Zanussi appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option... -
Page 27: Technical Data
Technical Data Dimensions Operational voltage Frequency Power consumption Power consumption Total power Mains water pressure Cold fill only Capacity Consumption Intensive Intensive + e Normal Normal + e Quick Quick + e * A standard place setting consists of: 1 soup bowl, 1 flat plate, 1 dessert plate, 1 saucer, 1 cup, 1 glass, 1 knife, 1 fork, 1 soup spoon, 1 dessert spoon, 1 tea spoon. -
Page 28: Installation Instructions
Installation Instructions General Any electrical work required to install this ap- pliance should be carried out by a qualified electrician or competent person. Any plumbing work required to install this ap- pliance should be carried out by a qualified plumber or competent person. The dishwasher is delivered ready for connection, i.e. -
Page 29: Electrical Connection
Electrical connection This appliance must be earthed. The manufacturer declines any responsibility should this safety measure not be observed. Before switching on make sure the electricity supply voltage is the same as that indicated on the appliance rating plate. Changing a fuse Your appliance is supplied with a 13 amp plug fitted. -
Page 30: Installation
Installation Cut out the side walls of the niche according to dra- wing (fig.1). This is necessary for the diving-in of the door when it is being opened. Attach the moulding to the side panels of the furni- ture as described in the assembly sketch. Mounting of the door laminate to the door accor- ding to separate drilling template. -
Page 31: Information For Test Institutes
Information for Test Institutes Prior to the tests, the salt container for the water softener and the rinse aid container must be completely full. Test standard: EN 50 242 Comparison programme: Normal + Oeko (e+) Capacity: 11 standard place settings Detergent dosing: 27,5 g in the detergent container... - Page 32 From The Electrolux Group. The world’s No. 1 choice. The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerations, cookers, washing machines, vaccum cleaners, chain saws and lawn mowers) are sold each year for a value of approx.
