Summary of Contents for Stahls A2Z HEAT PRESS

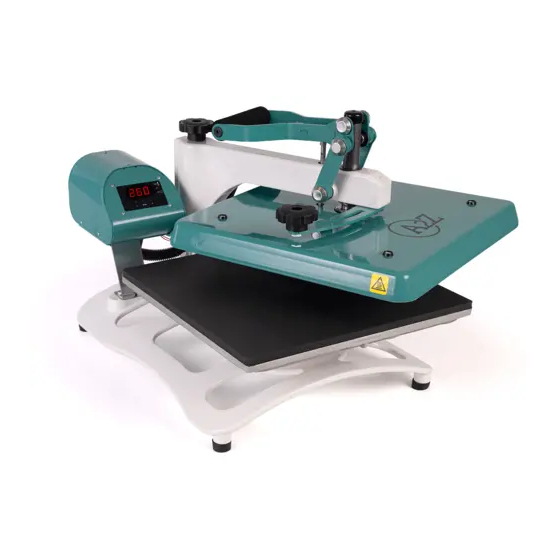

- Page 1 A2Z HEAT PRESS Operator’s Manual Get Pressin’...
-
Page 2: Safety Precautions
Safety Precautions Before You Start, Read the Safety Precautions When using your heat press, basic precautions should always be followed, including the following: 1. Read all instructions. 2. Use heat press only for its intended use. 3. To reduce the risk of electric shock, do not immerse the heat press in water or other liquids. 4. -
Page 3: Table Of Contents
Table of Contents Safety Precautions Part Identification Operating Instructions Initial Setup Maintenance & Service Transportation & Storage Getting Started Changing the Lower Platen Electrical Schematic 10-11 Replacement Parts List Contact Warranty Registration ˙ ˙ Log onto A2ZHEATPRESS.COM You must provide the heat press serial number and model information. -
Page 4: Part Identification
Part Identification Print Handle Upper Platen (Heater) Pressure Adjustment Knob Swing Handle Control Panel Lower Platen Base Power Switch Circuit Breaker Cable Conduit Power Inlet... -
Page 5: Operating Instructions
Operating Instructions Initial Setup Carefully follow the step-by-step instructions for best results: • To avoid burns, do not touch the heated upper platen during use. • Keep hands clear of the upper platen during platen lock down as the pressure may cause injury. -
Page 6: Getting Started
Operating Instructions Getting Started: Temperature, Time, and Pressure Recommended settings vary based on the garment material and type of transfer. It’s important to review the application instructions included with your transfers for the recommended settings. Lasting, durable prints can be easily achieved when observing these three essential specifications. •... - Page 7 Operating Instructions Using the swing handle, move the upper Position the garment on the lower platen, platen to access the lower platen. While heating, centering the transfer area on the platen. the print handle should remain raised to extend the life of the silicone pad. For best results, “thread”...
-
Page 8: Changing The Lower Platen
Operating Instructions Changing the Lower Platen Your heat press is equipped with an interchangeable lower platen. Swing away the upper platen using the swing Loosen and completely remove the platen knob handle to access the lower platen. located underneath the base. Lift the 15"... -
Page 9: Electrical Schematic
Electrical Schematic All copyright, trademarks and all other intellectual property rights in this document and its content (including without limitation the design, text, graphics and all equipment and patents described within the document) are owned by or licensed to Hotronix, LLC or otherwise used by Hotronix, LLC as permitted by law. 4/20/2020... -
Page 10: Replacement Parts List
Replacement Parts List DESCRIPTION PART # DESCRIPTION PART # A2Z Lower Platen, 15" X 15" 3-1384 36 3/8-16" x 3/4" HHCS ZINC 3-1011-41 Skinny Adapter Plate 3-1336-1 Knob with Cap, 3/8"-16 Thread 1-2621 Silicone Pad 15" x 15" Black 1-2622 Washer, Split Lock 1/4"... - Page 11 Exploded View...
- Page 12 Contact Us Support@A2ZHeatPress.com A2ZHeatPress.com...
