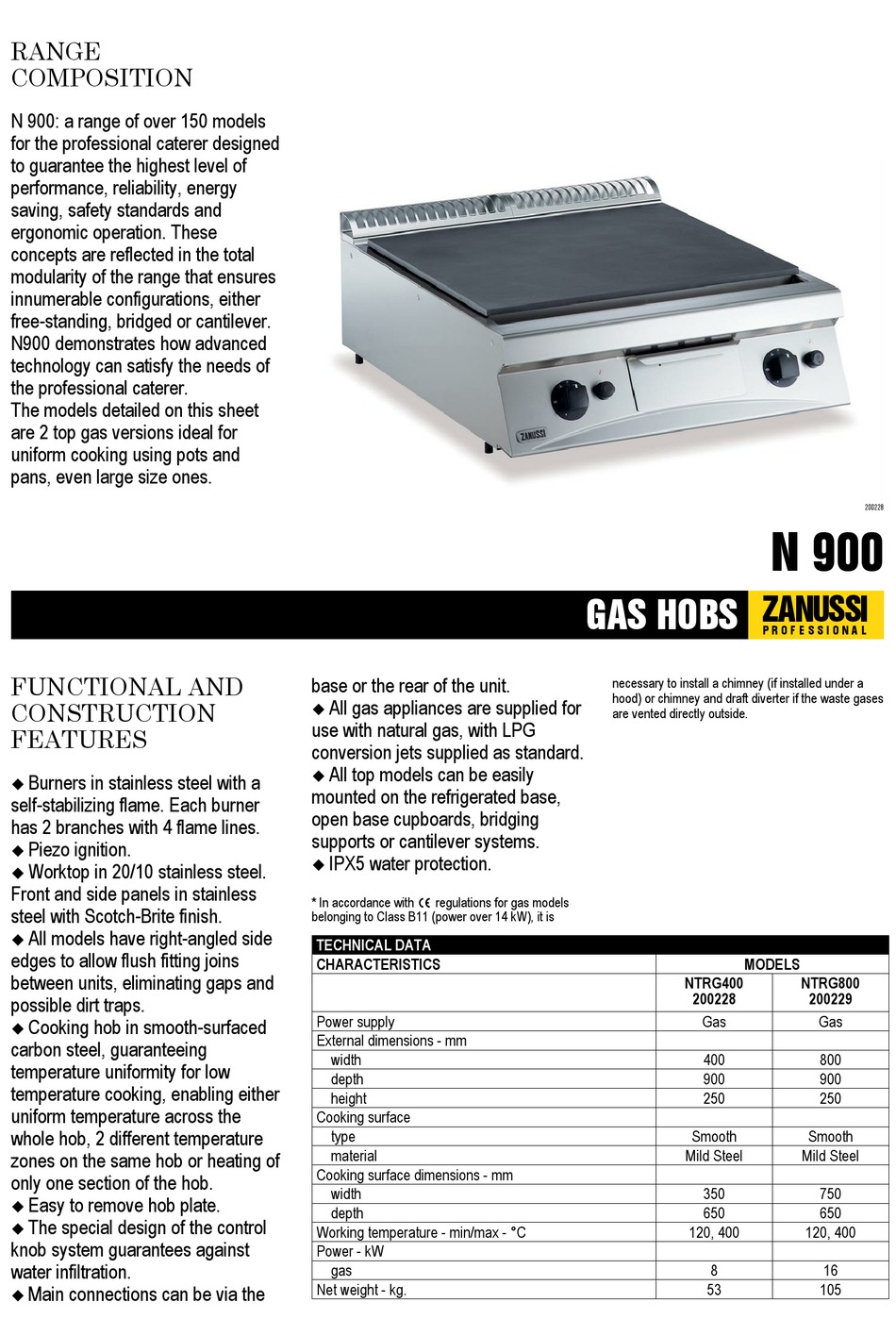

RANGE
COMPOSITION
N 900: a range of over 150 models
for the professional caterer designed
to guarantee the highest level of
performance, reliability, energy
saving, safety standards and
ergonomic operation. These
concepts are reflected in the total
modularity of the range that ensures
innumerable configurations, either
free-standing, bridged or cantilever.
N900 demonstrates how advanced
technology can satisfy the needs of
the professional caterer.
The models detailed on this sheet
are 2 top gas versions ideal for
uniform cooking using pots and
pans, even large size ones.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
Burners in stainless steel with a
self-stabilizing flame. Each burner
has 2 branches with 4 flame lines.
Piezo ignition.
Worktop in 20/10 stainless steel.
Front and side panels in stainless
steel with Scotch-Brite finish.
All models have right-angled side
edges to allow flush fitting joins
between units, eliminating gaps and
possible dirt traps.
Cooking hob in smooth-surfaced
carbon steel, guaranteeing
temperature uniformity for low
temperature cooking, enabling either
uniform temperature across the
whole hob, 2 different temperature
zones on the same hob or heating of
only one section of the hob.
Easy to remove hob plate.
The special design of the control
knob system guarantees against
water infiltration.
Main connections can be via the
base or the rear of the unit.
All gas appliances are supplied for
use with natural gas, with LPG
conversion jets supplied as standard.
All top models can be easily
mounted on the refrigerated base,
open base cupboards, bridging
supports or cantilever systems.
IPX5 water protection.
* In accordance with H regulations for gas models
belonging to Class B11 (power over 14 kW), it is
TECHNICAL DATA
CHARACTERISTICS
Power supply
External dimensions - mm
width
depth
height
Cooking surface
type
material
Cooking surface dimensions - mm
width
depth
Working temperature - min/max - °C
Power - kW
gas
Net weight - kg.
GAS HOBS
necessary to install a chimney (if installed under a
hood) or chimney and draft diverter if the waste gases
are vented directly outside.
MODELS
NTRG400
200228
Gas
400
900
250
Smooth
Mild Steel
350
650
120, 400
8
53
200228
N 900
ZANUSSI
P R O F E S S I O N A L
NTRG800
200229
Gas
800
900
250
Smooth
Mild Steel
750
650
120, 400
16
105
