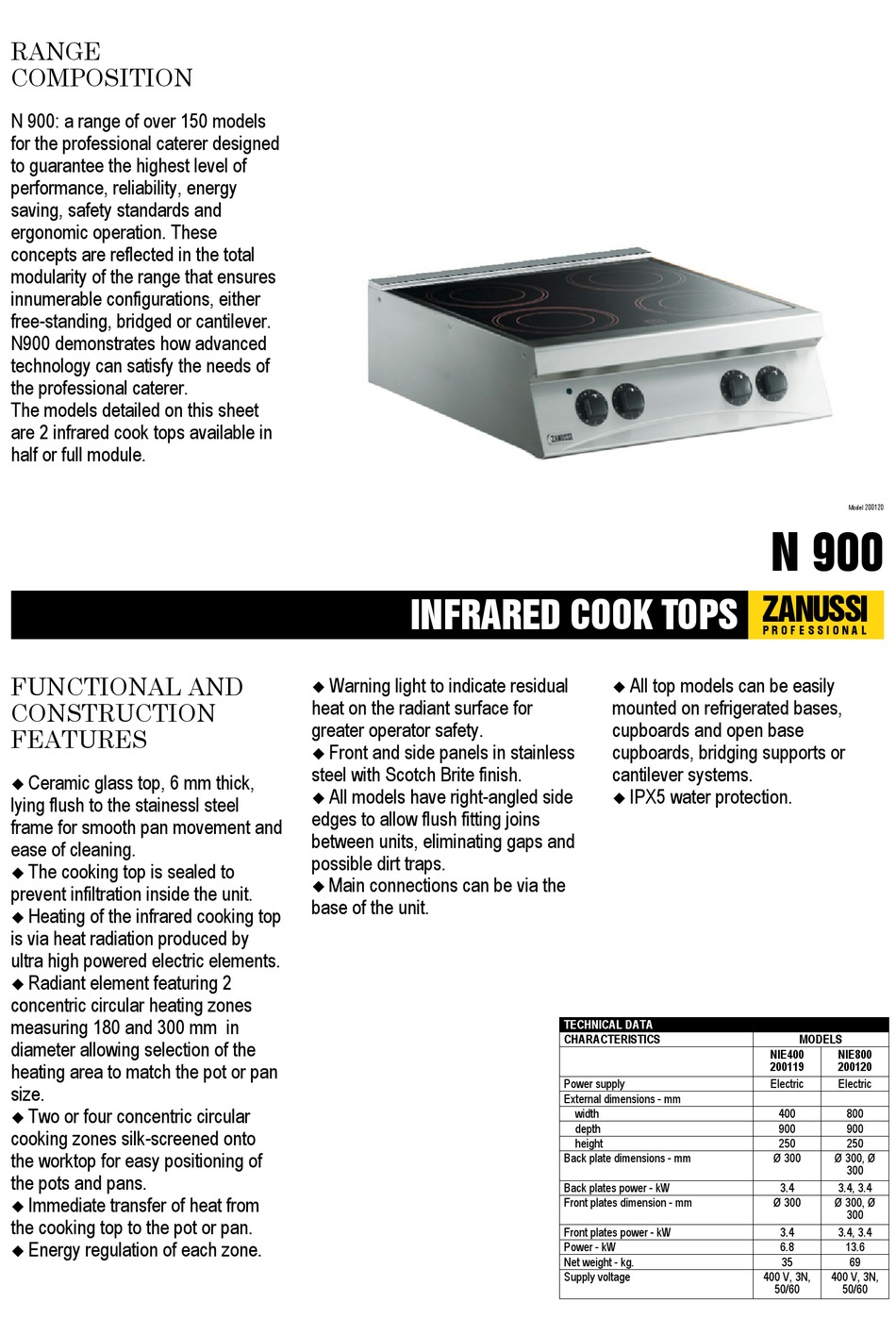

Zanussi 200119 Specifications

RANGE
COMPOSITION
N 900: a range of over 150 models
for the professional caterer designed
to guarantee the highest level of
performance, reliability, energy
saving, safety standards and
ergonomic operation. These
concepts are reflected in the total
modularity of the range that ensures
innumerable configurations, either
free-standing, bridged or cantilever.
N900 demonstrates how advanced
technology can satisfy the needs of
the professional caterer.
The models detailed on this sheet
are 2 infrared cook tops available in
half or full module.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
Ceramic glass top, 6 mm thick,
�
lying flush to the stainessl steel
frame for smooth pan movement and
ease of cleaning.
The cooking top is sealed to
�
prevent infiltration inside the unit.
Heating of the infrared cooking top
�
is via heat radiation produced by
ultra high powered electric elements.
Radiant element featuring 2
�
concentric circular heating zones
measuring 180 and 300 mm in
diameter allowing selection of the
heating area to match the pot or pan
size.
Two or four concentric circular
�
cooking zones silk-screened onto
the worktop for easy positioning of
the pots and pans.
Immediate transfer of heat from
�
the cooking top to the pot or pan.
Energy regulation of each zone.
�
INFRARED COOK TOPS
Warning light to indicate residual
�
heat on the radiant surface for
greater operator safety.
Front and side panels in stainless
�
steel with Scotch Brite finish.
All models have right-angled side
�
edges to allow flush fitting joins
between units, eliminating gaps and
possible dirt traps.
Main connections can be via the
�
base of the unit.
All top models can be easily
�
mounted on refrigerated bases,
cupboards and open base
cupboards, bridging supports or
cantilever systems.
IPX5 water protection.
�
TECHNICAL DATA
CHARACTERISTICS
Power supply
External dimensions - mm
width
depth
height
Back plate dimensions - mm
Back plates power - kW
Front plates dimension - mm
Front plates power - kW
Power - kW
Net weight - kg.
Supply voltage
Model 200120
N 900
ZANUSSI
P R O F E S S I O N A L
MODELS
NIE400 NIE800
200119 200120
Electric Electric
400 800
900 900
250 250
Ø 300 Ø 300, Ø
300
3.4 3.4, 3.4
Ø 300 Ø 300, Ø
300
3.4 3.4, 3.4
6.8 13.6
35 69
400 V, 3N, 400 V, 3N,
50/60 50/60
