Zanussi 178021 Specifications

Induction tops.
Hide thumbs

RANGE
COMPOSITION
N 700: a range of over 100 models
for the professional caterer designed
to guarantee the highest level of
performance, reliability, energy
saving, safety standards and
ergonomic operation. These
concepts are reflected in the total
modularity of the range that ensures
numerous configurations, either
free-standing or bridged. N 700
demonstrates how advanced
technology can satisfy the needs of
the professional caterer.

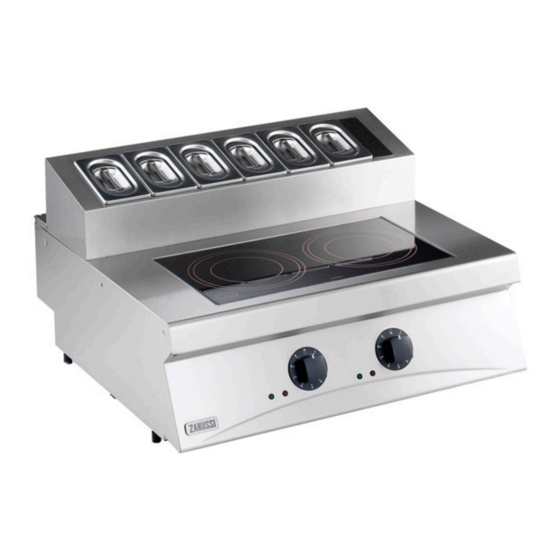

The models detailed on this sheet
are induction plate tops available in
half or full module versions.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
Work top in 1,5 mm stainless
steel. Front panel in stainless steel.
Glass ceramic cooking surface 6
mm thick
2/4 independently controlled
induction zones with diameter 230
mm and power 3,5 kW allowing very
low cooking times and avoiding
heating dispersions
Cooking zones are activated only
when in direct contact with pans that
are specific for induction plates. The
cooking zone not in contact with a
pan is not activated and remains
cold.
Induction plates are complete with
overheating safety device
Control panel with 9 different
levels of power, allowing an easy
and precise cooking. Ideal for
cooking delicate foods.
IPX4 water protection.
Main connections can be via the
rear or the base of the unit.
All models can be easily mounted
on open base cupboards or bridging
supports.
All top models provided with
service duct to facilitate installation.
TECHNICAL DATA
CHARACTERISTICS
Power supply
External dimensions - mm
width
depth
height
Back plate dimensions - mm
Back plates power - kW
Front plates dimension - mm
Front plates power - kW
Total Power - kW
Net weight - kg.
Supply voltage
2 zones crosswise
INDUCTION TOPS
KIND400
KIND4002
178021
178029
Electric
Electric
400
400
700
700
250
250
Ø 230
Ø 230
3.5
3.5
Ø 230
Ø 230
3.5
3.5
7
7
20
20
400 V, 3N,
230 V, 3,
50/60
50/60
N 700
ZANUSSI
P R O F E S S I O N A L
MODELS
KIND800
KIND8002
KIND800F
178022
178030
178041
Electric
Electric
Electric
800
800
800
700
700
700
250
250
250
Ø 230, Ø
Ø 230, Ø
230
230
3.5, 3.5
3.5, 3.5
Ø 230, Ø
Ø 230, Ø
Ø 230, Ø
230
230
230
3.5, 3.5
3.5, 3.5
3.5, 3.5
14
14
40
40
40
400 V, 3N,
230 V, 3,
400 V, 3N,
50/60
50/60
50/60
178021
7
l
