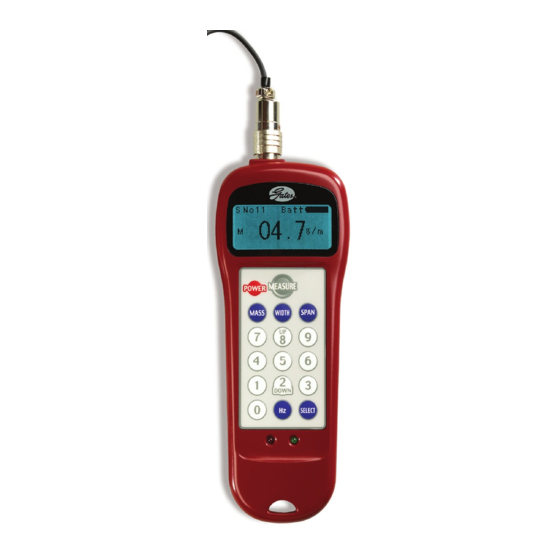

Gates Belt Tension Meter
Sonic 508C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sonic 508C and is the answer not in the manual?

Questions and answers

Related Manuals for Gates Sonic 508C

Summary of Contents for Gates Sonic 508C

  • Page 1 Gates Belt Tension Meter Sonic 508C...
  • Page 2 What’s New?
  • Page 3 SONIC 508C New box design...
  • Page 4 SONIC 508C New features...
  • Page 5 SONIC 507C SONIC 508C New key path color...
  • Page 6 What’s in the box?
  • Page 7 SONIC 508C...
  • Page 8 SONIC 508C Sonic 508C - package (PN 7420-00508) + Sonic Tension meter manual + Calibration sheet...
  • Page 9 SONIC 508C Sonic 508C - package (PN 7420-00508)
  • Page 10 Sensors...
  • Page 11 SONIC 508C Standard: flexible arm sensor (PN 7420-00206) - acoustic...
  • Page 12 SONIC 508C Standard: flexible arm sensor (PN 7420-00206) - acoustic Sensor head Sensor connector ₋ Acoustic sensor ₋ 170 mm. arm length ₋ Range: 10 – 5.000 Hz...
  • Page 13 SONIC 508C Optional: cord sensor (PN 7420-00204) - acoustic...
  • Page 14 SONIC 508C Optional: cord sensor (PN 7420-00204) - acoustic Sensor head Sensor connector ₋ Acoustic sensor ₋ 1.000 mm. cord length ₋ Range: 10 – 5.000 Hz...
  • Page 15 SONIC 508C Optional: cord sensor (PN 7420-00212) - inductive...
  • Page 16 SONIC 508C Optional: cord sensor (PN 7420-00212) - inductive Sensor head Sensor connector ₋ Inductive/magnetic sensor ₋ 1.000 mm. cord length ₋ Range: 10 – 5.000 Hz ₋ 5 magnets included...
  • Page 17 SONIC 508C › Magnets – Use with inductive sensor – Neodynium (NdFeB) – 9.5 mm. diameter – 1.6 mm. thickness...
  • Page 18 SONIC 508C...
  • Page 19 SONIC 508C...
  • Page 20 SONIC 508C All sensors are compatible and can be installed on the Gates Sonic Tension meter models: Sonic 505C Sonic 507C Sonic 508C...
  • Page 21 package offering...
  • Page 22 SONIC 508C Sonic 508C – standard + inductive package (PN 7420-10508)
  • Page 23 SONIC 508C Sonic 508C – standard + inductive package (PN 7420-10508) Inductive package Inductive cord sensor Magnets (5 pieces)
  • Page 24 Operation...
  • Page 25 SONIC 508C...
  • Page 26 SONIC 508C LCD Screen...
  • Page 27 SONIC 508C LCD Screen Key path...
  • Page 28 SONIC 508C LCD screen...
  • Page 29 SONIC 508C LCD screen Storage register Frequency setting “MASS” “WIDTH” Battery level meter “SPAN”...
  • Page 30 SONIC 508C LCD screen Unit weight extract “MASS” Use “Mass” key Input from 000.1 to 999.9 gr./m. Gram/meter enter factors...
  • Page 31 SONIC 508C LCD screen “WIDTH” Use “Width” key Input from 000.1 to 999.9 • Synchronous: enter width in millimeter • V-belt: enter number of belts • Micro-V, Polyflex JB, PowerBand: enter number of strands...
  • Page 32 SONIC 508C LCD screen “SPAN” Use “Span” key Input from 0001 to 9999 mm.
  • Page 33 SONIC 508C LCD screen Frequency setting Use “Range/0” key Select frequency range using “UP/8” or “DOWN/2” button • S: standard: 10 – 600 Hz • H: high: 500 – 5.000 Hz.
  • Page 34 SONIC 508C LCD screen Storage register Use “Select” key Toggle between the 40 input locations...
  • Page 35 SONIC 508C Key path...
  • Page 36 SONIC 508C Key path Power switch...
  • Page 37 SONIC 508C Key path Belt unit weight key...
  • Page 38 SONIC 508C Key path Belt width key...
  • Page 39 SONIC 508C Key path Belt span key...
  • Page 40 SONIC 508C Key path Data selection key...
  • Page 41 SONIC 508C Key path Frequency range key...
  • Page 42 SONIC 508C Key path Up button...
  • Page 43 SONIC 508C Key path Down button...
  • Page 44 SONIC 508C Key path Frequency/Tension key...
  • Page 45 SONIC 508C Key path Measure key...
  • Page 46 SONIC 508C Key path Indicator lights...
  • Page 47 SONIC 508C Key path Indicator lights Green LED Flash until a signal is received...
  • Page 48 SONIC 508C Key path Indicator lights Red LED Flash when no frequency signal or no belt tension can be measured...
  • Page 49 SONIC 508C Measurement...
  • Page 51 SONIC 508C › Background noise: – Microphone gain level: set automatic when unit is turned on based on background noise – To reach microphone sensitivity: Turn on meter without microphone attached Wait for meter to power up Connect microphone Measure belt frequency/tension –...
  • Page 52 SONIC TENSION METER 508C...
