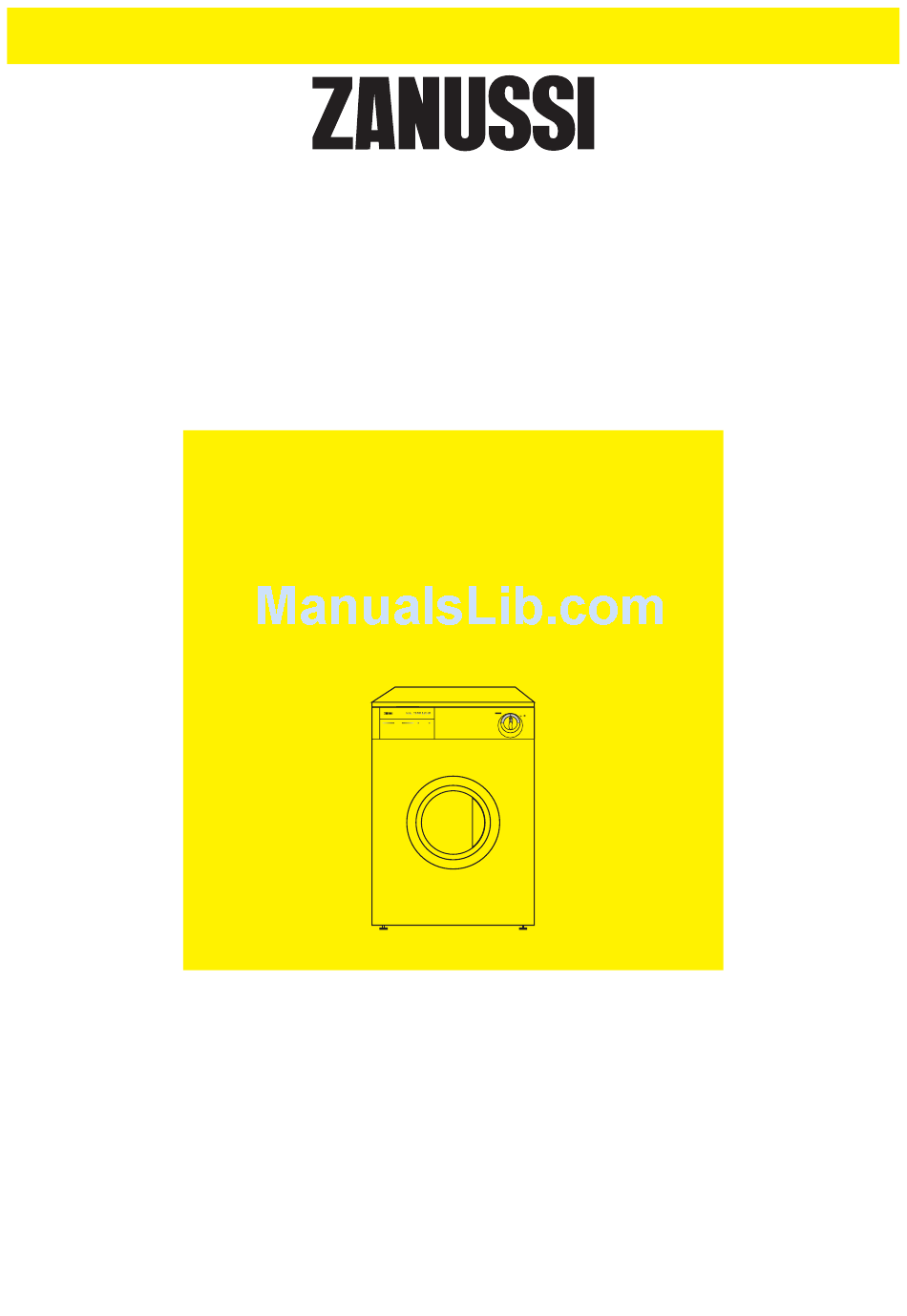

Zanussi TDS 280 W Instruction Booklet

Zanussi instruction booklet tumble dryer tds 280 w.
Hide thumbs

Advertisement

125995121
TUMBLE DRYER
TDS 280 W
COTTON
IRON DRY
Spun at rpm
800 / 900
1000 / 1200
kg 5
70' - 90'
65' - 85'
kg 2.5
IMPORTANT: PLEASE READ THE INSTRUCTION BOOK BEFORE USING THIS APPLIANCE
INSTRUCTION BOOKLET
SYNTHETICS
STORE DRY
STORE DRY
STORE DRY
650
800 / 900
1000 / 1200
Spun at rpm
80' - 100'
75' - 95'
kg 2
30' - 40'
kg 1
20' - 30'
T D S
3 8 2 W

Advertisement

   Related Manuals for Zanussi TDS 280 W

   Summary of Contents for Zanussi TDS 280 W

  • Page 1: Tumble Dryer

    TUMBLE DRYER 125995121 TDS 280 W COTTON SYNTHETICS IRON DRY STORE DRY STORE DRY STORE DRY Spun at rpm 800 / 900 1000 / 1200 800 / 900 1000 / 1200 Spun at rpm kg 5 70' - 90' 65' - 85'...

  • Page 2: Important Safety Information

    Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Zanussi Service Centre. Always insist on genuine Zanussi spare parts.

  • Page 3: Table Of Contents

    Contents For the User Important Safety Information Installation Child Safety Your New Tumble Dryer Description of the Appliance The Control Panel Mains-on light Time selector dial Programme Chart Operating Sequence Load the laundry Select the drying time When drying is completed Hints &...

  • Page 4: Your New Tumble Dryer

    Your New Tumble Dryer This tumble dryer will give your wash that soft, relaxed feel whatever the weather. Extremely high quality standards both during development and manufacturing guarantee a long service life for your appliance. Maximum economy in the operation of your dryer is achieved through very frugal electricity consumption and short drying times.

  • Page 5: Description Of The Appliance

    Description of the Appliance 01 Top cover 02 Programme chart 03 Mains-On Light 04 Drying Time Selector Dial 05 Rating Plate 06 Fluff filter 07 Door Handle 08 Adjustable feet 09 Side vent outlet 10 Ring nut 11 Rear vent outlet COTTON SYNTHETICS IRON DRY...

  • Page 6: The Control Panel

    The Control Panel COTTON IRON DRY STORE DRY Spun at rpm 800 / 900 1000 / 1200 800 / 900 1000 / 1200 kg 5 70' - 90' 65' - 85' 80' - 100' 75' - 95' kg 2.5 35' - 50' 30' - 45' 55' - 70' 50' - 65'...

  • Page 7: Programme Chart

    Programme Chart Cotton and linen Selector dial: up to 120 minutes Type of laundry: Cotton Towelling Shirts Sheets Hand towels Tablecloths Table napkins (not completely dry; suitable for ironing) Synthetics Selector dial: up to 80 minutes Type of laundry: Degree of drying Synthetics or mixed fabrics which do not require ironing.

  • Page 8: Operating Sequence

    Operating Sequence Before using your tumble dryer for the first time, we recommend to place a few damp cloths inside the appliance and dry for approximately 20 minutes. There may be dust inside a brand new tumble dryer. 1. Load the laundry Open the door by pulling the door handle forwards.

  • Page 9: Hints & Tips On Drying

    Hints & Tips on Drying Before placing articles of laundry in your tumble dryer, check the care labels to ensure they are recommended for tumble drying. Care Labels you may find on your laundry normal drying (high temperature) delicate drying (low temperature) do not tumble dry Do not overload the appliance.

  • Page 10: Maintenance And Cleaning

    Maintenance and Cleaning You must disconnect the appliance from the electricity supply, before you can carry out any cleaning or maintenance work. External cleaning Use only soap and water and then dry thoroughly. From time to time, apply a little wax furniture cream with a soft cloth.

  • Page 11: Something Not Working

    Zanussi Service Force Centre. Service & Spare Parts If you require an engineer or wish to purchase spare parts contact your local Zanussi Service Force Centre by telephoning: 0870 5 929929 Your telephone call will be routed to the Service Centre covering your post code area.

  • Page 12: Guarantee Conditions

    Peace of Mind for Twelve Months Standard guarantee conditions We, Zanussi Limited undertake that if, within 12 months of the date of the purchase, this Zanussi appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials,...

  • Page 13: Installation Instructions

    Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

  • Page 14: Positioning

    Positioning It is recommended that, for your convenience, the machine is positioned close to your washing machine. Whilst drying, the tumble dryer will expel a certain amount of warm, very moist air, and this should be removed from the room as quickly as possible to prevent condensation.

  • Page 15

    Advice: If the hose is long and the room temperature low, the moisture might condense to water inside the hose. This is an unavoidable natural phenomenon. To prevent this water from lying in the hose or flowing back into the tumble dryer, it is advisable to drill a small hole (dia.

  • Page 16: Door Reversal

    Door reversal To make it easier to load or unload the laundry the door can be reversed. This operation must be carried out by qualified personnel. Operate as follows: - Remove the door by unscrewing the two screws (1) fastening the hinge to the cabinet (Fig. A). - Remove the safety catch (2) by pressing it downwards (Fig.

  • Page 17: Electrical Connection

    Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. WARNING: THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any liability should this safety measure not be observed. Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance’s rating plate.
