Summary of Contents for Z Microsystems Multi Processor Unit Z MPU

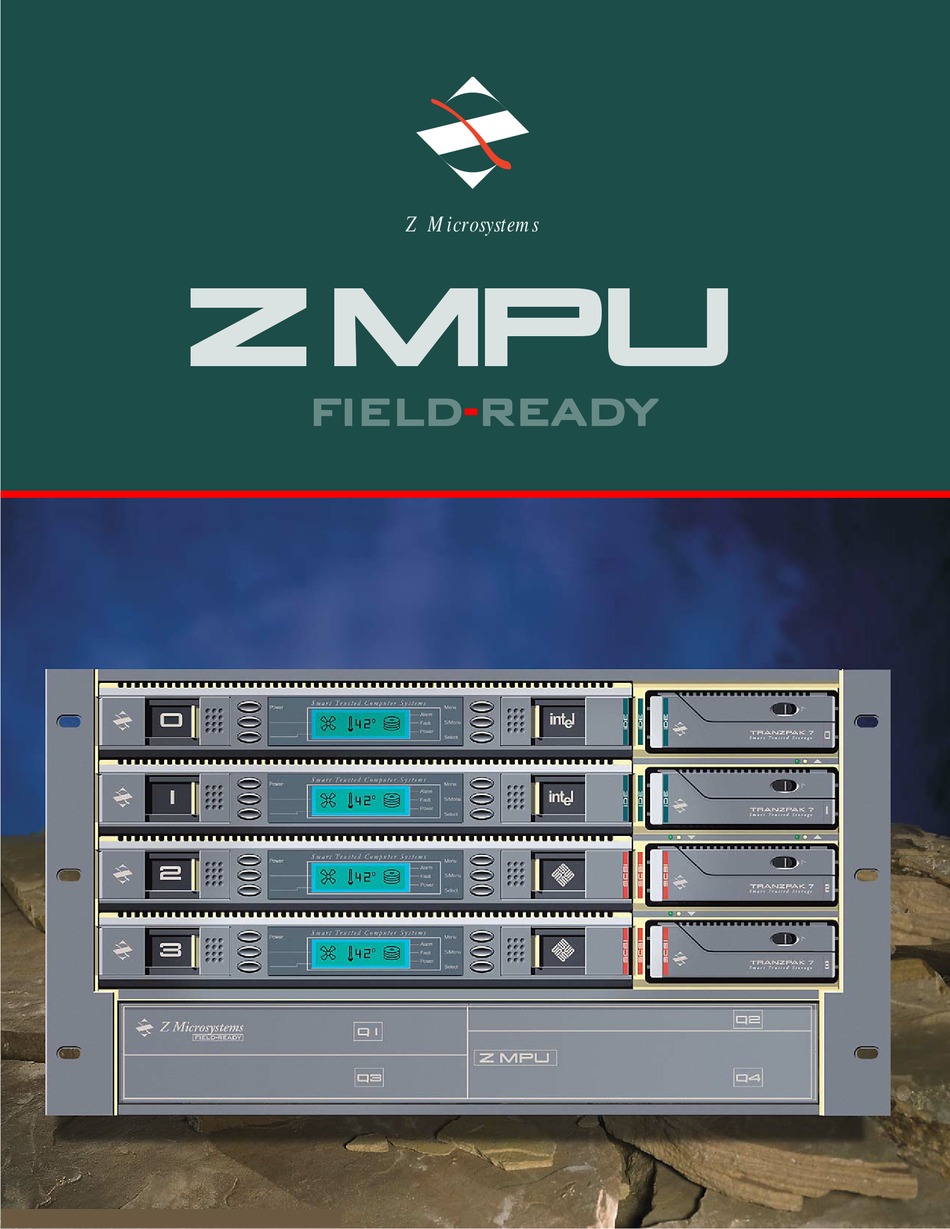

- Page 1 Z Microsystems Z Z M FIELD FIELD FIELD FIELD FIELD - - - - - READ READ Y Y Y Y Y READ READ READ...
- Page 2 System Overview System Sealed Sealed Independent Independent Z MPU Z MPU Z MPU Z MPU Z MPU • Shared Chassis -- Shared Peripherals • Less space, less weight, less power, less cost The rugged Z MPU delivers four independent computers. Each computer is an Intel or Sun COTS computer encased in its own environmentally sealed...
- Page 3 Component Overview TranzPak 7 Hot swap TranzPak 7 Modules contain environmentally sealed IDE or SCSI hard drives. Internal DC Power Input Inside Look and Switched USB Dedicated 28 VDC Power and ATX Interface Board Heatsinks conduct thermal energy to module cover for dispersion ATX Motherboard...
- Page 4 Shared Peripherals & System Administration Peripheral Sharing Peripheral Cluster Remote SysAdmin • Shared Peripheral Clusters The Peripheral Device Layer organizes an array of the most popular USB devices (CDW, floppy, PCMCIA) and an external hub into four switchable clusters that can be individually and dynamically switched to any SCM.
- Page 5 DC Power In Quad modulated fan array provides front to back cooling Fan array control board Z Microsystems - Multi Processor Unit echnolog echnolog echnolog echnolog y Inser Switched peripheral and power distribution backplane y Inser y Inser tion...
- Page 6 Operating Humidity 5% to 95% Non condensing Non Op. Humidity 5% to 95% Non condensing Z Microsystems 5945 Pacific Center Blvd., Suite 505 San Diego, CA 92121-4309 T: 858.657.1000 F: 858.657.1001 Shipping Humidity 5% to 95% Non condensing Non Op. Altitude -1,300 to 40,000 ft.
