LCD WaLL Mount
QuICK InStaLL GuIDE
Model 422840
•
Securely holds one LCD monitor
on wall to improve views, increase
work space and minimize clutter
•

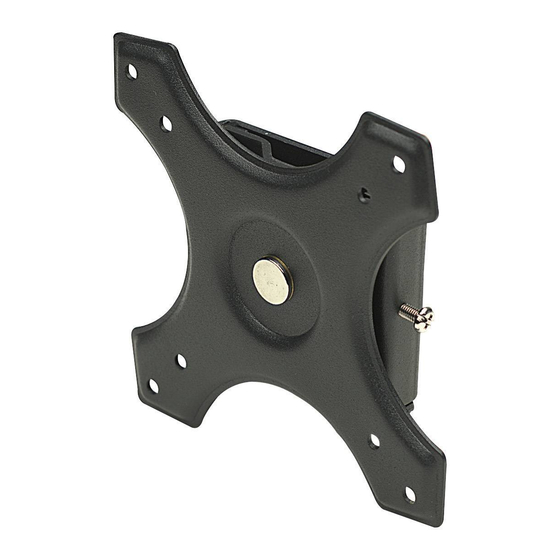

Two-piece bracket with heavy-duty, steel construction
easily mounts to most vertical surfaces
•
Meets VESA standards — fits monitors up to 22" and up to
26 pounds
•
Lifetime Warranty
SpecificationS
general
• Fits 75 x 75 mm / 100 x 100 mm
VESA-compliant monitors up to 22"
• Monitor weight capacity: up to 15 kg
(33 lbs.)
MANHATTAN
All products mentioned are trademarks or registered trademarks of their respective owners.
• Installs approximately 2.5 cm (1 in.)
from most vertical surfaces
Dimensions
• Bracket dimensions: 7.6 x 7 cm
(3 x 2.75 in.)
offers a complete line of PC Components, Peripherals, Cables and Accessories.
®
Ask your local computer dealer for more information or visit us online at
www.manhattan-products.com
Copyright © MANHATTAN
Thank you for purchasing this MANHATTAN
Wall Mount, Model 422840.
Fully adjustable tilt, rotate, side-to-side and tension
settings allow a single LCD display to be reliably
secured and positioned for a comfortable viewing
position.
Instructions are on the back of this
• Mount clearance, 12.7 cm (5 in.)
• Weight: 338 g (0.85 lbs.)
package contents
• LCD Wall Mount
• Installation hardware with instructions
LCD
®
sheet.
MH-422840-miniQIG-1009-03
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Manhattan 422840
Summary of Contents for Manhattan 422840
- Page 1 LCD WaLL Mount Thank you for purchasing this MANHATTAN ® Wall Mount, Model 422840. QuICK InStaLL GuIDE Fully adjustable tilt, rotate, side-to-side and tension settings allow a single LCD display to be reliably Model 422840 secured and positioned for a comfortable viewing position.
- Page 2 aSSembly inStructionS Always handle the LCD monitor with care during assembly bolts are properly tightened to prevent possible damage to of this LCD Wall Mount. Disconnect any cords or cables the monitor or nearby items. After assembly, periodically that could otherwise interfere with the placement of any check the fittings to ensure no slippage or loosening has of the components, and make sure that any screws and occured that could result in monitor damage.
