YORKVILLE COLISEUM C1890 Bracket User Manual

Coliseum C1890 Bracket

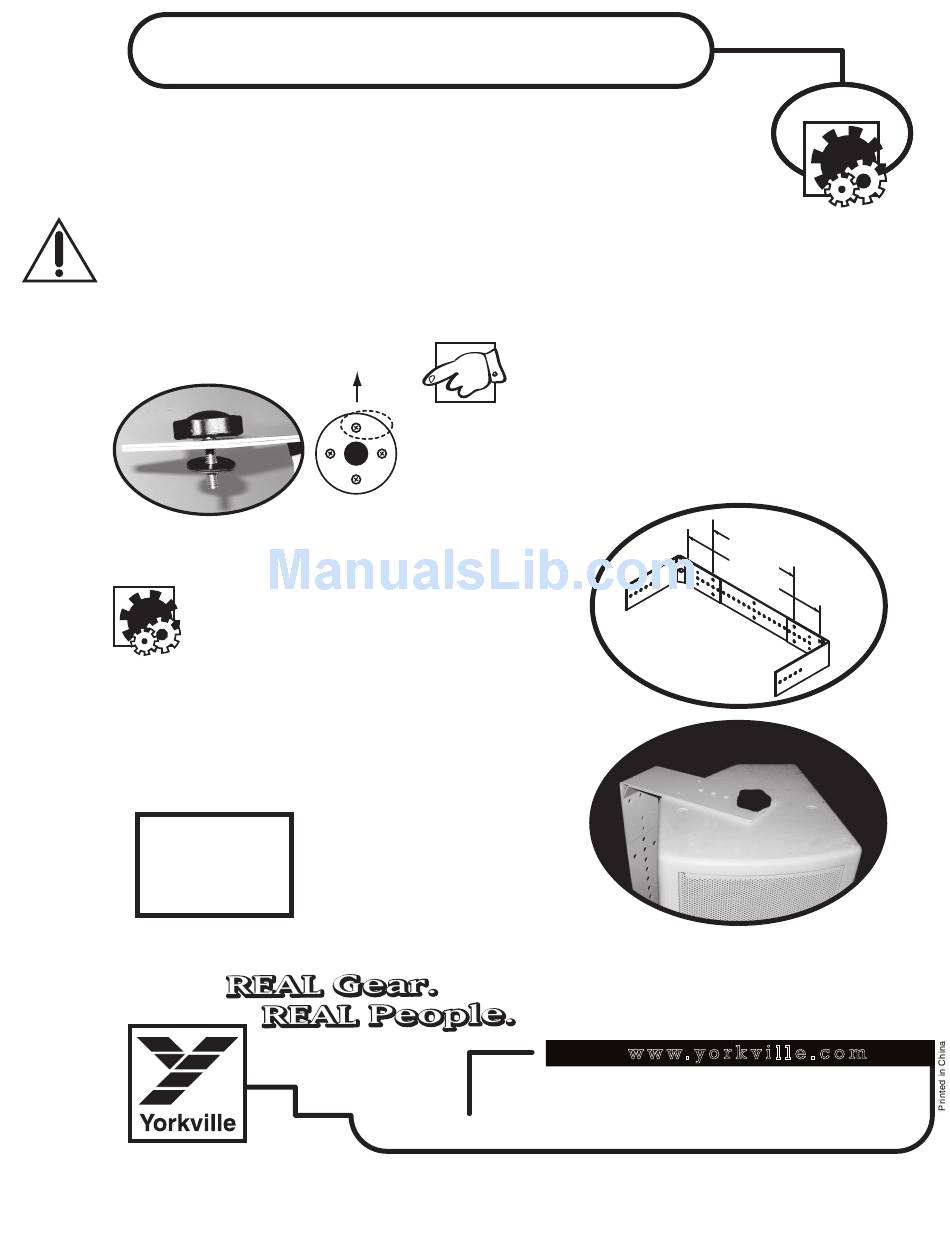

INSTALLATION HARDWARE FOR THE COLISEUM C1890 ENCLOSURE

DESCRIPTION

The Coliseum C1890 is one of the many Yorkville speaker enclosures that are equipped with flying
hardware for overhead suspension applications. This kit was specifically designed to expand the
Coliseum C1890's mounting capabilities.

IMPORTANT!!

THE RIGGING OF LOUDSPEAKER SYSTEMS IS AN EXTREMELY SERIOUS MATTER. OVERHEAD RIGGING REQUIRES EXTENSIVE
EXPERIENCE, INCLUDING (BUT NOT LIMITED TO) CALCULATING WORKING LOAD LIMITS, HARDWARE INSTALLATION, AND
PERIODIC SAFETY INSPECTION OF ALL HARDWARE AND CABINETRY. IF YOU LACK THESE QUALIFICATIONS, DO NOT ATTEMPT
THE INSTALLATION YOURSELF, BUT INSTEAD USE A PROFESSIONAL STRUCTURAL RIGGER. IMPROPER INSTALLATION CAN
RESULT IN BODILY INJURY OR DEATH. CONSULT A STRUCTURAL ENGINEER TO CALCULATE ADDED LOADS FOR A BUILDING.
STRUCTURAL REINFORCEMENT MAY BE NECESSARY TO INSURE A SAFE INSTALLATION.
When mounting to a ceiling or wall, always screw into
the building's support joists or studs for stability. We
have provided mounting holes spaced 16-inches apart
to accommodate typical wall stud spacing.
Note: You may have to drill holes and insert wall anchors when
mounting onto a concrete wall or ceiling. We recommend a
minimum of 4 screws per bracket. Extra screws used for
reinforcement are always a good idea. We recommend using
1/4-inch diameter bolts as a minimum.

kit contains

• 1 C1890 Bracket
• 2 Rubber Washers
• 2 Bolt/Knobs
Enclosure Front
2. While installing hardware onto the brackets, place
the rubber washers in between the speaker cabinet
and the bracket. This will prevent undue damage to
the speaker cabinet as well as provide proper
spacing for the brackets.
1. Remove the flyware bolts from the top
and bottom of the C1890 enclosure (center
bolts) using a 7/32-inch Allen key.
Here is the completed assembly.
Canada
Voice: (905) 837-8481
Fax: (905) 837-8746
w w w . y o r k v i l l e . c o m
Yorkville Sound
550 Granite Court
Pickering, Ontario
L1W-3Y8 CANADA
Manual-Owners-C1890-PG1-ENGLISH-1v2 • Nov18/2009
6 i
n c
h e
s
1 6
i n c
h e
s
U.S.A.
Voice: (716) 297-2920
Fax: (716) 297-3689
Yorkville Sound Inc.
4625 Witmer Industrial Estate
Niagara Falls, New York
14305 USA
