York 110 Specifications

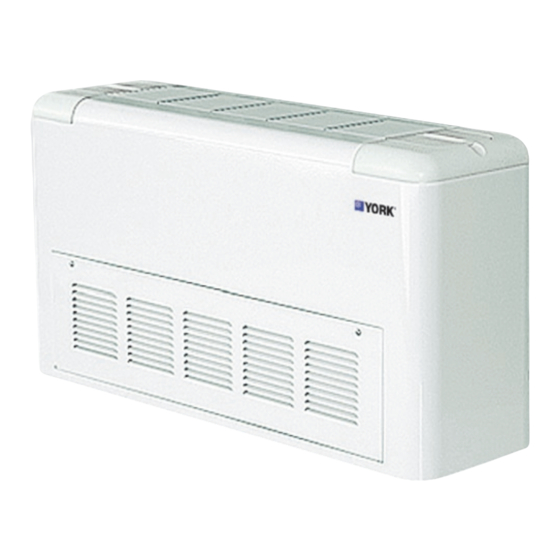

Fan coil unit low body (2 & 4 pipe system)
Hide thumbs

Advertisement

Quick Links

Features
• 6 speed fan
• Cabinet factory fitted
• Valve factory fitted
• Electrical heater factory fitted
• Thermal or modulating valve
• Service valve
Fan Coil Unit
LOW BODY
A complete range from 0.8 kW up to 2.7 kW
Technical features
Model
Cooling capacity (1) 2 rows
W
Cooling capacity (1) 3 rows
W
Heating capacity (2) 1 row
W
Pressure drop (3)
kPa
Power supply
V/Ph/Hz
Sound power level (3)
dB(A)
Sound pressure level at 3 m
dB(A)
Water connections
inch
Dimensions indicated next page
(1) Cooling capacities based on 7ºC EWT ∆t 5ºC indoor temperature 27ºC DB / 19ºC WB - (2 pipes - high speed fan)
(2) Heating capacities based on 70ºC EWT ∆t 10ºC indoor temperature 20ºC - (2 pipes - high speed fan)
(3) In cooling mode 2 rows
For other conditions contact York international
(2 & 4 pipe system)
110
112
832
1054
913
1266
1167
1691
7
1.7
49
50
31
32
Thermostats
CSL00 (Built in)
CSR00 (Wall mounted)
Fan speed selector
CML00 (Built in)
CMR00 (Wall mounted)
Thermostat with manual fan speed and S/W
change over
CEL00 (Built in)
CER00 (Wall mounted)
Thermostat with manual fan speed and automatic
change over
CEL20 (Built in)
CER20 (Wall mounted)
Thermostat with auto. fan speed and automatic
change over
CEL30 (Built in)
CER30 (Wall mounted)
Thermostat with auto. fan speed and automatic
change over for modulating valve
YLVR - YLIVR
114
216
1493
2041
1790
2327
2319
3029
3.8
9
230 / 1 / 50 + E
53
53
35
35
1/2 "
Selection
software
218
2356
2714
3552
11.7
55
37
