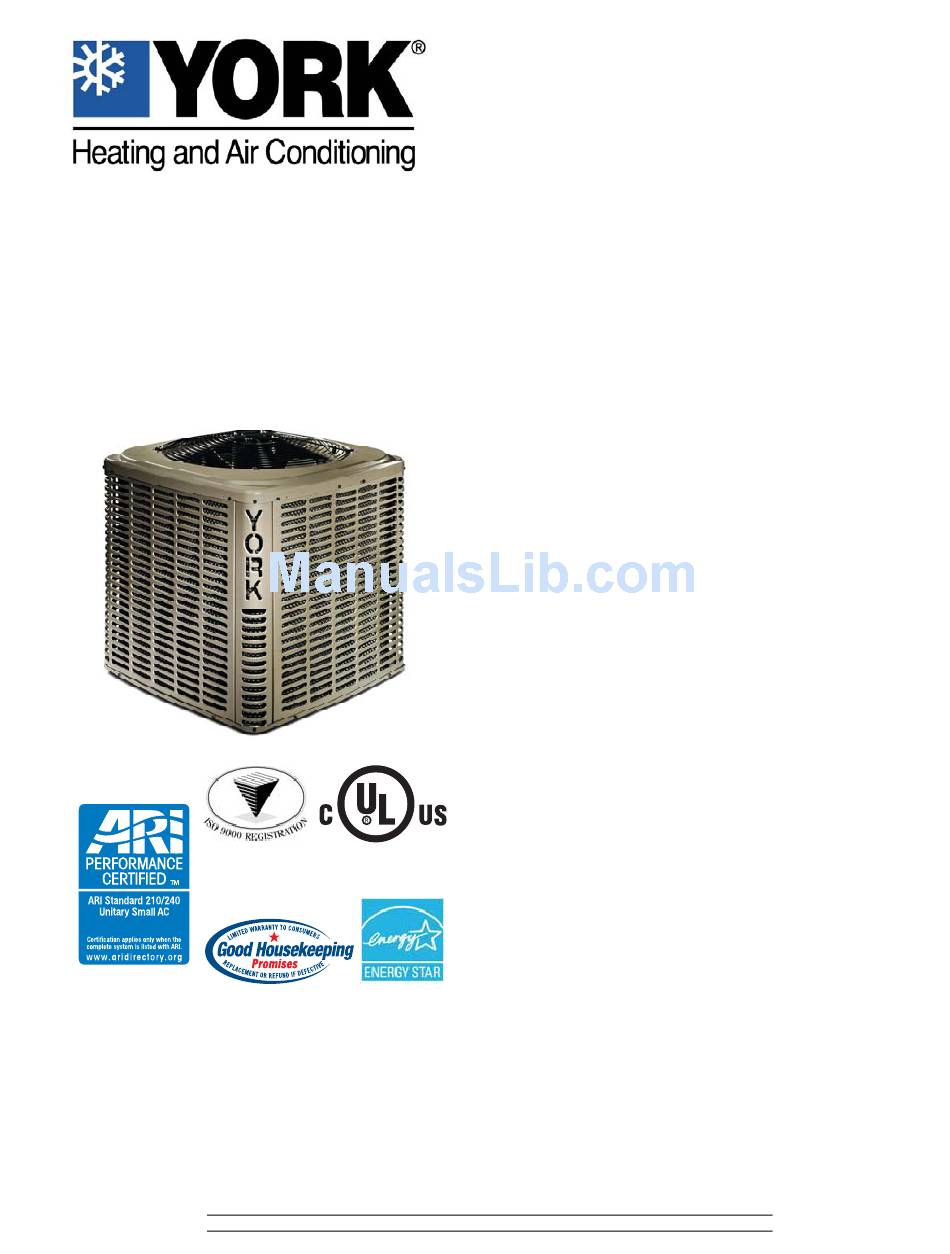

TECHNICAL GUIDE
SPLIT-SYSTEM
AIR CONDITIONERS
14.5 SEER – R-410A
MODELS:
YCJF24 THRU 60
(2 THRU 5 NOMINAL TONS, 1 PHASE)
Certified Quality
Management System
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at www.york.com
Additional rating information can be found at
www.ahridirectory.org
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
LISTED
ISO 9001

DESCRIPTION

The 14.5 SEER Series condensing unit is the outdoor part of a
versatile system of air conditioning. It is designed to be custom-
matched with one of UPG's complete line of evaporator sec-
tions, with each serving a specific function. Matching Air Han-
dlers are available for upflow, downflow, or horizontal
applications to provide a complete system. Electric Heaters are
available, if required. Add-on coils are available for use with
upflow, downflow, or horizontal furnaces and air handlers.
WARRANTY
Single Phase Units:
5-year limited parts warranty.
10-year limited compressor warranty.

FEATURES

• QUALITY CONDENSER COILS - The coil is constructed of
aluminum microchannel tubing and enhanced aluminum fins
for increased efficiency and corrosion protection.
• PROTECTED COMPRESSOR - The compressor is inter-
nally protected against high pressure and temperature and
externally by a factory installed high pressure switch. This
protects the compressor if undesirable operating conditions
occur. A liquid line filter-drier further protects the compressor.
• DURABLE FINISH - The cabinet is made of pre-painted
steel. The pre-treated galvanized steel provides a better
paint to steel bond, which resists corrosion and rust creep.
Special primer formulas and matted-textured finish insure
less fading when exposed to sunlight.
• LOWER INSTALLED COST - Installation time and costs are
reduced by easy power and control wiring connections.
Available in sweat connect models only. The unit contains
enough refrigerant for matching indoor coils and 15 feet of
interconnecting piping. The small base dimension means
less space is required on the ground or roof.
• TOP DISCHARGE - The warm air from the top mounted fan
is blown up away from the structure and any landscaping.
This allows compact location on multi-unit applications.
• LOW OPERATING SOUND LEVEL - The upward air flow
carries the normal operating noise away from the living area.
The rigid top panel effectively isolates any motor sound. Iso-
lated compressor mounts minimize compressor operating
sounds. Additional sound attenuation is provided by a swept-
wing fan blade and compressor blanket.
• LOW MAINTENANCE - Long life permanently lubricated
motor-bearings need no annual servicing.
• EASY SERVICE ACCESS - Fully exposed refrigerant con-
nections, and a single panel covering the electrical controls
make for easy servicing of the unit.
• SECURED SERVICE VALVES - Secured re-usable service
valves are provided on both the liquid and vapor sweat con-
nections for ease of evacuating and charging.
• U.L. and C.U.L. listed - approved for outdoor application.
• Agency Listed - U.L. and C.U.L. listed - approved for out-
door application. The unit is certified in accordance with the
Unitary Small Equipment cerification program, which is
based on ARI Standard 210/240.
413437-YTG-C-0908

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YCJF24 and is the answer not in the manual?

Questions and answers

Summary of Contents for York YCJF24

  • Page 1 Management System Due to continuous product improvement, specifications are subject to change without notice. Visit us on the web at www.york.com Additional rating information can be found at www.ahridirectory.org FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE DESCRIPTION The 14.5 SEER Series condensing unit is the outdoor part of a...
  • Page 2 413437-YTG-C-0908 Physical and Electrical Data MODEL YCJF24S41S1 Unit Supply Voltage Normal Voltage Range Minimum Circuit Ampacity Max. Overcurrent Device Amps Min. Overcurrent Device Amps Compressor Type Rated Load Compressor Amps Locked Rotor Crankcase Heater Fan Motor Amps Rated Load Fan Diameter Inches Rated HP Fan Motor Nominal RPM...
  • Page 3 Additional R-410A Charge / Orifice Size for Various Matched Systems Outdoor Unit YCJF24S41S1 1TVM(902/4F1) Required Orifice or TXV Factory Charge, lbs-oz 3 - 2 2,3,4 Indoor Coil FC/MC/PC24A3X FC/MC/PC24B3X FC/MC/PC30A3X FC/MC/PC30B3X FC/MC/PC32A3X FC/MC/PC35B3X FC/MC/PC35C3X FC/MC/PC36A3X FC/MC/PC36B3X FC/MC/PC36C3X FC/MC/PC37A3X FC/MC/PC43B3X FC/MC/PC43C3X FC/MC/PC48C3X FC/MC/PC48D3X FC/MC/PC60D3X...
  • Page 4 413437-YTG-C-0908 Additional R-410A Charge / Orifice Size for Various Matched Systems (Continued) Outdoor Unit YCJF24S41S1 1TVM(902/4F1) Required Orifice or TXV Factory Charge, lbs-oz 3 - 2 2,3,4 Indoor Coil F4FP024 See Caution below F4FP030 See Caution below – F4FP036 See Caution below –...
  • Page 5 COOLING CAPACITY - With Air Handler Coils AIR HANDLER UNIT MODEL MODEL MA08B MA08B YCJF24S41S1 MA08B MA08B MA08B MA12B MA12B YCJF30S41S1 MA12B MA12B MA12B MA12B YCJF36S41S1 MA12B MA14D MA16C MA14D MA16C YCJF42S41S1 MA14D MA16C MA14D MA16C MA20D YCJF48S41S1 MA16C MA20D MA20D YCJF60S41S1 MA20D...
  • Page 6 413437-YTG-C-0908 COOLING CAPACITY - With Air Handler Coils (Continued) AIR HANDLER UNIT MODEL MODEL MV16C MV16C YCJF42S41S1 MV20D MV20D MV20D MV16C MV20D YCJF48S41S1 MV20D MV20D MV20D YCJF60S41S1 MV20D AV24 YCJF24S41S1 AV36 YCJF30S41S1 AV36 AV36 YCJF36S41S1 AV/SV48 F4FV060 AV/SV48 YCJF42S41S1 AV/SV60 F4FV060 AV/SV48 YCJF48S41S1...
  • Page 7 COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils FURNACE** UNIT MODEL CFM RANGE (Min.-max.) 600 - 1000 600 - 1000 600 - 1000 600 - 1000 600 - 1000 600 - 1000 600 - 1000 600 - 1000 YCJF24S41S1 600 - 1000 600 - 1000...
  • Page 8 413437-YTG-C-0908 COOLING CAPACITY - YCJF24S41S1 With Variable Speed Furnaces VARIABLE SPEED COIL FURNACE MODEL MODEL PV8*A12 FC/MC/PC24A PV9*A12 FC/MC/PC24A P(C,V)9*B12 FC/MC/PC24B PV8*A12 FC/MC/PC30A PV9*A12 FC/MC/PC30A P(C,V)9*B12 FC/MC/PC30B PV8*A12 FC/MC/PC32A PV9*A12 FC/MC/PC32A P(C,V)9*B12 FC/MC/PC35B P(C,V)9*C16 FC/MC/PC35C PV8*A12 FC/MC/PC36A PV9*A12 FC/MC/PC36A P(C,V)9*B12 FC/MC/PC36B P(C,V)9*C16 FC/MC/PC36C...
  • Page 9 COOLING CAPACITY - YCJF24S41S1 With Variable Speed Furnaces (Continued) VARIABLE SPEED COIL FURNACE MODEL MODEL Y*9C*B12 FC/MC/PC43B Y*(8,L)C*A12 HC30 Y*(8,L)C*B12 HC36 Y*9C*B12 HC36 Y*(8,L)C*A12 HD36 Y*(8,L)C*B12 HD36 Y*(8,L)C*C16 HD36 Y*(8,L)C*C20 HD36 Y*9C*B12 HD36 Y*9C*C16 HD36 Y*9C*C20 HD36 Y*(8,L)C*A12 UC24A Y*(8,L)C*B12 UC24B Y*9C*B12 UC24B...
  • Page 10 413437-YTG-C-0908 COOLING CAPACITY - YCJF30S41S1 With Variable Speed Furnaces VARIABLE SPEED COIL FURNACE MODEL MODEL PV8*A12 FC/MC/PC30A PV8*B16 FC/MC/PC30B PV9*A12 FC/MC/PC30A P(C,V)9*B12 FC/MC/PC30B PV8*A12 FC/MC/PC32A PV9*A12 FC/MC/PC32A PV8*B16 FC/MC/PC35B PV8*C16 FC/MC/PC35C PV8*C20 FC/MC/PC35C P(C,V)9*B12 FC/MC/PC35B P(C,V)9*C16 FC/MC/PC35C P(C,V)9*C20 FC/MC/PC35C PV8*A12 FC/MC/PC36A PV8*B16 FC/MC/PC36B...
  • Page 11 COOLING CAPACITY - YCJF30S41S1 With Variable Speed Furnaces (Continued) VARIABLE SPEED COIL FURNACE MODEL MODEL PV8*A12 UC30A PV8*B16 UC30B PV9*A12 UC30A Y*(8,L)C*A12 FC/MC/PC30A Y*(8,L)C*B12 FC/MC/PC30B Y*9C*B12 FC/MC/PC30B Y*(8,L)C*A12 FC/MC/PC32A Y*(8,L)C*B12 FC/MC/PC35B Y*9C*B12 FC/MC/PC35B Y*(8,L)C*C16 FC/MC/PC35C Y*(8,L)C*C20 FC/MC/PC35C Y*9C*C16 FC/MC/PC35C Y*9C*C20 FC/MC/PC35C Y*(8,L)C*A12 FC/MC/PC36A...
  • Page 12 413437-YTG-C-0908 COOLING CAPACITY - YCJF30S41S1 With Variable Speed Furnaces (Continued) VARIABLE SPEED COIL FURNACE MODEL MODEL G*9V*C16 FC/MC/PC35C G*9V*C20 FC/MC/PC35C G*9V*A12 FC/MC/PC36A G*9V*B12 FC/MC/PC36B G*9V*C16 FC/MC/PC36C G*9V*C20 FC/MC/PC36C G*9V*A12 FC/MC/PC37A G*9V*B12 FC/MC/PC43B G*9V*C16 FC/MC/PC43C G*9V*C20 FC/MC/PC43C G*9V*C16 FC/MC/PC48C G*9V*C20 FC/MC/PC48C G*9V*D20 FC/MC/PC48D G*9V*B12...
  • Page 13 COOLING CAPACITY - YCJF36S41S1 With Variable Speed Furnaces (Continued) VARIABLE SPEED COIL FURNACE MODEL MODEL PV8*C16 FC/MC/PC48C PV8*C20 FC/MC/PC48C P(C,V)9*C16 FC/MC/PC48C P(C,V)9*C20 FC/MC/PC48C P(C,V)9*D20 FC/MC/PC48D PV8*B16 HC36B P(C,V)9*B12 HC36B PV8*C16 HC42C PV8*C20 HC42C P(C,V)9*C16 HC42C P(C,V)9*C20 HC42C PV8*C16 HD48 PV8*C20 HD48 P(C,V)9*C16 HD48...
  • Page 14 413437-YTG-C-0908 COOLING CAPACITY - YCJF36S41S1 With Variable Speed Furnaces (Continued) VARIABLE SPEED COIL FURNACE MODEL MODEL Y*(8,L)C*C16 FC/PC60C Y*(8,L)C*C20 FC/PC60C Y*9C*C16 FC/PC60C Y*9C*C20 FC/PC60C Y*(8,L)C*C16 HC42 Y*(8,L)C*C20 HC42 Y*9C*C16 HC42 Y*9C*C20 HC42 Y*(8,L)C*B12 HD48 Y*(8,L)C*C16 HD48 Y*(8,L)C*C20 HD48 Y*9C*B12 HD48 Y*9C*C16 HD48 Y*9C*C20...
  • Page 15 COOLING CAPACITY - YCJF42S41S1 With Variable Speed Furnaces VARIABLE SPEED COIL FURNACE MODEL MODEL PV8*B16 FC/MC/PC43B PV8*C20 FC/MC/PC43C P(C,V)9*C16 FC/MC/PC43C P(C,V)9*C20 FC/MC/PC43C PV8*C16 FC/MC/PC48C PV8*C20 FC/MC/PC48C P(C,V)9*C16 FC/MC/PC48C P(C,V)9*C20 FC/MC/PC48C P(C,V)9*D20 FC/MC/PC48D PV8*C16 FC/MC/PC60C PV8*C20 FC/MC/PC60C P(C,V)9*C16 FC/MC/PC60C P(C,V)9*C20 FC/MC/PC60C P(C,V)9*D20 FC/MC/PC60D PV8*C16...
  • Page 16 413437-YTG-C-0908 COOLING CAPACITY - YCJF42S41S1 With Variable Speed Furnaces (Continued) VARIABLE SPEED COIL FURNACE MODEL MODEL Y*(8,L)C*B12 HD48 Y*(8,L)C*C16 HD48 Y*(8,L)C*C20 HD48 Y*9C*B12 HD48 Y*9C*C16 HD48 Y*9C*C20 HD48 Y*9C*D20 HD48 Y*(8,L)C*C16 HD60 Y*(8,L)C*C20 HD60 Y*9C*C16 HD60 Y*9C*C20 HD60 Y*9C*D20 HD60 Y*(8,L)C*C16 UC48C Y*(8,L)C*C20...
  • Page 17 COOLING CAPACITY - YCJF48S41S1 With Variable Speed Furnaces VARIABLE SPEED COIL FURNACE MODEL MODEL PV8*C16 FC/MC/PC48C PV8*C20 FC/MC/PC48C P(C,V)9*C16 FC/MC/PC48C P(C,V)9*C20 FC/MC/PC48C PV8*C16 FC/MC/PC60C PV8*C20 FC/MC/PC60C P(C,V)9*C16 FC/MC/PC60C P(C,V)9*C20 FC/MC/PC60C P(C,V)9*D20 FC/MC/PC60D PV8*C16 HD48 PV8*C20 HD48 P(C,V)9*C16 HD48 P(C,V)9*C20 HD48 P(C,V)9*D20 HD48 PV8*C16...
  • Page 18 413437-YTG-C-0908 COOLING CAPACITY - YCJF48S41S1 With Variable Speed Furnaces (Continued) VARIABLE SPEED COIL FURNACE MODEL MODEL G*9V*C20 FC/PC60C G*9V*D20 FC/MC/PC60D G*9V*C20 FC/MC62D G*9V*D20 FC/MC62D G*9V*D20 HC60 G*9V*C16 HD48 G*9V*C20 HD48 G*9V*D20 HD48 G*9V*C16 HD60 G*9V*C20 HD60 G*9V*D20 HD60 1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number. 2.
  • Page 19: Sound Power Ratings

    ACCESSORIES Refer to Price Manual for specific model numbers. OFF CYCLE TIMER DELAY - Provides a 5-minute off cycle to prevent rapid recycling of the compressor. ROOM THERMOSTATS - A wide selection of compatible ther- mosets are available to provide optimum performance and fea- tures for any installation.
  • Page 20 413437-YTG-C-0908 COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. YCJF24S41S1 INDOOR COIL MODEL NO. FC/MC/PC32 IDCFM CONDENSING ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM. Multipliers for determining the performance with other indoor sections.
  • Page 21 Variable Speed Coil Furnace PV8*A12 FC/MC/PC24A PV9*A12 FC/MC/PC24A P(C,V)9*B12 FC/MC/PC24B PV8*A12 FC/MC/PC30A PV9*A12 FC/MC/PC30A P(C,V)9*B12 FC/MC/PC30B PV8*A12 FC/MC/PC32A PV9*A12 FC/MC/PC32A P(C,V)9*B12 FC/MC/PC35B P(C,V)9*C16 FC/MC/PC35C PV8*A12 FC/MC/PC36A PV9*A12 FC/MC/PC36A P(C,V)9*B12 FC/MC/PC36B P(C,V)9*C16 FC/MC/PC36C PV8*A12 FC/MC/PC37A PV9*A12 FC/MC/PC37A P(C,V)9*B12 FC/MC/PC43B P(C,V)9*C16 FC/MC/PC43C P(C,V)9*C16 FC/MC/PC48C PV8*A12...
  • Page 22 413437-YTG-C-0908 COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. YCJF30S41S1 INDOOR COIL MODEL NO. FC/MC/PC43 IDCFM CONDENSING ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM. Multipliers for determining the performance with other indoor sections.
  • Page 23 Variable Speed Coil Furnace P(C,V)9*C20 FC/MC/PC36C PV8*A12 FC/MC/PC37A PV9*A12 FC/MC/PC37A PV8*B16 FC/MC/PC43B PV8*C16 FC/MC/PC43C PV8*C20 FC/MC/PC43C P(C,V)9*B12 FC/MC/PC43B P(C,V)9*C16 FC/MC/PC43C P(C,V)9*C20 FC/MC/PC43C PV8*C16 FC/MC/PC48C PV8*C20 FC/MC/PC48C P(C,V)9*C16 FC/MC/PC48C P(C,V)9*C20 FC/MC/PC48C P(C,V)9*D20 FC/MC/PC48D PV9*A12 HC30A PV8*B16 HC36B P(C,V)9*B12 HC36B PV8*C16 HC42C PV8*C20 HC42C P(C,V)9*C16...
  • Page 24 413437-YTG-C-0908 COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. YCJF36S41S1 INDOOR COIL MODEL NO. FC/MC/PC43 IDCFM CONDENSING ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM. Multipliers for determining the performance with other indoor sections.
  • Page 25 Variable Speed Coil Furnace PV8*B16 FC/MC/PC35B PV8*C16 FC/MC/PC35C PV8*C20 FC/MC/PC35C P(C,V)9*B12 FC/MC/PC35B P(C,V)9*C16 FC/MC/PC35C P(C,V)9*C20 FC/MC/PC35C PV8*A12 FC/MC/PC36A PV8*B16 FC/MC/PC36B PV8*C16 FC/MC/PC36C PV8*C20 FC/MC/PC36C PV9*A12 FC/MC/PC36A P(C,V)9*B12 FC/MC/PC36B P(C,V)9*C16 FC/MC/PC36C P(C,V)9*C20 FC/MC/PC36C PV8*A12 FC/MC/PC37A PV9*A12 FC/MC/PC37A PV8*B16 FC/MC/PC43B PV8*C16 FC/MC/PC43C PV8*C20 FC/MC/PC43C P(C,V)9*B12...
  • Page 26 413437-YTG-C-0908 COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. YCJF42S41S1 INDOOR COIL MODEL NO. FC/MC/PC48 IDCFM CONDENSING ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM. Multipliers for determining the performance with other indoor sections.
  • Page 27 Variable Speed Coil Furnace PV8*B16 FC/MC/PC43B PV8*C20 FC/MC/PC43C P(C,V)9*C16 FC/MC/PC43C P(C,V)9*C20 FC/MC/PC43C PV8*C16 FC/MC/PC48C PV8*C20 FC/MC/PC48C P(C,V)9*C16 FC/MC/PC48C P(C,V)9*C20 FC/MC/PC48C P(C,V)9*D20 FC/MC/PC48D PV8*C16 FC/MC/PC60C PV8*C20 FC/MC/PC60C P(C,V)9*C16 FC/MC/PC60C P(C,V)9*C20 FC/MC/PC60C P(C,V)9*D20 FC/MC/PC60D PV8*C16 HC42C PV8*C20 HC42C P(C,V)9*C16 HC42C P(C,V)9*C20 HC42C P(C,V)9*D20 HC60D PV8*C16...
  • Page 28 413437-YTG-C-0908 COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. YCJF48S41S1 INDOOR COIL MODEL NO. FC/MC/PC60 IDCFM CONDENSING ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM. Multipliers for determining the performance with other indoor sections.
  • Page 29 Variable Speed Coil Furnace PV8*C16 FC/MC/PC48C PV8*C20 FC/MC/PC48C P(C,V)9*C16 FC/MC/PC48C P(C,V)9*C20 FC/MC/PC48C PV8*C16 FC/MC/PC60C PV8*C20 FC/MC/PC60C P(C,V)9*C16 FC/MC/PC60C P(C,V)9*C20 FC/MC/PC60C P(C,V)9*D20 FC/MC/PC60D PV8*C16 HD48 PV8*C20 HD48 P(C,V)9*C16 HD48 P(C,V)9*C20 HD48 P(C,V)9*D20 HD48 PV8*C16 HD60 PV8*C20 HD60 P(C,V)9*C16 HD60 P(C,V)9*C20 HD60 P(C,V)9*D20 HD60 PV8*C20...
  • Page 30 0.98 P(C,V)9*C20 P(C,V)9*D20 Y*(8,L)C*C20 Y*9C*C20 Y*9C*D20 Y*9C*D20 Y*(8,L)C*C20 Y*9C*C20 Y*9C*D20 G*9V*C20 G*9V*D20 G*9V*D20 G*9V*C20 G*9V*D20 Johnson Controls Unitary Products 5005 York Drive Norman, OK 73069 1600 1800 58.5 64.7 69.7 56.1 60.4 60.2 43.1 42.9 34.1 58.5 55.7 45.3 56.1 62.1...
