York Sunline 2000 Installation Instruction

INSTALLATION INSTRUCTION

GENERAL

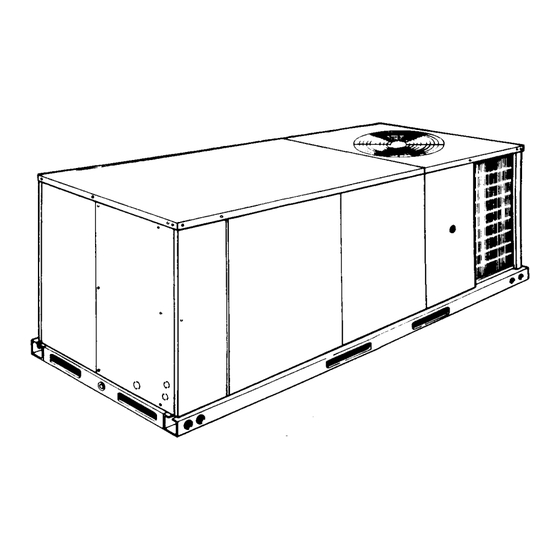

YORK Model BCH units are single package heat pumps
designed for outdoor installation on a rooftop or a slab.
Supplemental electric heaters are available as field-installed
accessories.
The units are completely assembled on rigid, permanently
attached base rails. All piping, refrigerant charge, and electrical
wiring is factory-installed and tested. The units require only
electric power and duct connections at the point of installation.
The supplemental electric heaters have nickel-chrome
elements and utilize single point power connection.

INSPECTION

As soon as a unit is received, it should be inspected for possible
damage during transit. If damage is evident, the extent of the
damage should be noted on the carrier's freight bill. A separate
request for inspection by the carrier's agent should be made in
writing. Refer to Form 50.15-NM for additional information.

REFERENCE

Additional information on the design, installation, operation and
service of this equipment is available in the following reference
forms:
55.70-N1
55.70-N2
530.18-N1.2V
530.18-N1.13V -Man. Outdoor Air Damper Accy 0-35%
530.18-N1.14V -Man. Outdoor Air Damper Accy 0-100%
530.18-N1.12V -Motorized Outdoor Air Damper Accy.
530.18-N7.1V
530.18-N7.2V
Installer should pay particular attention to the words: NOTE, CAUTION and WARNING. Notes are intended to clarify or make
the installation easier. Cautions are given to prevent equipment damage. Warnings are given to alert installer that personal injury
and/or equipment damage may result if installation procedure is not handled properly.
Supersedes: 511.06-N5Y (1298)
MODELS B*CH 036 AND 048 (STYLE B)
AND MODELS B*CH 060A (STYLE A)
(10 SEER - w/Belt-Drive Option)
-General Installation
-Pre-start & Post-start Check List
-Economizer Accessory
-Electric Heater Accessory
-Fuse Block Accessory
SUNLINE 2000
SINGLE PACKAGE HEAT PUMPS
(* = 3 or 5)
Replacement Parts:
Refer to Parts Manual for complete listing of replacement
parts on this equipment.
All forms referenced in this instruction may be ordered from:
Standard Register
Norman, OK 73069
Toll Free: Tel. 877-318-9675/Fax. 877-379-7920
