York H*BE-F018 Technical Manual

TECHNICAL
TECHNICAL
GUIDE
GUIDE
SPLIT-SYSTEM
AIR CONDITIONERS
14 SEER – R-22
MODELS:
H*BE-F018 THRU 060
(1.5 THRU 5 NOMINAL TONS)
LISTED
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at www.york.com
Additional rating information can be found at
www.ahridirectory.org
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION

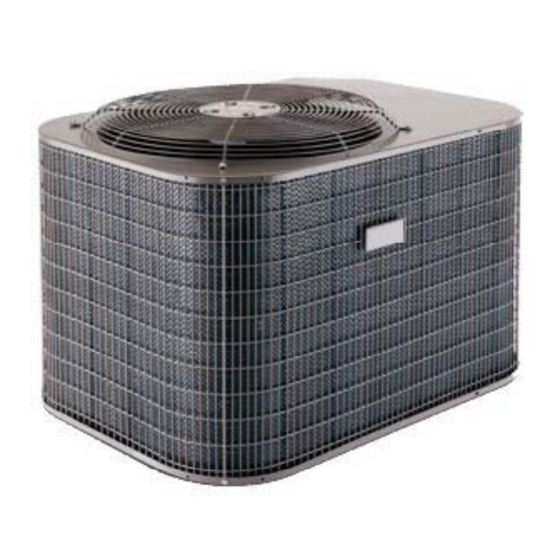

The 14 SEER Series condensing unit is the outdoor part of a
versatile system of air conditioning. It is designed to be cus-
tom-matched with one of UPG's complete line of evaporator
sections, with each serving a specific function. Matching Air
Handlers are available for upflow, downflow, or horizontal
applications to provide a complete system. Electric Heaters
are available, if required. Add-On coils are available for use
with upflow, downflow, or horizontal furnaces and air han-
dlers.
WARRANTY
5-year limited parts warranty.
10-year limited compressor warranty.
FEATURES
• QUALITY CONDENSER COILS - The coil is constructed
• PROTECTED COMPRESSOR - The compressor is inter-
• DURABLE FINISH - The cabinet is made of pre-painted
• LOWER INSTALLED COST - Installation time and costs
• TOP DISCHARGE - The warm air from the top mounted
• LOW OPERATING SOUND LEVEL - The upward air flow
ISO 9001
Certified Quality
Management System
• LOW MAINTENANCE - Long life permanently lubricated
• EASY SERVICE ACCESS - Fully exposed refrigerant con-
• SECURED SERVICE VALVES - Secured re-usable ser-
• U.L. and C.U.L. listed - approved for outdoor application.
Certified in accordance with the Unitary Small Equipment cer-
tification program, which is based on ARI Standard 210/240.
of copper tube and aluminum fins.
nally protected against high pressure and temperature.
This is accomplished by the simultaneous operation of
high pressure relief valve and a temperature sensor which
protects the compressor if undesirable operating condi-
tions occur. A liquid line filter-drier further protects the
compressor.
steel. The pre-treated galvanized steel provides a better
paint to steel bond, which resists corrosion and rust creep.
Special primer formulas and desert sand matted-textured
finish insure less fading when exposed to sunlight.
are reduced by easy power and control wiring connections.
Discharge line heat exchanger knockouts are provided, if
required. Available in sweat connect models only. The unit
contains enough refrigerant for matching indoor coils and
15 feet of interconnecting piping. The small base dimen-
sion means less space is required on the ground or roof.
fan is blown up away from the structure and any landscap-
ing. This allows compact location on multi-unit applica-
tions.
carries the normal operating noise away from the living
area. The rigid top panel effectively isolates any motor
sound. Isolator mounted compressor and the rippled fins of
the condenser coil muffle the normal fan motor and com-
pressor operating sounds.
motor-bearings need no annual servicing.
nections, a single panel covering the electrical controls,
and the molex plug in the control box connecting the con-
denser fan make for easy servicing of the unit.
vice valves are provided on both the liquid and vapor
sweat connections for ease of evacuating and charging.
332018-BTG-D-0208
